Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Paving Machinery > 8000L HOWO With Auxiliary Engine HGY5162 GLQ Bitumen Sprayer Truck

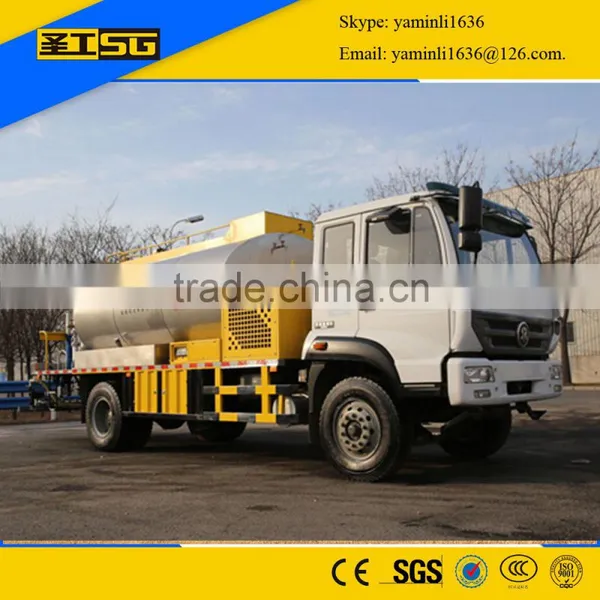

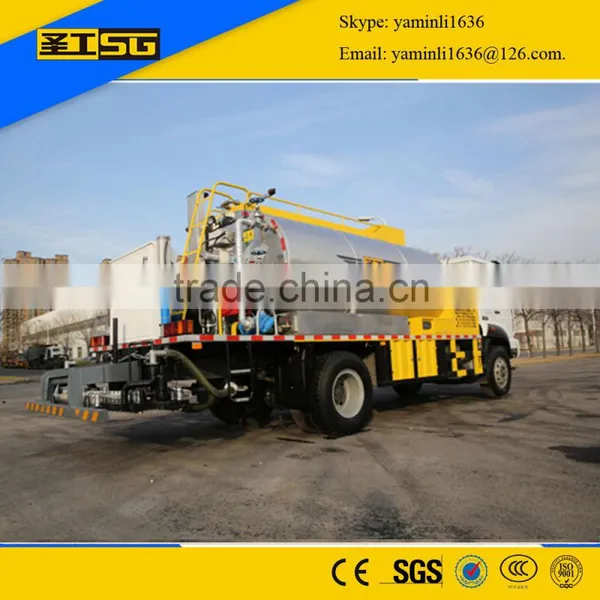

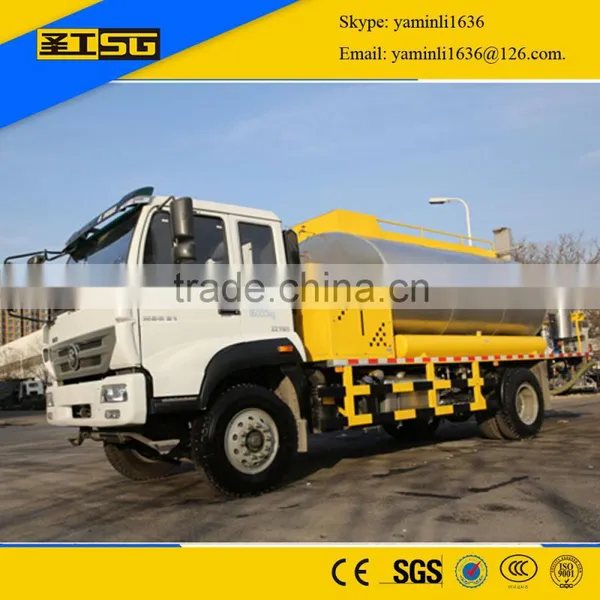

8000L HOWO With Auxiliary Engine HGY5162 GLQ Bitumen Sprayer Truck

Name: 8000L HOWO With Auxiliary Engine HGY5162 GLQ Bitumen Sprayer Truck
Brand: SHENGGONG
SKU: 114908699
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Production Capacity:

0.2-3.0 kg/㎡

Power(W):

151kw / 210hp

Henan Gaoyuan Road Maintenance Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI / TIANJIN

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Production Capacity 0.2-3.0 kg/㎡

Power(W) 151kw / 210hp

Paving Width 6000mm

Place of Origin Henan, China

Brand Name SHENGGONG

Model Number HGY5162GLQ

Dimension(L*W*H) 8970*2496*3350mm

Weight 16000 Kg

Certification SGS / ISO / CCC

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

Product Description

No.	Item	Unit	Parameters	Remarks
1	Product Name	-	Automatic Asphalt Distributor
2	Product Model	-	HGY5162GLQ
3	Internal Model	-	GYLS0860B
4	Chassis Model	-	ZZ1161H471GD1
5	Chassis Trademarks	-	SINOTRUCK
6	Chassis Name	-	M5G
7	Engine Model	-	MC05.21-40
8	Engine Power	kW(hp)	151(210)
9	Based on criteria	-	EURO IV
10	Wheelbase	mm	4700
11	Total weight	kg	16000
12	Auxiliary Engine	-	YCD4K12T
13	Auxiliary Engine Power	kW(hp)	37(50)
14	Asphalt tank volume	L	8000
15	Spray width	mm	6000
16	Spray volume	kg/m²	0.2-3
17	Spray precision	-	1.5%
18	Spray media	-	modified asphalt,hot asphalt,emulsified asphalt
19	Asphalt heating mode	-	Imported diesel oil
20	Asphalt heating speed	℃/h	12
21	Overall dimensions	mm	8970×2496×3350	LxWxH
