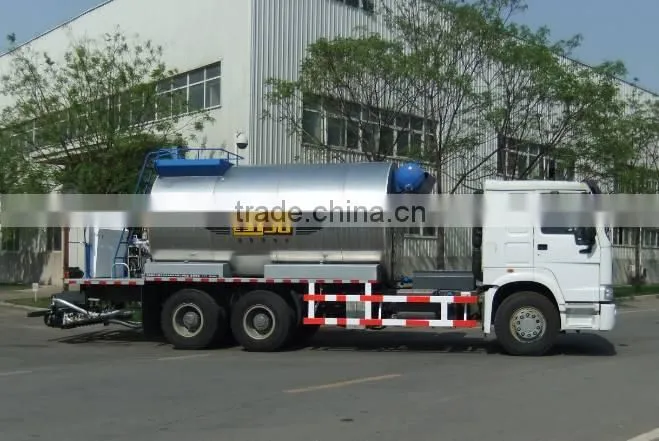

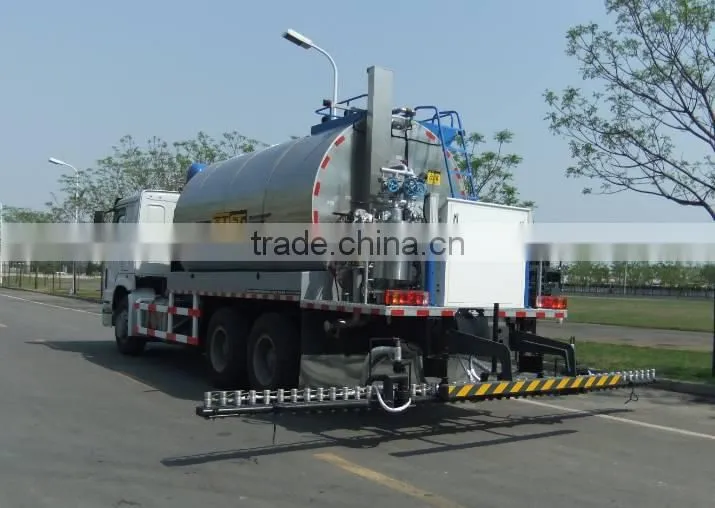

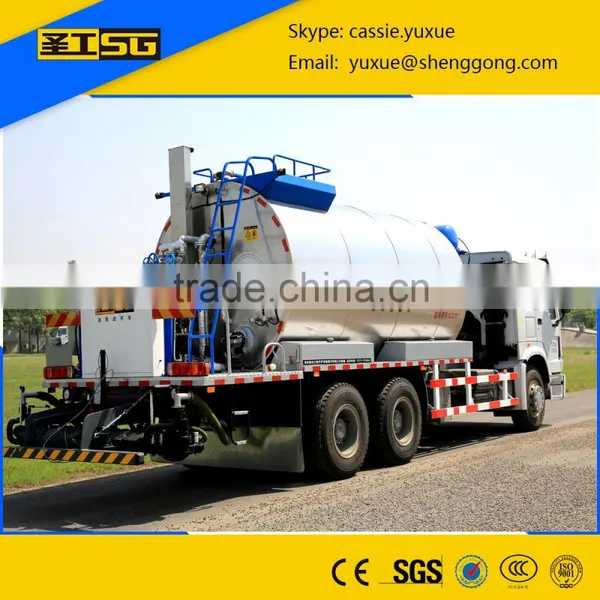

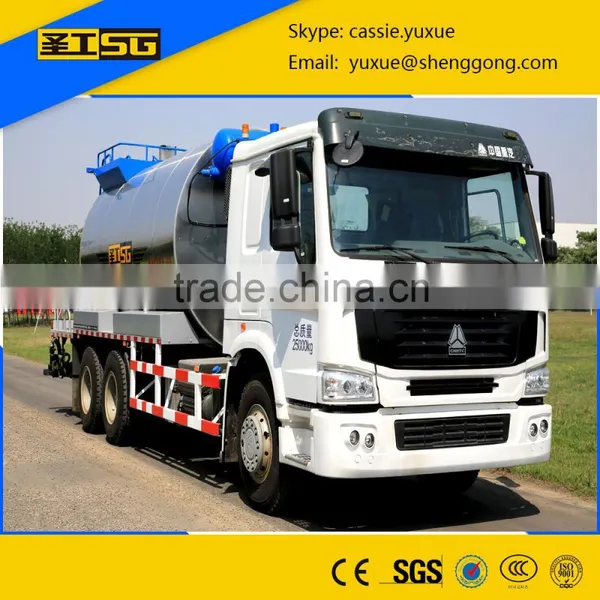

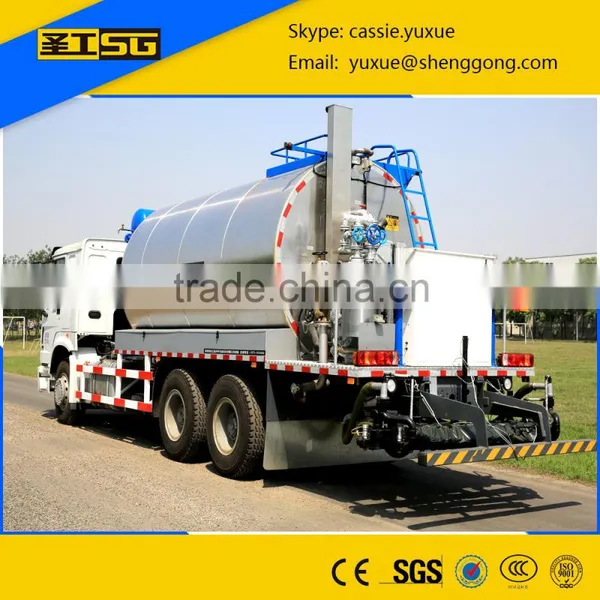

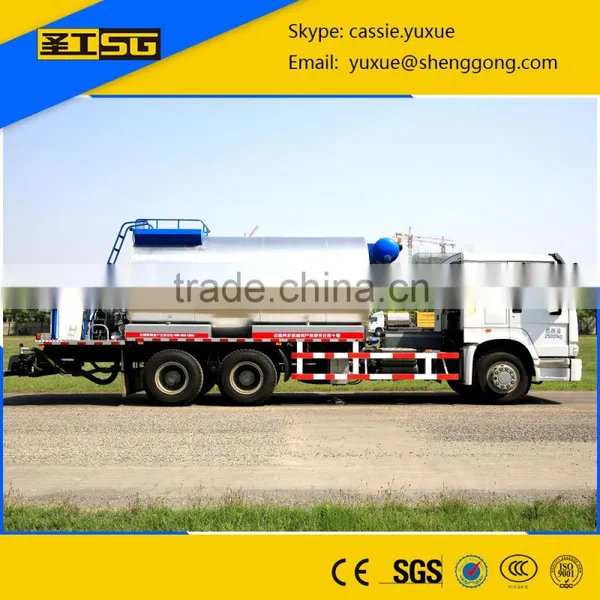

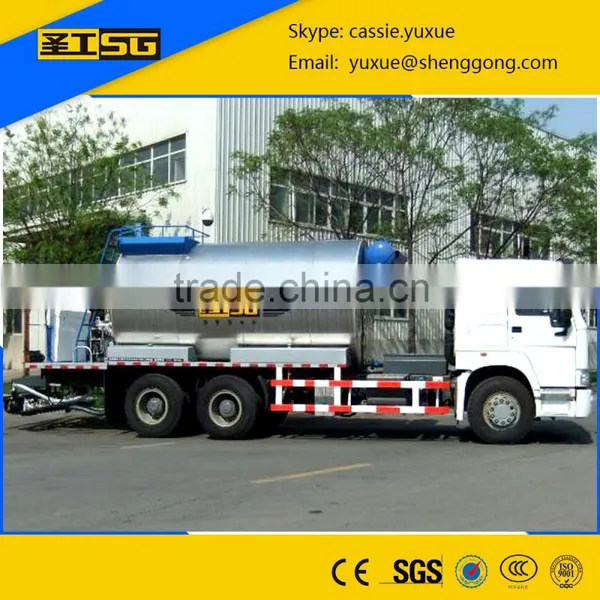

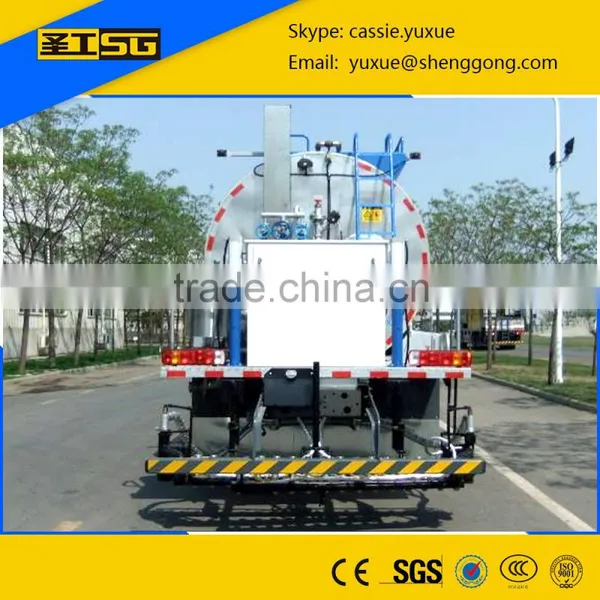

13000L Automatic Asphalt Distributor
HGY5255GLQ automatic asphalt distributor with Euro IV HOWO chassis is a kind of intelligent hi-tech product specialized in spraying emulsified asphalt, diluted asphalt, hot asphalt, heavy-duty asphalt and high viscous modified asphalt and so on.
1.Main technical parameters
Product Model: |
HGY5255GLQ |
Chassis Model: |
ZZ1257M4647D1 |
Spray width: |
200-6000mm |
Spray volume: |
0.2-3.0 kg/m2 |
Asphalt tank volume: |
13000L |
Asphalt heating mode: |
Imported diesel oil burner (calorific value 10×104kCal/h) |
Spray media: |
hot (modified) asphalt, diluted asphalt, emulsified asphalt, etc. |
Spray precision: |
±1.5% |
Total weight: |
25000kg |
Overall dimensions: |
L×W×H=10735×2496×3820(mm) |
2.Main configurations of Key Components
No. |
Item |
Brand |
Place of Origin |
Remarks |
1 |
Chassis |
HOWO |
China |
Euro IV |
2 |
Asphalt tank |
SG |
China |
100 mm insulation layer; stainless steel outer packing |
3 |
Steel flange globe valve |
Beifang |
China |
|
4 |
Asphalt valve bank |
SG |
China |
|
5 |
Touch Screen |
MCGS |
China |
|
6 |
Asphalt Pump |
Vikin or JOHNSON |
USA/Belgium |
|
7 |
Heat oil pump |
Vikin or JOHNSON |
USA/Belgium |
|
8 |
Asphalt pump motor |
iNi |
China |
|
9 |
Heat oil pump motor |
SAUER DANFOSS |
Demark |
|
10 |
Burner |
RIELLO |
Italy |
24V DC |
11 |
Speed measuring radar |
DICkEY-john |
USA |
|
12 |
PLC control system |
IDEC |
Japan |
|
13 |
Hydraulic servo pump |
SAUER DANFOSS |
USA |
|
14 |
Sealing elements |
DICHTOMATIK |
Germany |
|
15 |
Throttle valve |
Parker |
Germany |
|
16 |
Encoder |
Koyo |
China |
|
17 |
Cylinder |
Fsh |
China |
|
18 |
Air control assembly valve |
JPC |
China |
Germany Festo |
19 |
Air Treatment Components |
AIRTAC |
China |
|
3.Advantages
1. This equipment reduces the construction labor intensity, budgets and human resources, improves the work efficiency and work quality.
2. The machine is working very stable. The asphalt spray width can be adjusted flexibly.
3. Good anticorrosive and durable insulation layer makes sure the temperature drop no more than 12oC/8h.
4. Nozzles of high precision ensure the spray consistency and good results.
5. Humanized design of control system could not only control remotely, but also operate on site, which makes the operation more convenient.
6. With much engineering construction experience, we improve the equipment to make it more reliable in performance and more convenient in operation and maintenance.

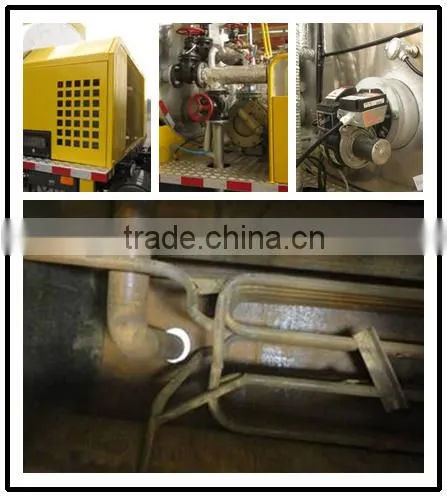

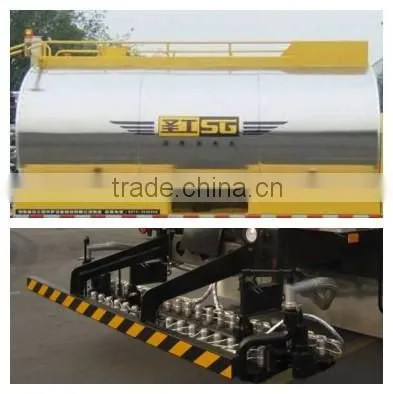

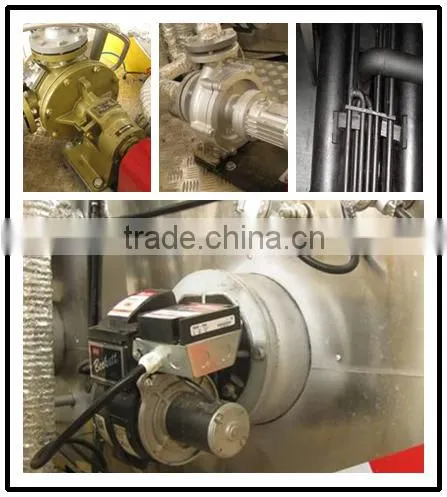

4.Product Details

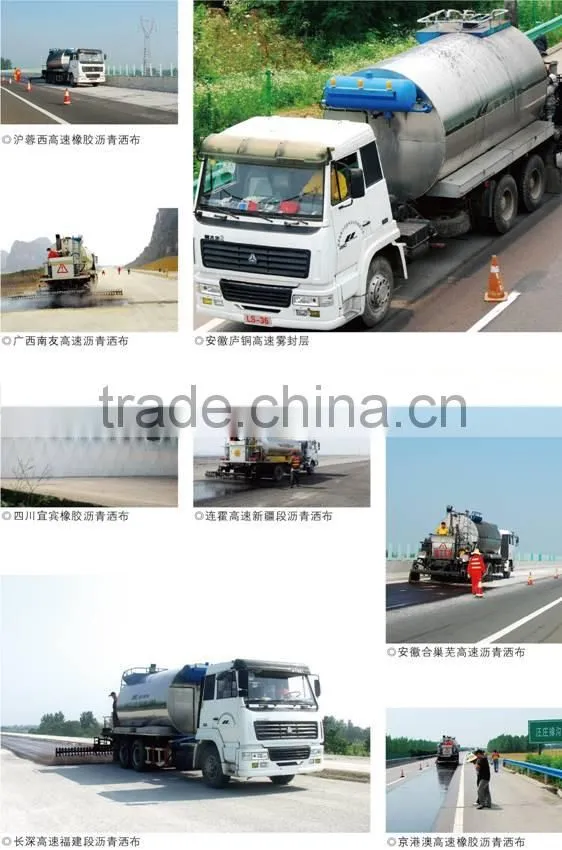

5.Projects
24hours service, welcome your inquiry and business visiting !
Professional and experienced technical service after sales !
Skype: cassie.yuxue

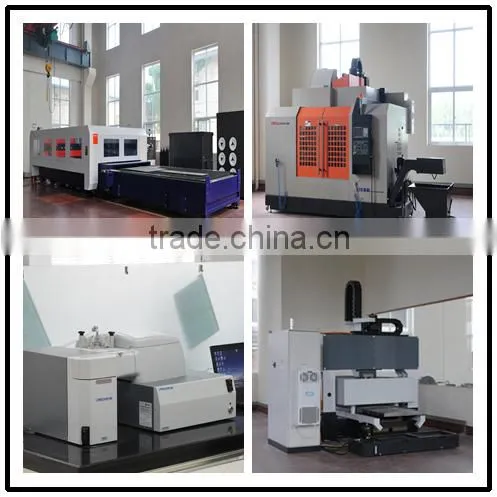

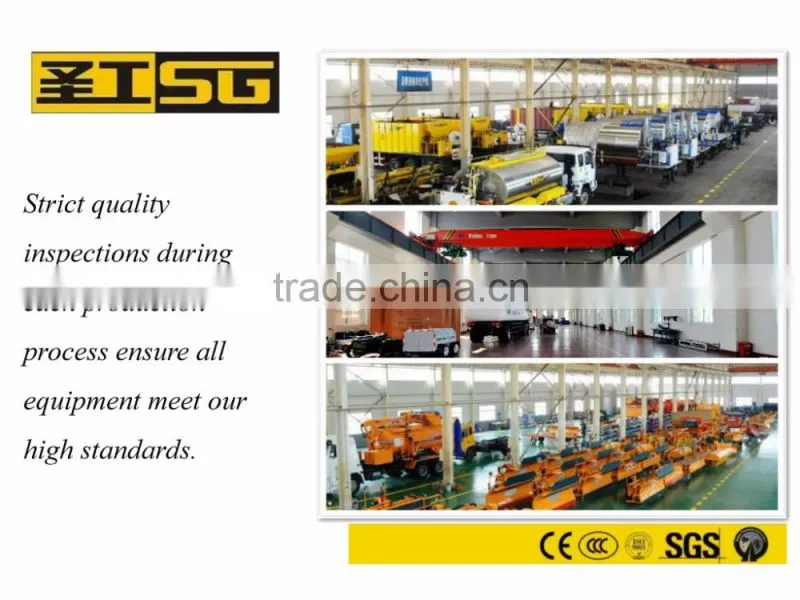

Henan Gaoyuan Road Maintenance Equipment Co., Ltd. was founded in 2004, and now is the TOP 3 companies in road maintenance equipment manufacturing industry of China.
We supply automatic asphalt distributor, synchronous chip sealer, fiber chip sealer, asphalt emulsion plant, intelligent asphalt rubber plant, intelligent micro surfacing paver (slurry paver), snow removal machines, municipal road management equipment and more to customers all over the world.

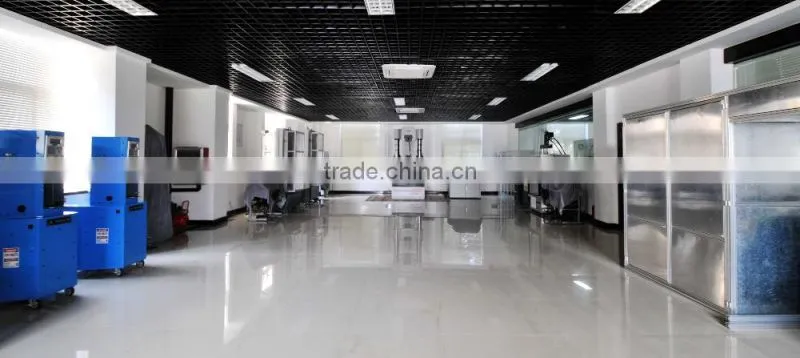

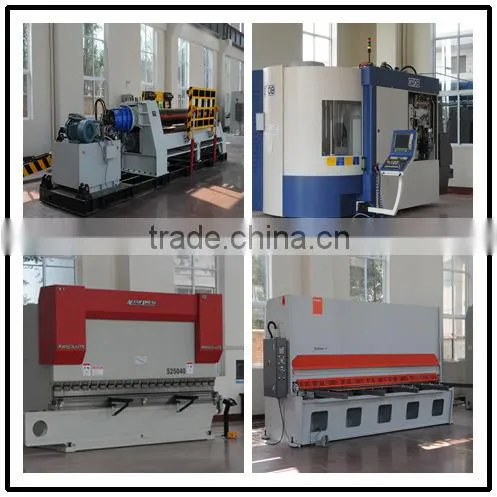

National High-way Maintenance Equipment Engineering Lab
In September 2012, the national development and reform commission approved the projectof National High-way Maintenance Equipment Engineering Lab. Two Lab buildings, a pilot workshop, the machine performance test site were built.By purchasing test equipment, test platform, multi-function integrated tester, It improved laboratory hardware advantage, strengthened personnel training and technology exchange, solved the technical bottleneck existed in road maintenance equipment.
Certification
Q1: What are the terms of payment.
A:Generally, L/C orT/T are used. that is 30% prepayent and 70% before shipping.
Q2: What about the warranty.
A;It would be for 12 months.
