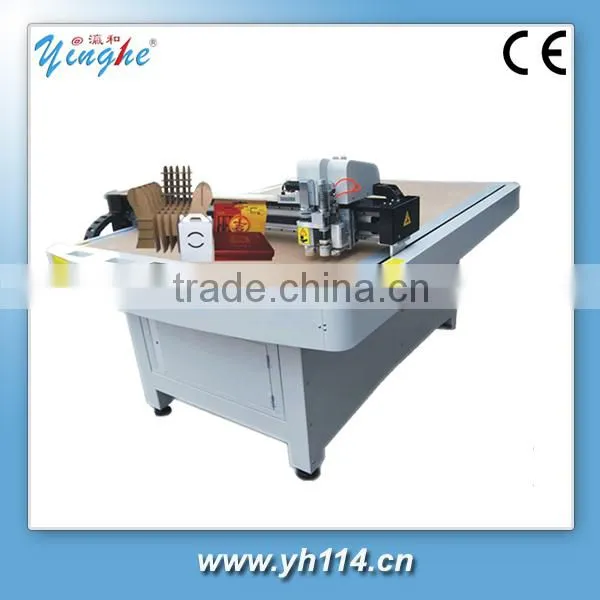

Help CenterLarge Multifun Creasing Machine for Creasing ,cutting ,drawing and Work on Different Materials Like Corrugated Paper, Gray
Related Products
-
Hot Sale in Guangzhou China Industial Machine Multi Head Quilting&embroidery MachineNegotiableMOQ: 1 Unit -
Large Cnc Router Engraving Marble, Granite, Stone, Arcylic, Wood, Glass and Other Hardness Material.NegotiableMOQ: 1 Unit
-
Best Sell Photo Mugs WholesaleNegotiableMOQ: 1 Unit
-
Cold Laminatiing Machine for Indoor Material for Printing Material for BannerNegotiableMOQ: 1 Unit
-
Flatbed Laminating Machine,flatbed Laminator,flatbed Hot and Cold Laminating MachineNegotiableMOQ: 1 Unit
Quick Details
- Place of Origin: China (Mainland)
- Brand Name: YINGHE
- Model Number: YH-1410
- GRADE: A
- CERTIFICATION: CE
- COLOR: WHITE
Packaging & Delivery
| Packaging Details: | standard exporting package |
|---|---|
| Delivery Detail: | 7 days |
Specifications
Panasonicservo motor, Germany original datas line,Corrugated materials,sponge and foam board,lvory cardboard etc thickness 15mm
Advantages of the machine:
1. The superior quality servo motor of this machine origins from Switzerland, whose revolving speed is up to 25000rpm
2. Panasonicservo motor is applied to the machine to command the Vibration of the cutter as well as the up and down of creasing wheel. With computerized conttrol,the depth of cutting and creasing is adjustable precisely according to your requirement.
3. The machine has three functional heads: creasing wheels with V-Cutter and high speed milling Router, vibration cutting head and drawing pen, they enable the machine to work on different materials like corrugated paper, gray board, white cardboard, plastic sheets, composite materials, textiles, leathers, foam board, sponge etc at the maximum cutting height of 15mm .
4. All data wires are Germany original.
5.The table is made of fiber board which is imported from USA. It's with good permeability, very Durable and stable.
6. Datas are transfered by Ethernet,the most stable way. Files can be conveyed to the machine directly through Adobe Illustrator,Coraldraw
7. Infared sensor is equipped to avoid any working accident. It's easy and safe to operate (for example, if we put our hand on the working area, the machine will automatically stop working.)
8. This machine can run at the maximum speed up to 1500mm per second.
English system if on your option
9. All fine tuning can be made on the control panel of the machine.

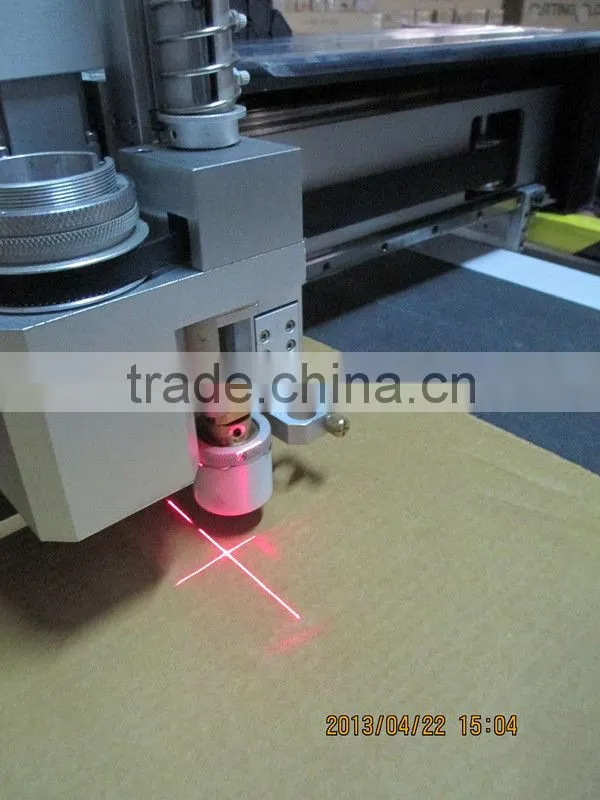

10. Infared laser lamp can position the well-printed carton then cut it fast and accurately
Other details of the machine:
| Technical information/model | YH-1410 | YH-1813 | YH-2516 |
| Operation properties | Computer operation and cutting machines can be used simultaneously for quick data transmission capable of continuous operations | ||
| Cutting speed | Max 1500mm/s | ||
| Cutting Thickness | 0.5-15mm | ||
| Cut materials | Corrugated materials,sponge and foam board,lvory cardboard, gray paper, corrugated paper,plastic sheets,composite materials and leather materials maximum cutting thickness at 15mm | ||
| Number of pens | 8 different groups of strokes,half blades,full blades and pressure wheel are equiped | ||
| Positioning device | infared positioning | ||
| Method for fixing paper | Vacuum absorption | ||
| Cutting tolerance | 0.2mm more or less | ||
| Repeat accuracy | no more than 0.05mm | ||
| Minimum circle | no less than 5mm diameter | ||
| Transmission interface | Ethernet port | ||
| Format compatible | Compatibility format AI software,Autocad,Coraldraw and all box software | ||
| Direcive system | HP-GL and GP-GL | ||

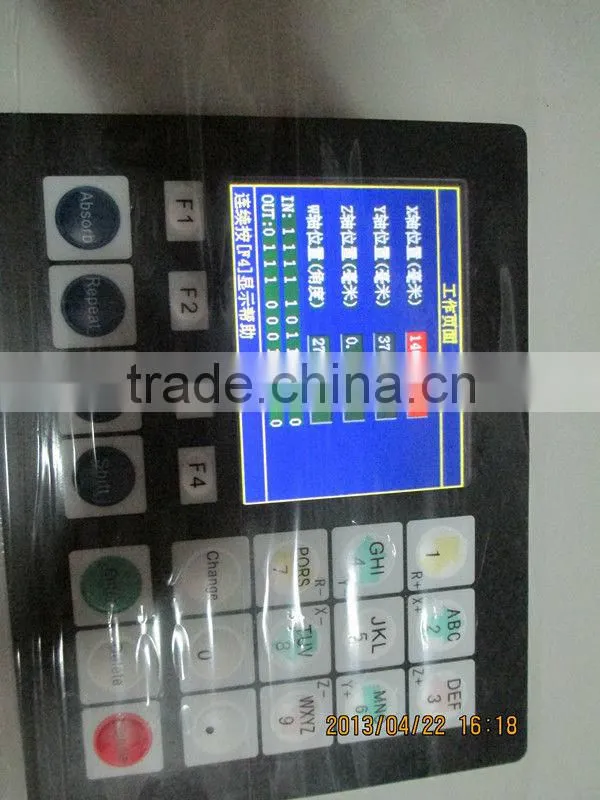

| Digital control panel | Liquid crystal display and touching button | ||
| Transmission materials | Linear guide rails and imported synchronous belts | ||
| Supply voltage | AC 220V 380V 10% more or less,50HZ | ||

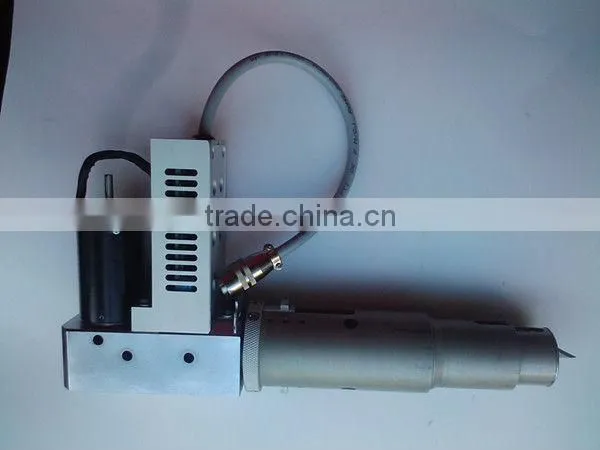

| Vibration blade | Vibration cutter head motor at highest speed up to 25000rpm | ||
| Cutting area | 1400mm*1000mm | 1800mm*1300mm | 2500mm*1600mm |
| Overall dimension | 2160*1680*1220mm | 2570*1990*1200mm | 3300*2250*1200mm |
Samples of the cutting and creasing machine:

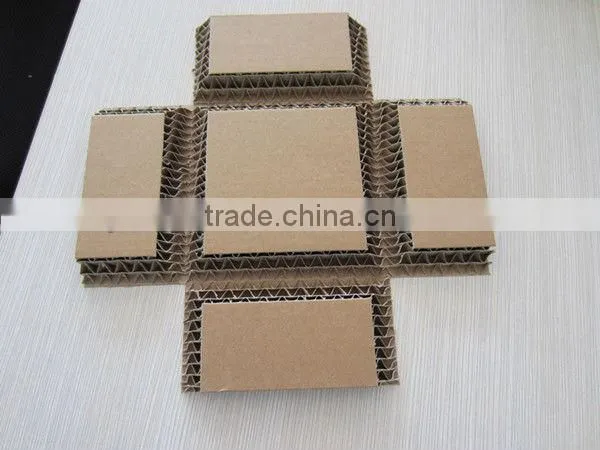

paper board

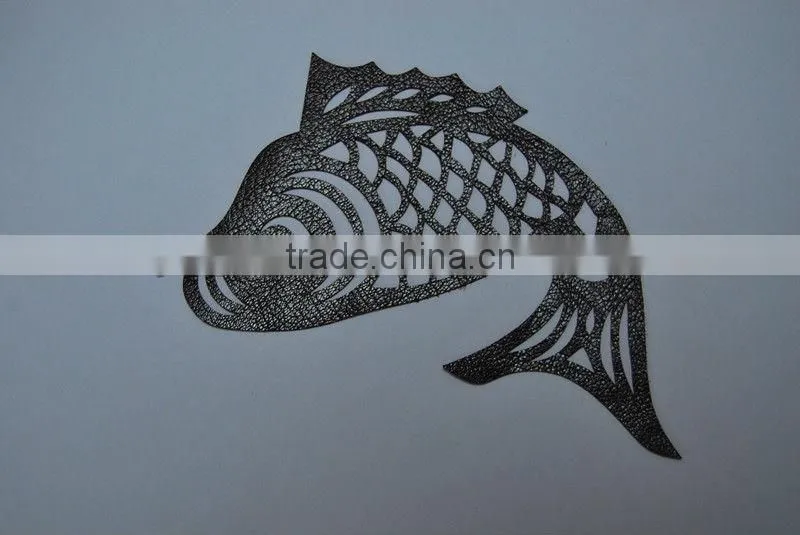

leather cutting

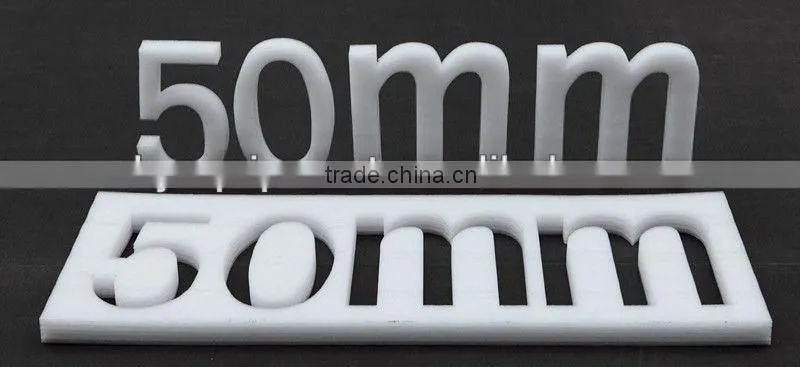

Sponge cutting

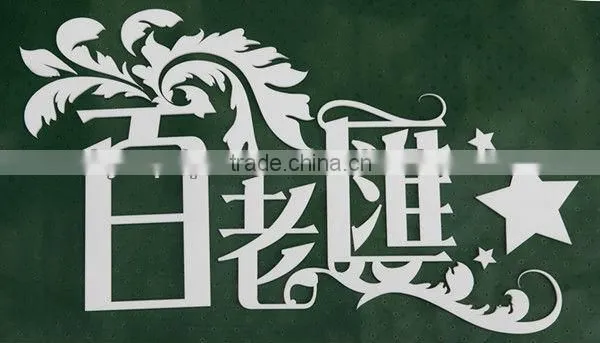

KT board cutting
This superialr quality cutting and creasing machine is compliable for many industry like gifts and event planing.
