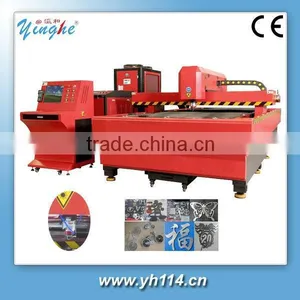

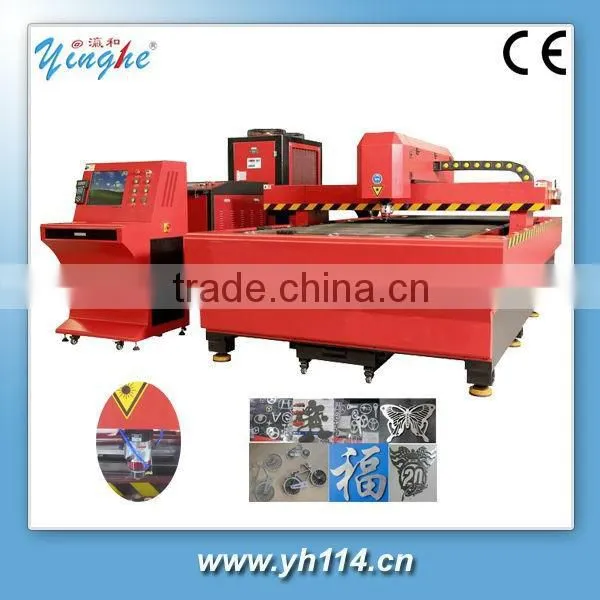

High Quality High Speed Metal Laser Cutting Machine for Sale
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
YAG
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Price 8 in 1 Photo Album Polishing and Foilding MachineNegotiableMOQ: 1 Unit -
High End Mini Laser Engraving and Cutting Machine for WoodNegotiableMOQ: 1 Unit
-
Top One Cute Baby Photo Album PrintingNegotiableMOQ: 1 Unit
-
Hot Sale High Quality Quality Album Printing MachineNegotiableMOQ: 1 Unit
-
2015 New Design uv Velvet Coating MachineNegotiableMOQ: 1 Unit
Condition
New
Laser Type
YAG
Applicable Material
Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Cutting Thickness
8mm for metal
Cutting Area
1.3*2.5m
Cutting Speed
35mm/s
CNC or Not
Yes
Cooling Mode
Water Cooling
Control Software
lasercut
Graphic Format Supported
AI, BMP, DST, DWG, DXF, DXP, PLT
Place of Origin
China
Brand Name
YH
Model Number
YH-YAG620-2513
Certification
CE
Specifications
YAG laser cutting machine has been widely used in manufacture billboard, sheet metal structure, high-low voltage electric cabine
| Application: | |||||
| YAG laser cutting machine has been widely used in manufacture billboard, sheet metal structure, high-low voltage electric cabinet, textile machinery, kitchenware, metal artware, etc. | |||||
| Applicable materials: | |||||
| YAG laser cutting machine can cut metal sheet or pipe, such as stainless steel ,mild steel ,alloy materials,copper gold ,silver ,platinum ,titanium and aluminum etc., | |||||
| Features: | |||||
| High precision: an precise cutting for various precision part, arts and crafts. | |||||
| Fast speed: 100 times higher than linear cutting | |||||
| Small heat affected zone, good dimension stability. Flat and handsome laser-slotted, without later process | |||||
| High performance/price ratio: the price is only 1/8 of the similar CO2 laser cutting machine and 2/5 of the equivalent NC Punch | |||||
| Low use cost: only 18 per hour which is 1/8-1/10 of the similar CO2 laser cutting machine(150-180 per hour) | |||||
| Low follow-up maintenance cost: only 1/10~1/15 of the similar CO2 laser cutting machine and 1/3~1/4the equivalent NC Punch | |||||
| Steady performance: as a mature laser apparatus, the YAG laser cutting machine is suitable for serial production | |||||
| Compared with NC Punch, YAG laser cutting machine have many advantages | |||||
| Any complicated structure which can be drawn on the computer also can be manufactured by YAG laser cutting machine | |||||
| If the product image has be drawn on the computer, the product can be manufactured immediately without opening mould technology. It can be used to develop new products rapidly and reduce cost. | |||||
| Both plan cutting and surface trimming can be finished by automatic tracing system of YAG laser cutting machine | |||||
| cutting machine can accomplish the complicated process which is hard to achieve by NC punch | |||||
| machine can make high grade production with smooth surface, which is hard to obtained by NC punch | |||||
| The molded box (in 0.5 meters thick or less) need to increase holes or slots, CNC punching machine can not do it, but YAG Metal CNC Laser Cutting Machine can. | |||||
| Parameters: | |||||
| model | YH-YAG620-2513 | ||||
| Processing scale | 3000X1500mm | ||||
| Cutting thickness | 8mm | ||||
| Max.output power | 620w | ||||
| Laser wavelength | 1064nm | ||||
| Pulse frequency | 1-300HZ | ||||
| Max.cutting speed | 35mm/s | ||||
| X.Y.Z axis geometric positioning accuracy | ≤±0.08mm/1000mm | ||||
| X.Y.Z axis re-orientation accuracy | ≤±0.04mm | ||||
| Machine weight | 4000KG | ||||
| Cooling mode | Water cooling | ||||
| Electrical source | 380V/50HZ/100A | ||||
| Applicable material and max cutting thickness | |||||
| Carbon/Mild steel | 0.1-8mm | ||||
| Stainless steel | 0.1-6mm | ||||
| Brass/copper | 0.5-3mm | ||||
| Aluminum | 0.5-3mm | ||||
| Zinc | Max 2.5mm | ||||
| Color or silicon plate | Max 2.5mm | ||||

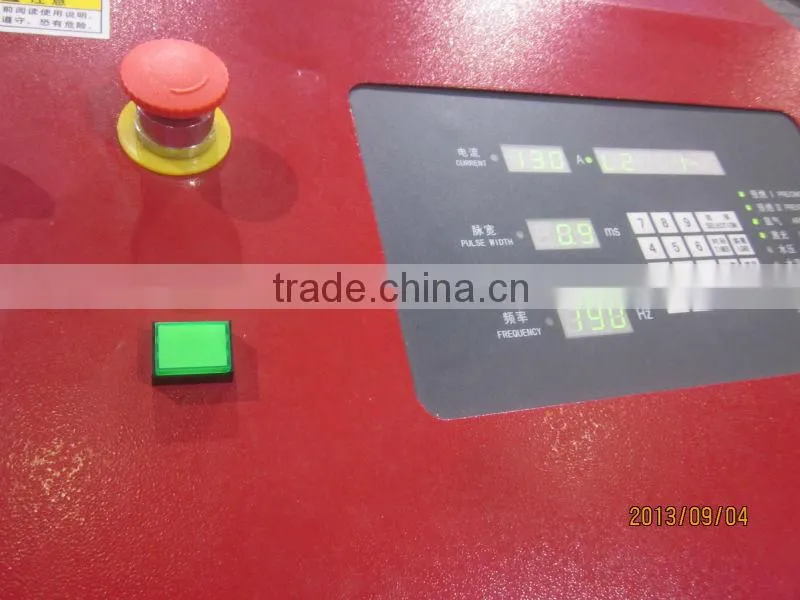

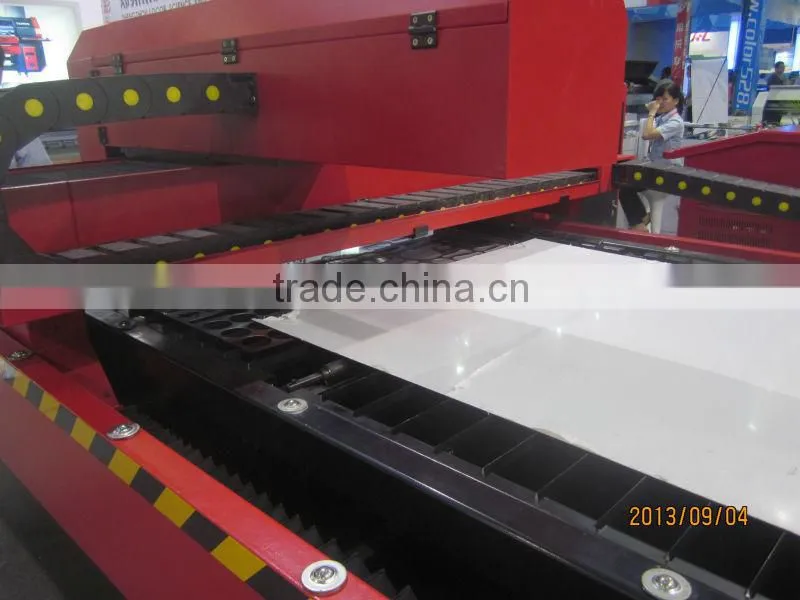

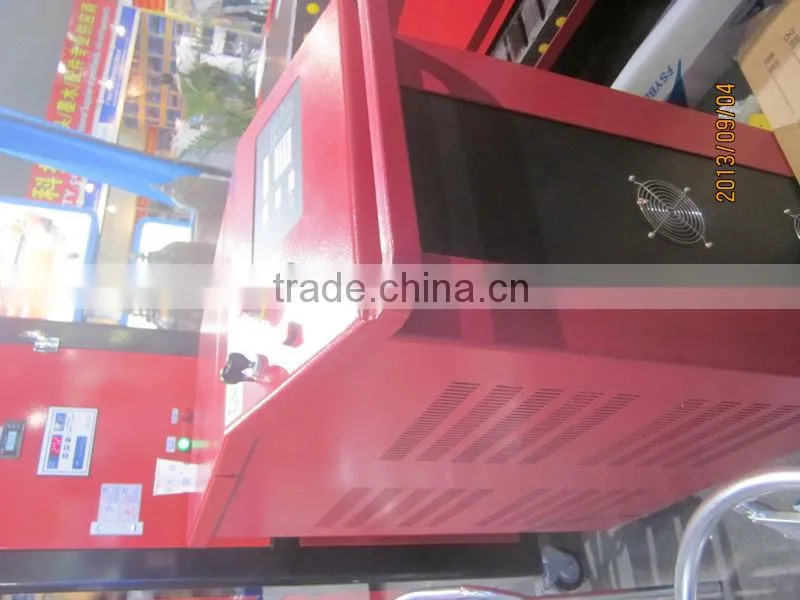

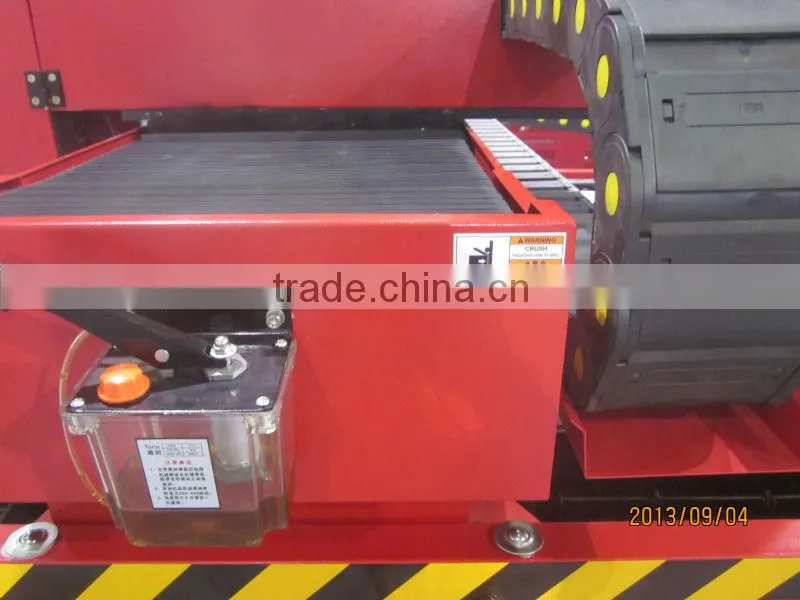

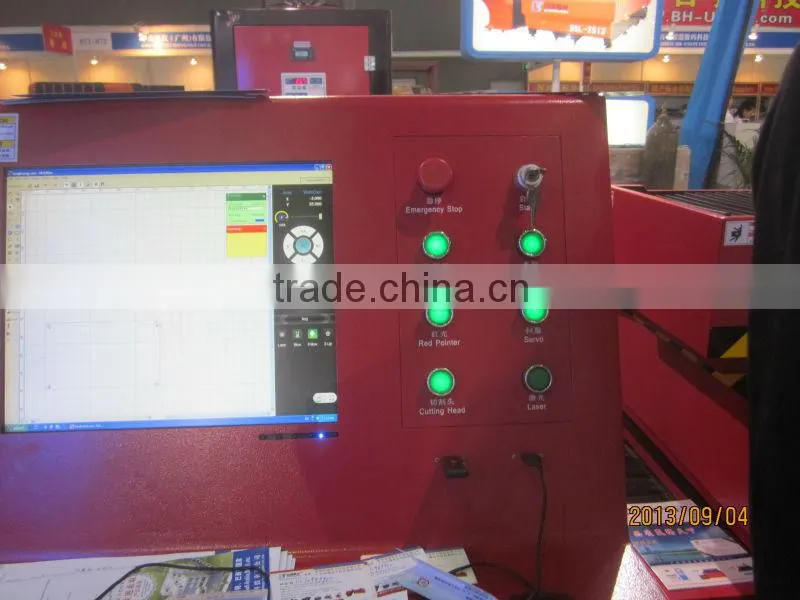

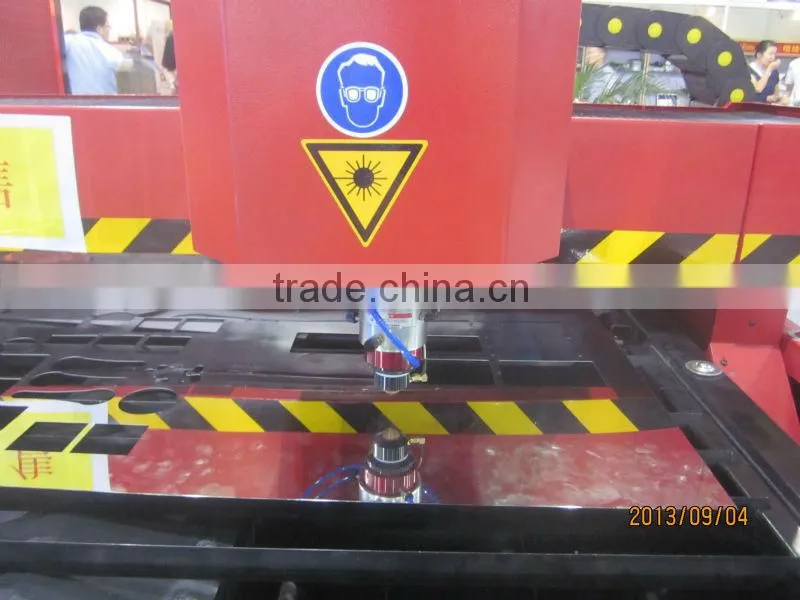

Detail Photos:
Samples:
After-Sales Service
1. Professional English speaking engineers
are online ready for your troubleshooting service.
It is reachable in an easy way.
2. We guarantee prompt warranty service for parts repairmen
and replacement by international courier. (DHL, FEDEX, UPS, TNT)
3. We can give quick response for on site overseas service requests
and offer 7 days' free training and installation service
when customer bear the traveling expense including visa, round trip tickets,
boarding and lodging at service place.
