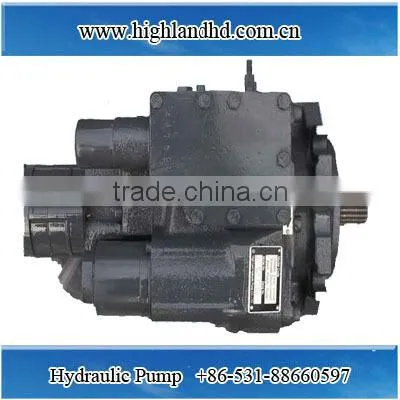

China factory direct sales long working life hydraulic pump and motor price for harvester field

Name: China factory direct sales long working life hydraulic pump and motor price for harvester field
Brand: High Land
Price: USD $1,000 - 3,000 / Unit

FOB Price

USD $1,000 - $3,000 / Unit

1 Unit(Min.Order)

Supply Ability 100 Unit / Units per Month
Port Qingdao
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Shandong, China	Brand Name:	High Land	Model Number:	PV22/23/24 life hydraulic pump and motor price
Theory:	Other, Hydraulic	Structure:	Piston Pump	Usage:	Other, Pump and accessories
Power:	Hydraulic	Standard or Nonstandard:	Standard	Fuel:	Gasoline
Pressure:	High Pressure	Application:	Other, Construction machinery, construction Machinery

Packaging Details

In box

Product Description

hydraulic pump for harvester

life hydraulic pump and motor price

PV21/22/23 pump for concrete mixer truck

China manufacture piston pump for concrete mixer field

Technical data:

Technical Parameters

Model	Max. Displacement(ml/r)	Torque at 10Mpa(N.m)	Out power(at 10Mpa 1500r/min)(kw)	Charge Pump Displacement(ml/r)	Max. Speed(r/min)
21	51.6	84.1	12.7	12.3 18.0	3000
22	69.8	114.2	17.2		3000
23	89.0	144.3	21.9		2800

Components Weight Chart

Model	Variable Pump	Variable Displacement Motor	Fixed Displacement Motor
21	53.52	58.51	34.47
22	61.24	66.23	39.92
23	78.47	83.46	47.17

1. We are a professional enterprise of 20 series hydraulic pumps and motors for many years' experience .

2. 20 series hydraulic pumps and motors are mainly used for concrete

mixer trucks form 3-16 m3. At the same time ,we can also offer gearbox for mixer trucks .

3. We have exported the pumps , motors and gearbox to many

countries ,such as Thailand ,USA ,Indonesia ,Malaysia and so on .

Product Catalogue:

1 Our engineer can produce the special equipment according to the requirements of different clients .We have our own factory

.Wecan provide highly quality .

2 To be a first-class enterprise and create a fadeless brand .

1 PV21/22/23 MF21/22/23

2 K3V 63/112DT

3 A4V,A10V,A11V

(1)A4VTG90HW/33R-NLD10F005S

(2)A10VSO28DFR/31R-PSC12K01

(3)A11VLO190LRDU2/11R-NZD12N00

(4)A11VLO190LRDH2/11R-NZD12N00

(5)A2FM90/61W-VUX027

4 Application: Main pump of Excavator or other Construction Machinery.

Company Profile

Ji'nan High Land Hydraulic Pump Co., Ltd.

Profile
Jinan High Land Hydraulic Pump Co., Ltd. , a professional high-tech enterprise that combines hydraulic design, manufacturing and maintenance. High Land owns strong ability of R & D, first-class scientific management elites and advanced equipment for manufacturing and testing.

Hydraulic Pump
Hydraulic Comprehensive Test Bench
Digital Hydraulic Test Bench
MYHT Portable Hydraulic Tester
Hydraulic Pump Parts

Service: On-site technical advisory for Hydraulic System
Maintenance: Hydraulic Pump or Motor imported or made in China

Jinan High Land Hydraulic Pump Co.,Ltd.
Address:N0.26, Beiyuan Street, Licheng District, Jinan
Tel: 0086-0531-88796130 88770136
Fax: 0086-0531-88796120
Technical Support: 13805406089
Post Code: 250100

Hydraulic Digital Test Bench
Maintenance and test equipment for testing Hydraulic Pump, Motor

Parameters:
Flow: 300-500L/Min
Pressure:35Mpa
Power: 75-250KW
Motive Power: Hydraulic Electromotor, Frequency Conversion Electromotor, Diesel Engine Drive

Portable Hydraulic Tester
MYHT Portable Hydraulic Tester is applicable for testing flow, pressure, temperature of hydraulic system of construction equipment. It widely absorbs advanced technical experience of international peers and has filled the blank of this field in China.

Potent No.: ZL 2005 2 0080054.X

Parameters:
Flow: 200---800L/Min.
Precision:1%
Pressure: 420bar
Temperature:150
Weight: 6.2-10.5kg

Product: Hydraulic Pump, Hydraulic Comprehensive Test Bench, Digital Hydraulic Test Bench, Portable Hydraulic Tester
Service: on-site technical advisory for hydraulic system, system reform, parts test

Maintenance: Hydraulic Piston Pump, Piston Motor, Valve, Sauer Pv20,90 series RexrothA10V, A4V, A11series, Kawasaki K3V, NV series, Komatsu, CAT
