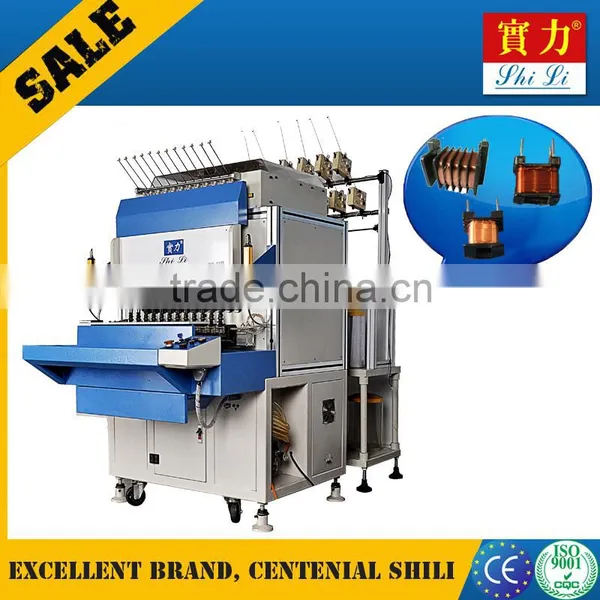

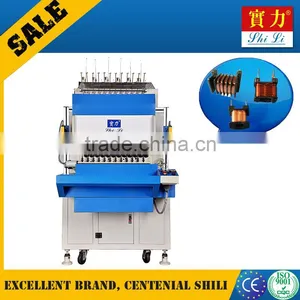

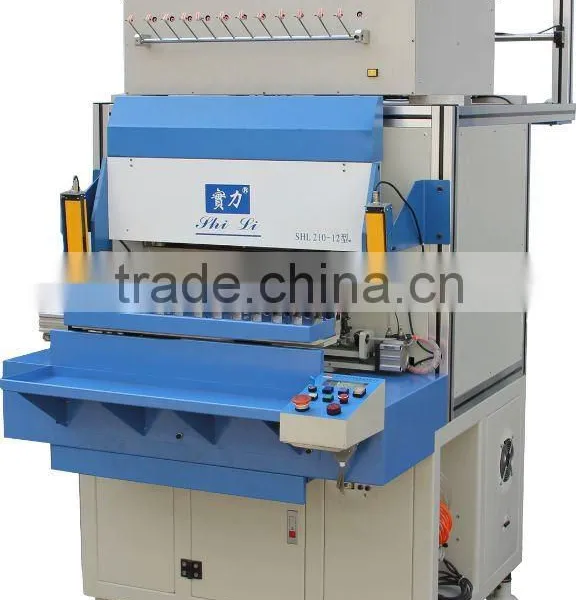

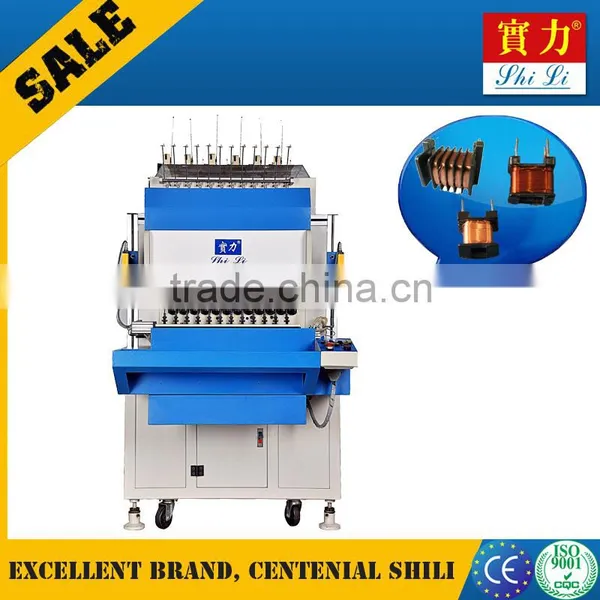

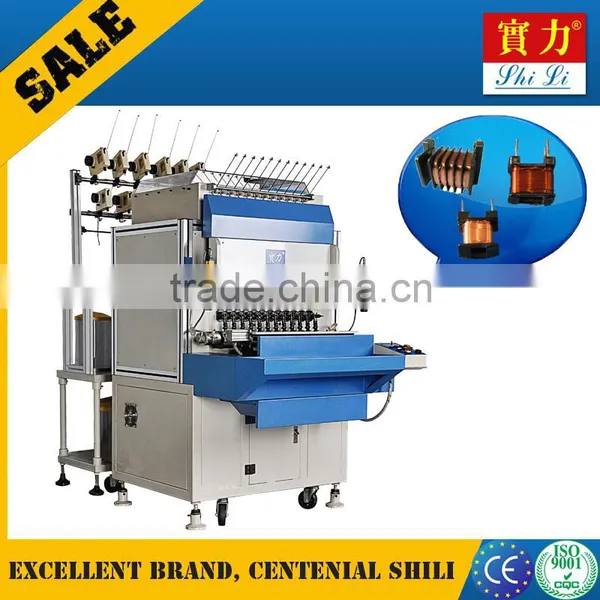

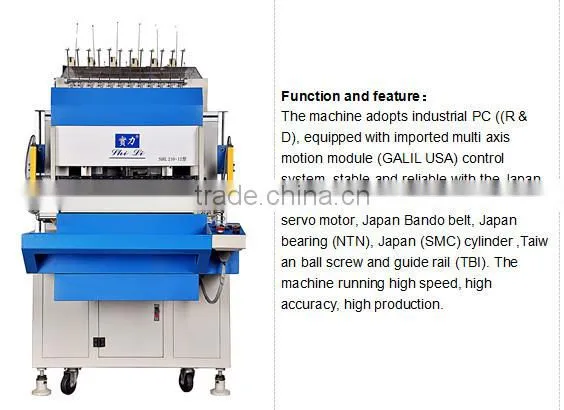

SHL210-12 Full Automatic transformer bobbin plastic coil winding machine
a.Unique winding fixture design, dress up fast.
b.Can be set to 0 ° or 90 ° angle wrapped wire. Can finish the two angles at one time.
c.Precision tension wire frame control, quality and more secure.
d.With movable wire clamping function, a wire clamping device without any residual line.
e.Use windows interface, a simple high-level language instruction, convenient programming.
f.Password storage function, to prevent non-related personnel to modify the program.
g.With automatic loading and unloading functions, increase production.
h. Twisting function. (optional)
i.To configure the thread breakage detecting device.
j. The external display design, to prevent information leakage parameters.
Spindle number |
12 |
Wire size range |
0.02-0.4mm |
Max bobbin diameter |
42mm |
Spindle pitch |
Φ40mm |
Max speed |
12000turn/min |
Moving range of guide pin |
XSpindle :0-60mm |
Control method |
AC servo motor drive system |
Twist speed |
3000turn/min |
Winder direction |
Adjustable at both ends |
Input power |
220V,60/50HZ |
Machine size |
1800*1000*1900mm |
Total power |
3.4W |
Weight |
530KG |
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 220v 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, etc .
3. Q: What is the payment term
A: The payment term is 100% T/T before shipment.
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 5-6 working days after receive payment.
5. Q: What is the warranty period of the machine?
A: The warranty period is one year.
