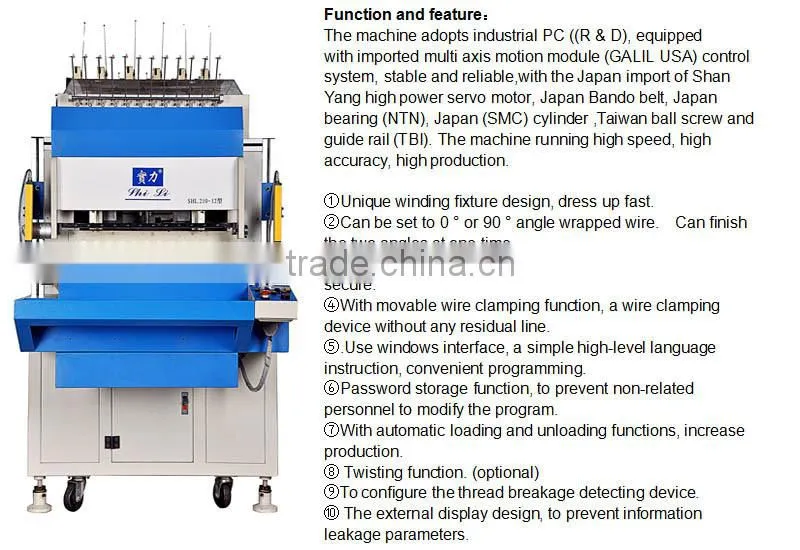

SHL210-12 12 spindle Full Automatic relay coil Winding Machine with Twisting function
Spindle number |
12 |
Wire size range |
0.02-0.4mm |
Max bobbin diameter |
42mm |
Spindle pitch |
Φ40mm |
Max speed |
12000turn/min |
Moving range of guide pin |
XSpindle :0-60mm |
Control method |
AC servo motor drive system |
Twist speed |
3000turn/min |
Winder direction |
Adjustable at both ends |
Input power |
220V,60/50HZ |
Machine size |
1800*1000*1900mm |
Total power |
3.4W |
Weight |
530KG |
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 220v 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, etc .
3. Q: What is the payment term
A: The payment term is 100% T/T before shipment.
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 4-5 working days after receive payment.
5. Q: What is the warranty period of the machine?
A: The warranty period is one year.
6. Q: How to contact us?
A:Web:
| Europe: | Germany,Czech Republic, |
| Russia, | |
| UK, France | |
| Bulgaria, | |
| Italy | |
| North America: | USA, Canada, Mexico |
| South America: | South America |
| Australia | Australia |
| Asia : | China, |
| Singapore , Malaysia , Indonesia ,Vietnam, Tailand,Myanmar, | |
| Bengal,India, Pakistan, | |
| Turkey,Iran,Syria, ,UAE | |
| Africa: | Egypt, Tunis, ,Algeria, Dominica, |
| South Africa |
