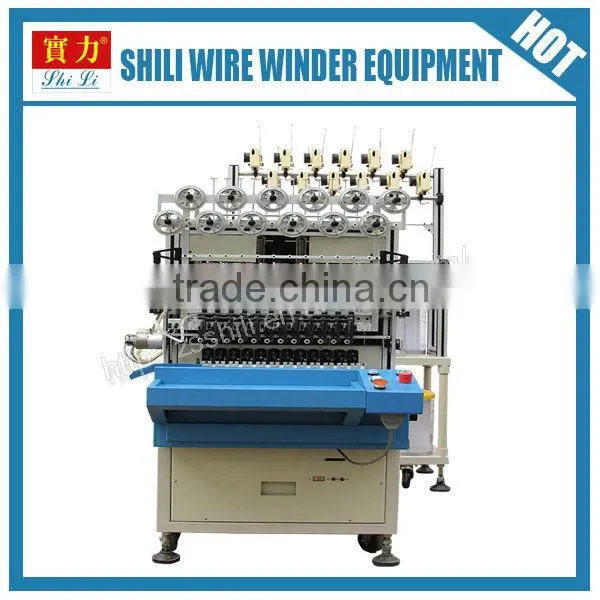

0.02-0.4mm Wire size steel coil winding machine
Specifications:
Spinle number | 12 |
Max.Speed | 12000turns/min |
Max bobbin diameter | Φ40mm |
Moving range of the guide pin | X(Before and after)0-60mm |
Y(left and right)0-60mm | |
Z(up and down)0-60mm | |
Wire size range | 0.02-0.3mmLarger diameter required optional pneumatic cutter |
Spindle pitch | 30mm |
Machine size | 1350*820*1460mm |
Control methods | industrial control |
Input power | AC 220V,60/50HZ |
Input air pressure | 6kg/cm |
Weight | 320Kg |
Application range:
Cell phone charger transformer, watch coils, lighting high-frequency transformers, solenoids, EE transformer,EI transformer,Stepping motor,Relay,coil class,auto ABS,Switch power transformer and special products.
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 220v 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, etc .
3. Q: What is the payment term
A: The payment term is 100% T/T before shipment.
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 4-5 working days after receive payment.
5. Q: What is the warranty period of the machine?
A: The warranty period is one year.
