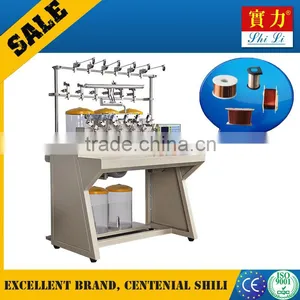

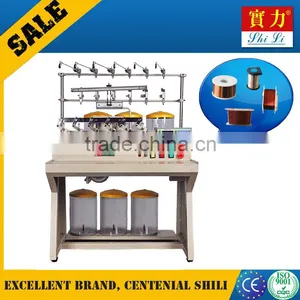

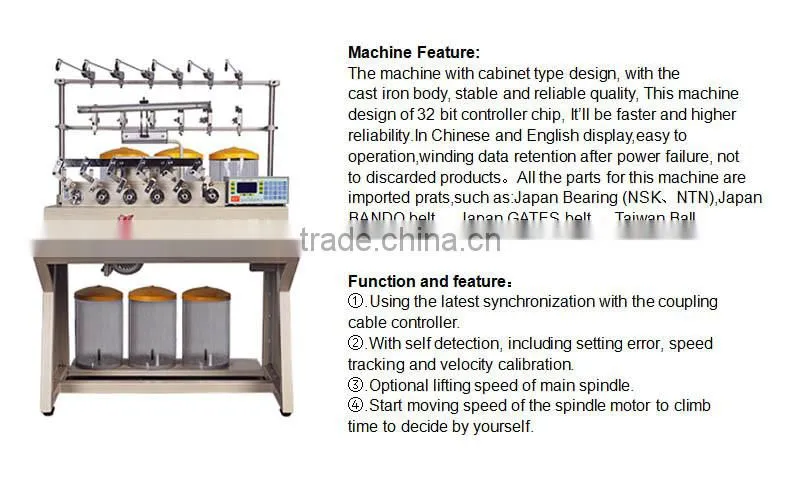

MCSH22-60 computerized wire coiling machine
Descriptions of computerized wire coiling machine
spindle |
6 |
wire size |
0.05-0.45mm |
winding dia. |
70mm |
max.wire space |
9.99mm |
winding width |
60mm |
winder speed |
0-7000 turns/min |
domestic bearing |
623,624,6000,6003 |
import bearing |
NSK6002,6003 |
power resource |
220V 50HZ/60HZ |
spindle motor |
AC1/2three phase motor+1HP transducer |
winding motor |
stepping motor |
dimension |
920×780×950mm |
wooden case |
990×740×1010mm |
net weight |
120kg |
gross weight |
150kg |
Application range:
EE transformer,EI transformer,Stepping motor,Relay,coil class,auto ABS,Switch power transformer and
special products.

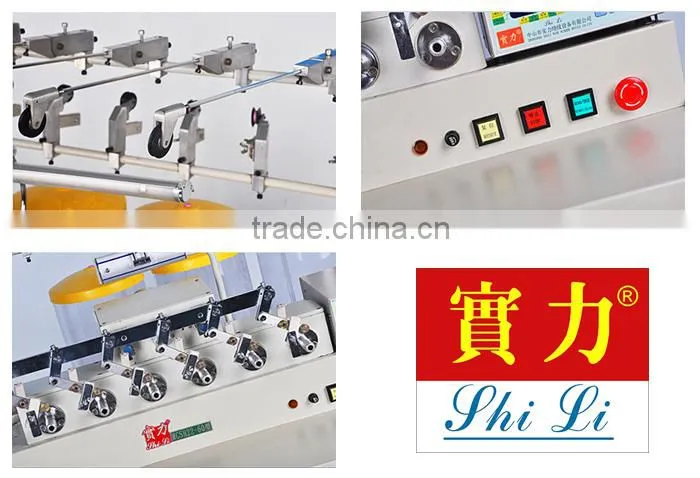

Details images of computerized wire coiling machine
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 220v 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, etc .
3. Q: What is the payment term
A: The payment term is 100% T/T before shipment.
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 4-5 working days after receive payment.
5. Q: What is the warranty period of the machine?
A: The warranty period is one year.
6. Q: How to contact us?
A:Web:
| Europe: | Germany,Czech Republic, |
| Russia, | |
| UK, France | |
| Bulgaria, | |
| Italy | |
| North America: | USA, Canada, Mexico |
| South America: | South America |
| Australia | Australia |
| Asia : | China, |
| Singapore , Malaysia , Indonesia ,Vietnam, Tailand,Myanmar, | |
| Bengal,India, Pakistan, | |
| Turkey,Iran,Syria, ,UAE | |
| Africa: | Egypt, Tunis, ,Algeria, Dominica, |
| South Africa |
