ITC T-522UH 32 Groups Freq Range Dual-channel Professional UHF Wireless Microphone System

US$ 150 - 250 MOQ: 10 Units

Key Specifications

Brand Name:

ITC

Model Number:

T-522UH

Style:

Handheld Microphone

Guangzhou ITC Electronic Technology Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shenzhen and HK

Delivery Detail:

Delivery time depends on order quantity.

Brand Name ITC

Model Number T-522UH

Style Handheld Microphone

Communication Wireless

Use Conference Microphone

Place of Origin Guangdong, China

ITC T-522UH 32 Groups Freq Range Dual-channel Professional UHF Wireless Microphone System

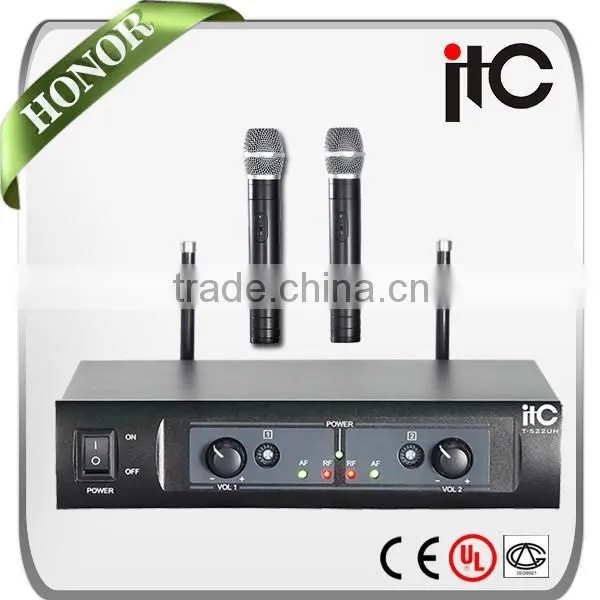

Appearance

ITC T-522UH 32 Groups Freq Range Dual-channel Professional UHF Wireless Microphone System

Feature

ITC T-522UH 32 Groups Freq Range Dual-channel Professional UHF Wireless Microphone System

Its case is in material of 0.5” metal in 1U according to the global standard of EIA, which could be installed in chassis.
It offers 2 channel, and each channel has 16 optional frequency bands.
On the front panel, there’re 2 dialers for users to choose frequency band.
Each channel is with knob to adjust the sensitivity.

System Index

ITC T-522UH 32 Groups Freq Range Dual-channel Professional UHF Wireless Microphone System

System Index
Frequency range		A Ch: 793.4-799.1MHz; B Ch: 799.6-805.9MHz.
Modulation Mode		FM
Frequency Bandwidth		12.5MHz
Quantity of Channels		Low: 16 channels; High: 16 channels (Dialer 0-F to Change the Frequency)
Channel Separation		300-500KHz
Frequency Stability		±0.01%
Dynamic Range		80dB
Max. Frequency Bias		±35KHz
Frequency Response		300Hz-12KHz(±3dB)
Comprehensive S/N Ratio		> 80dB
Comprehensive Distortion		≤0.5%
Working Distance		50 me (Openness)

Receiver Index

ITC T-522UH 32 Groups Freq Range Dual-channel Professional UHF Wireless Microphone System

Receiver Index
Receiving Frequency Conversion Mode	Double-conversion
Antenna Port	BNC, 50 ohm
Sensitivity	-95dBm
Adjustment Range of Sensitivity	12-32dB
Discrete Inhibition	≥75 dB
Audio Output Port	Diameter 6.35mm
Max. of Output Level	2V
Power Supply Method	Switching Power 12V/1A
Operating Temp.	-10℃ to +40℃
Dimension (WxHxD)	21044147mm
Weight	About 1Kg

Microphone Index

ITC T-522UH 32 Groups Freq Range Dual-channel Professional UHF Wireless Microphone System

Microphone Index
Transmission Power	≥10dBM
Spur Reduction	≥60dB
Power Supply	2 Cell AA Batteries or 2 Cell ni-mh rechargeable batteries
Working Time	>10 hour
