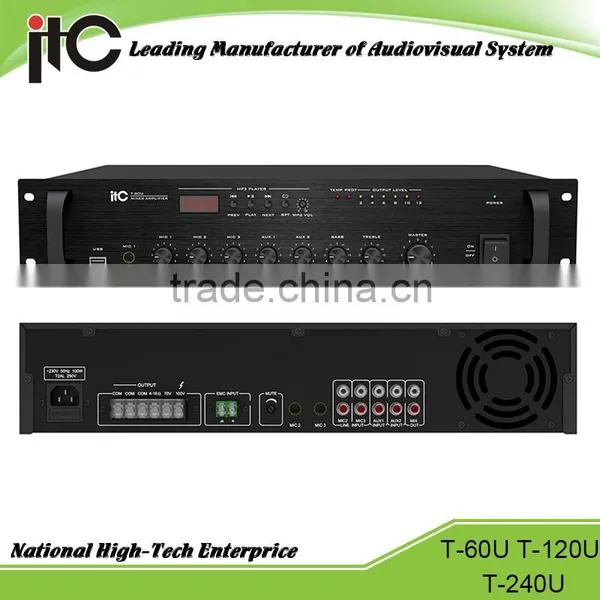

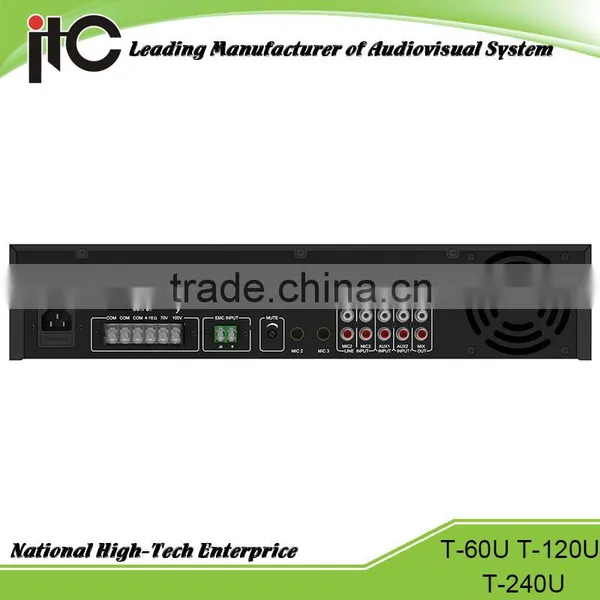

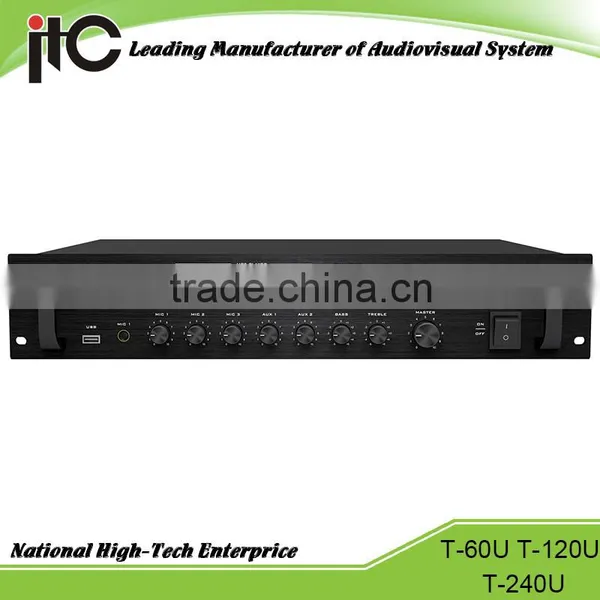

ITC T-60U Series 60 Watt to 240 Watt Optional Power Mixer Amplifier With USB

ITC T-60U Series 60 Watt to 240 Watt Optional Power Mixer Amplifier With USB thumbnail-1
ITC T-60U Series 60 Watt to 240 Watt Optional Power Mixer Amplifier With USB thumbnail-2
ITC T-60U Series 60 Watt to 240 Watt Optional Power Mixer Amplifier With USB thumbnail-3
ITC T-60U Series 60 Watt to 240 Watt Optional Power Mixer Amplifier With USB photo-1
ITC T-60U Series 60 Watt to 240 Watt Optional Power Mixer Amplifier With USB photo-2
ITC T-60U Series 60 Watt to 240 Watt Optional Power Mixer Amplifier With USB photo-3
US$ 100 - 300 MOQ: 10 Units
Key Specifications
Get Latest Price
Brand Name:
ITC
Model Number:
T-60U/T-120U/T-240U
Type:
Professional Amplifier
Contact Supplier Request Quote Chat Now
Guangzhou ITC Electronic Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ITC
Model Number T-60U/T-120U/T-240U
Type Professional Amplifier
Channels 2 (2.0)
Place of Origin Guangdong, China
Application

ITC T-60U Series 60 Watt to 240 Watt Optional Power Mixer Amplifier with USB

Suitable for Small Scale Background Music System.

Feature

ITC T-60U Series 60 Watt to 240 Watt Optional Power Mixer Amplifier with USB

1) In standard cabinet 2U; with handle, precise technique and stylish appearance;
2) With USB port and LCD; with 4 common buttons for MP3 player: Prev/ Play/Next/Rep;
3) Via USB, the device could be remote controlled; buttons of EQ, VOL-, VOL+, Mute, etc are on the remote control;
4) With inputs: 1 EMC, 2 AUX, 3 Mic, 2 switchable Mic/Line input;
5) Priority: Mic 1>EMC>Mic 2, Mic 3, AUX 1, AUX 2, Mic 2/Line In, Mic3/Line In;
6) Each input has independent volume control, and total volume control and treble/bass control are provided with;
7) With indicators for level, overload and protection status;
8) Excellent circuit protection for short, overload, over-heat, etc;
9) 2 kinds of speaker output: constant voltage output at 70V or 100V and constant impedance output at 4 to 16 ohm.

Technical Parameter
Model
T-60U
T-120U
T-240U
Rated Power
60W
120W
240W
Speaker Output
70V, 100V & 4~16Ω
Input Sensitivity & Impedance
MIC 1, 2, 3: 5mV/600Ω, Unbalanced 6.3mm connector
MIC 2, 3: 775mV/10KΩ, Unbalanced RCA connector
AUX 1, 2: 350mV/10KΩ, Unbalanced RCA connector
EMC: 775mV/10KΩ, Unbalanced RCA connector
Output Sensitivity & Impedance
Mix Out: 1000mV/470Ω, Unbalanced RCA connector
Tone
Bass: ±10dB at 100Hz
Treble: ±10dB at 10KHz
Frequency Response
50Hz~16KHz (+1dB, -3dB)
SNR
MIC 1, 2, 3: 66dB; AUX 1, 2: 80dB
THD
Less than 0.5% (at 1KHz, 1/3 rated power)
Mute Control
MIC 1 has highest priority and EMC has the second
Crosstalk
≥50dB
Audio Format
MP3
Capacity of MP3
8GB
Cooling
When temp. reaches 55℃, fan starts up automatically
Protection
Over-heat, overload, short, etc
Power Supply
~110V/50Hz or ~230V/60Hz
Power Consumption
100W
200W
400W
Weight
8.1Kg
9.36Kg
16.6Kg
