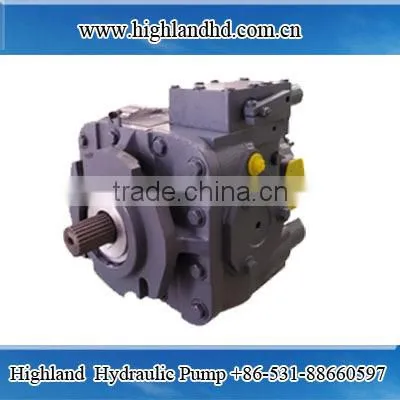

PV21 High Pressure Piston Pump Manufacturer

Name: PV21 High Pressure Piston Pump Manufacturer
Brand: Highland
SKU: 114876983
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Highland

Model Number:

PV21

Ji'nan High Land Hydraulic Pump Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Highland

Model Number PV21

Theory Rotary Pump

Structure Piston Pump

Usage Oil

Power Hydraulic

Standard or Nonstandard Standard

Fuel Other

Pressure High Pressure

Application Metering

PV21 high pressure piston pump manufacturer

We are a professioanl enterprise of hydraulic pumps and

motors for many years' expereince .

hydraulic pumps and motors are mainly used for concrete

mixer trucks form 3-16 m3. At the same time ,we can also offer gearbox for

mixer trucks .

We have exported the pumps , motors and gearbox to many

countries ,such as Thailand ,USA ,Indonesia ,Malaysia and so on .

The models are as below :

pump: PV20 PV21 PV22 PV23

motor:MF20 MF21 MF22 MF23

Model	Max. Displacement(ml/r)	Pressure/Mpa		Max Speed /(r/min)	output Power (when at 10Mpa,1500r/min)/KW	Variable Pump			Fixed Displacement Motor
Model	Max. Displacement(ml/r)	Rated	Max	Max Speed /(r/min)	output Power (when at 10Mpa,1500r/min)/KW	Flow at Max. Speed /(L/min)	Charge Pump Displacement /(mL/r)	Weight/kg	Torque at 10Mpa	Weight/kg
20	33.3	21	35	3800	8.2	126.5	8.2	45	54.1	27
21	51.6	21	35	3500	12.7	180.6	12.3	53	84.1	34
22	69.8	21	35	3200	17.2	223.4	18.0	61	114.2	40
23	89.0	21	35	2900	21.9	258.1	18.0	78	144.3	47
