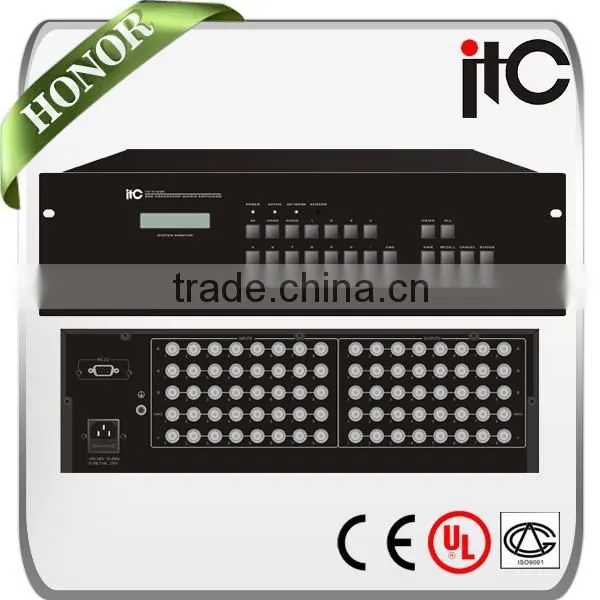

ITC RGB 8 Series 8 in 2/4/8 out LCD Display RGB Audio Video Matrix Switcher
ITC RGB 8 Series 8 in 2/4/8 out LCD Display RGB Audio Video Matrix Switcher
RGB series audio video matrix switcher, the high-performance intelligent switch equipment, is designed to display and distribute for the most demanding high-resolution computer numbers (ie RGBHV signals). It switcher the multi- channel input signal to any output channel, is independent of each other. Built-in audio, it allows video and audio synchronous or asynchronous switching.
RGB series professional matrix switcher is built-in a high performance matrix processing chip, coming with a buffer. It works with ultra-wideband gain compensation technology and synchronization signal correction technology to display the image output more stably and clear, without ghosting.
RGB series professional matrix switcher can be 24-hour standby and power down switching and memory protection. It can be connected with computer, remote control systems & devices with RS232 port.
RGB series professional matrix switcher has full product lines, ranging from RGB8 to 32 x 32 series. It is applied to any transmission for standard analog video and audio signals, widely used in multimedia conference projects, radio and television projects, command and control, etc.
ITC RGB 8 Series 8 in 2/4/8 out LCD Display RGB Audio Video Matrix Switcher
* With 8/ 16 audio and video signal input, 2/4/8/16 channel output.
* Video bandwidth height 450MHz (-3dB) full loaded.
* Provide multiple preset and save units, with power-down memory function.
* LCD display the switching operation status, can check the input output channel connection status with the panel keyboard.
* With infrared remote control and RS232 port.
* With fast switch for more efficient operation.
* With independent RGBHV component and audio balanced / unbalanced input and output connectors.
* Support video signal types: RGBHV, RGBS, RGsB, RsGsBs, high- definition television (HDTV), component video, S-video, composite video (signal).
* With BNC connectors for video signal input and output, five 3.8mm screw interfaces for audio signal terminal.
* Support audio signal types are: stereo, balanced or unbalanced connection.
* With programmable logic array circuit and any interactive switch.
* Distortion compensation technology for long-distance signal transmission.
* Built- International General Electric.
ITC RGB 8 Series 8 in 2/4/8 out LCD Display RGB Audio Video Matrix Switcher
Composite video signal |
|
Video bandwidth |
450MHz(-3dB) full loaded |
Input signals |
RGBHV,RGBS, RGsB, RsGsBs |
input interface |
5 BNC |
RGB Input Level |
0.5Vp-p ~ 2.0Vp-p |
RGB input impedance |
75Ω |
HV Input Level |
0.5V ~ 5.0Vp-p |
HV input impedance |
510Ω |
Output signal |
RGBHV, RGBS, RGsB, RsGsBs |
Output interface |
5 BNC |
RGB Output Level |
0.7Vp-p ~ 2.0Vp-p |
RGB output impedance |
75Ω |
HV output level |
0.5V ~ 5.0Vp-p |
HV output impedance |
75Ω |
Return Loss |
<- 30dB@5MHz |
Horizontal Frequency Response |
15 kHz ~ 145 kHz |
Vertical frequency response |
30 Hz ~ 170 Hz |
The analog audio signal |
|
Video bandwidth |
150MHz(-3dB) full loaded |
Input signals |
stereo ( balanced or unbalanced) |
input interface |
RCA or 3.8mm screw luck |
Input Level(max) |
+19.5dBu |
Input impedance |
> 10KΩ |
Output signal |
stereo (balanced or unbalanced) |
Output interface |
RCA or 3.8mm screw luck |
Output Level(max) |
+21dBU |
Output impedance |
>50Ω |
Frequency Response |
20Hz-20KHz, +0.05dB |
Noise ratio (S/N) |
>90dB |
Stereo Channel Isolation |
>80dB @ 1 kHz |
Common mode rejection ratio (CMRR) |
>75dB @ 20 Hz ~ 20 kHz |
Equipment Specifications |
|
propagation delay (MAX) |
5nS(±1nS) |
Switching delay |
200nS ( maximum time ) |
Average failure time |
50000hours |
Operating temperature |
-20~45℃ |
Operating humidity |
10%~90% |
Supply voltage |
100VAC~240VAC, 50/60Hz |
