ITC TS-0692 360 Degree Pan Auto Tracking Video Conference Camera With 6 Programmable Tracking Line

ITC TS-0692 360 Degree Pan Auto Tracking Video Conference Camera With 6 Programmable Tracking Line thumbnail-1
ITC TS-0692 360 Degree Pan Auto Tracking Video Conference Camera With 6 Programmable Tracking Line photo-1
US$ 500 - 1,000 MOQ: 10 Units
Key Specifications
Get Latest Price
Simultaneous Interpretation:
Yes
Place of Origin:
Guangdong, China
Brand Name:
ITC
Contact Supplier Request Quote Chat Now
Guangzhou ITC Electronic Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou shenzhen or Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Simultaneous Interpretation Yes
Place of Origin Guangdong, China
Brand Name ITC
Model Number TS-0692

ITC TS-0692 360 Degree Pan Auto Tracking Video Conference Camera with 6 Programmable Tracking Line



Product Description

ITC TS-0692 360 Degree Pan Auto Tracking Video Conference Camera with 6 Programmable Tracking Line



1)1/4" SONY SUPER HAD CCD.

2)18 times optical zoom, f=4.1mm(wide)-73.8mm(tele),F=1.4-F3.0.

3)480TVL.

4)High strength double glazed aluminium lunkerite bottom canopy, high temperature resistance and resistant to corrosion.

5)360°continuous rotation, the max speed 300°/s.

6)4 roads alarm input and one road alarm output.

7)6 roads programmable tour check, 128 pre-points, with self-learning function.

8)OSD display English menu, pre-point title and camera address, etc. displayable.

9)Integrated multi protocols, baud rate optional, multi-cameras self-adaptation and standard RS-485 control.

10)Packed ports, with hot plug function, convenient for aloft working.

11)Zone hidden selection function (max 8 programmable hidden zones).

12)Built in 3KV lightning protection, surge protection and instant over voltage protection.

13)Adopt all-weather shield, built in automatic thermostatic apparatus.

14)Adopt AC24V power and line lock available.

15)About forty four hundred thousand pixel, 12 times digital zoom.

16)Lowest illumination: 1.0LX(standard) (F1.4,5OIRE).



Parameters

ITC TS-0692 360 Degree Pan Auto Tracking Video Conference Camera with 6 Programmable Tracking Line



Model

TS-0692

Upper canopy material

Aluminium alloy

Wire balloon material

Imported acrylic optical material

Horizontal Turning

0°~300°/s

Vertical Rotation

0°~120°/s

Level Angle

360°Infinite place

Vertically Angle

90°

Pre-points

128 Pieces (max)

Control method multi protocol

RS485

Power

AC24V

Power Consumption

35VA

Relative Humidity

90%

Dimensions

219x262mm

Weight

4kg

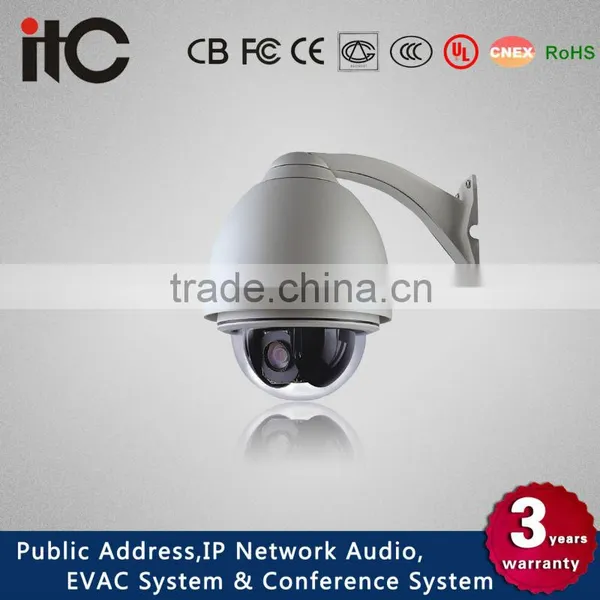

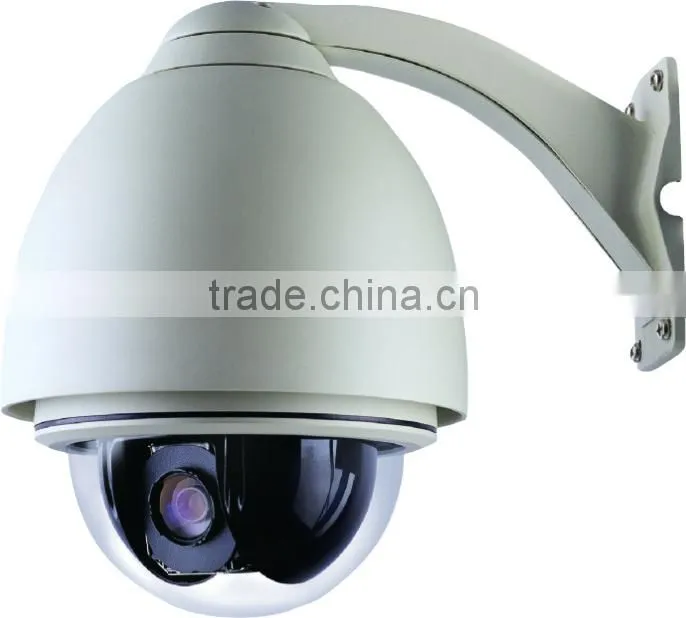

Detailed Images

ITC TS-0692 360 Degree Pan Auto Tracking Video Conference Camera with 6 Programmable Tracking Line



                                        ITC TS-0692 360 Degree Pan Auto Tracking Video Conference Camera with 6 Programmable Tracking Line





ITC TS-0692 360 Degree Pan Auto Tracking Video Conference Camera with 6 Programmable Tracking LineITC TS-0692 360 Degree Pan Auto Tracking Video Conference Camera with 6 Programmable Tracking LineITC TS-0692 360 Degree Pan Auto Tracking Video Conference Camera with 6 Programmable Tracking Line

ITC TS-0692 360 Degree Pan Auto Tracking Video Conference Camera with 6 Programmable Tracking LineITC TS-0692 360 Degree Pan Auto Tracking Video Conference Camera with 6 Programmable Tracking Line
