ITC TS-0670H 16 Channel Language Infaired Digital Simultaneous Translation Equipment

ITC TS-0670H 16 Channel Language Infaired Digital Simultaneous Translation Equipment thumbnail-1
ITC TS-0670H 16 Channel Language Infaired Digital Simultaneous Translation Equipment photo-1
US$ 700 - 1,200 MOQ: 1000 Units
Key Specifications
Get Latest Price
Type:
Audio Conference System
Function:
Translation
Simultaneous Interpretation:
Yes
Contact Supplier Request Quote Chat Now
Guangzhou ITC Electronic Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen and HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Audio Conference System
Function Translation
Simultaneous Interpretation Yes
Place of Origin Guangdong, China
Brand Name ITC
Model Number TS-0670H

ITC TS-0670H 16 Channel Language Infaired Digital Simultaneous Translation Equipment









Recommend

ITC TV-1080P-60HT Economical 2M to 1080P60 HD Video Conference System

ITC TS-0670H 16 Channel Language Infaired Digital Simultaneous Translation Equipment

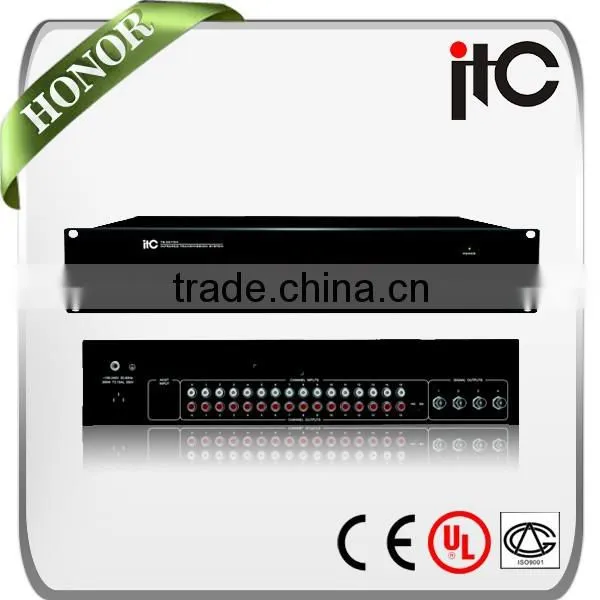

Appearance

ITC TS-0670H 16 Channel Language Infaired Digital Simultaneous Translation Equipment



 ITC TS-0670H 16 Channel Language Infaired Digital Simultaneous Translation Equipment



Product Description

ITC TS-0670H 16 Channel Language Infaired Digital Simultaneous Translation Equipment



TS-0670H series digital infrared emission host is the core part of the digital infrared voice distribution system. It will fully digital DQPSK modulated transmission with digital audio compression coding system, it can transmit the 16 channels language  at the same time. Infrared emission host can be installed on the 19-inch standard rack, easy to storage.



Feature

ITC TS-0670H 16 Channel Language Infaired Digital Simultaneous Translation Equipment



* In accordance with IEC 61603-7 and IEC 60914.

* With a 16 channel audio output, can be used to monitor or connect the booth to recording.

* With 4 channel signal output interface (BNC), used to connect to the radiation panel.

* Using digital DQPSK modulation technology, high confidentiality.

* High speed DSP processing, sound effect is beautiful and clear.

* The high transmission frequencies (2-6 MHZ, IEC61603 BAND4 frequency), without light interference by high frequency drive.

* Support Input level indicator function, LED indicator light on the front panel of the controller can display the input state of corresponding channel.

* Support 16 channel external audio input, suitable for large international conference.

* Support link TS audio digital conference system, 16 channel digital audio input.

* Support 16 channel audio output, can be used to monitor or connect the booth to recording.

* With 4 channel signal output interface (BNC), used to connect to the radiation panel.

* The power input is  100V ~240V, 50/60Hz, high voltage (3500 v) resistant test before delivery to ensure compliance with safety standards.

* The controller shell adopts metal materials, the line and shell has strengthen the  ground connection to  ensure a 8000 v antistatic ability.



Specification

ITC TS-0670H 16 Channel Language Infaired Digital Simultaneous Translation Equipment



Model

TS-0670H

Power Supply

AC 110V - 240V, 50Hz/60Hz

Power rating

24W

Carrier frequency

2 MHz - 6 MHz

FM output HF range

2 VPP

The biggest audio input range

4 VPP

FM output interface

BNCx4

Audio input interface

RCAx16

RF output impedance

75Ω

Audio input impedance

4.7 KΩ

Measurement

484L x 305W x 88H(mm)

Weight

6.0Kg

Color

Black





FAQ

Quality?

Our products're applied to important event like Olympic Game Peking 2008, Asian Game Guangzhou 2010, etc.

Trustworthy?

We're not only popular supplier in China but has good reputation in the world.

In time?

We have the ability and we'll try our best to fulfill your demand.

Factory?

Welcome to NO.1 Building B Block Zhongcun Street Panyu Guangzhou China.
