ITC TS-0605M Support 30 Units Audio Conference System Server

ITC TS-0605M Support 30 Units Audio Conference System Server thumbnail-1
ITC TS-0605M Support 30 Units Audio Conference System Server thumbnail-2
ITC TS-0605M Support 30 Units Audio Conference System Server thumbnail-3
ITC TS-0605M Support 30 Units Audio Conference System Server thumbnail-4
ITC TS-0605M Support 30 Units Audio Conference System Server thumbnail-5
ITC TS-0605M Support 30 Units Audio Conference System Server photo-1

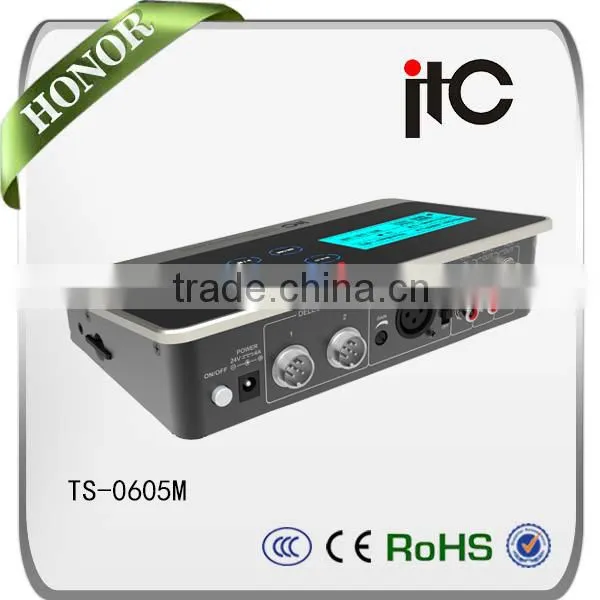

ITC TS-0605M Support 30 Units Audio Conference System Server photo-2

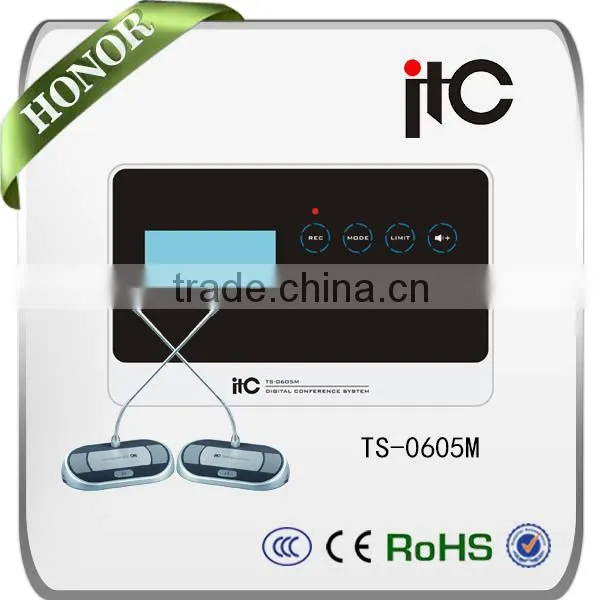

ITC TS-0605M Support 30 Units Audio Conference System Server photo-3

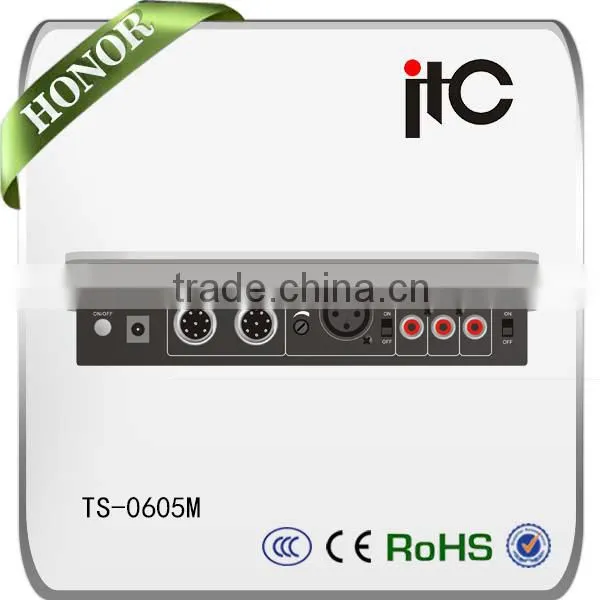

ITC TS-0605M Support 30 Units Audio Conference System Server photo-4

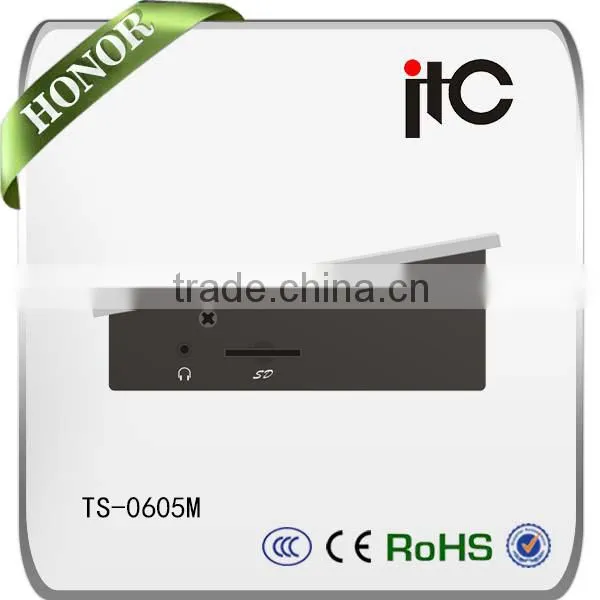

ITC TS-0605M Support 30 Units Audio Conference System Server photo-5
US$ 200 - 500 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Type:
Audio Conference System
Function:
Other, Recording
Simultaneous Interpretation:
Yes
Contact Supplier Request Quote Chat Now
Guangzhou ITC Electronic Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen and HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Audio Conference System
Function Other, Recording
Simultaneous Interpretation Yes
Place of Origin Guangdong, China
Brand Name ITC
Model Number TS-0605M
Feature

1) Using touch buttons; provide shortcuts for recording, play-back, switcher for modes or limit quantity and volume control；
2) 4 kinds of conference modes: Fist-in-first-out/Normal/ Free/ Apply;
3) With the limit function for the quantity of active microphones: Optional limit quantity is 1/2/4/6, and the chairman unit is unlimited;
4) 1 host can be connected up to 30 conference microphones;
5) Connection method of conference microphones is “Hand-in-hand”, which is easy to be installed and maintained;
6) Using audio processing modules like digital EQ and noise reduction system makes sound loud and clear; 1 audio input and 1 audio output;
7) With 1 channel acoustic output, which could be used to do sound reinforce by connecting to PA power amplifier;
8) With 1 channel recording output, which could work with recording device;
9) With the recording function and SD slot to do real-time recording of SD CARDS signed in can make convenience for real-time recording;
10) Could be connected to external microphone ;gain control is provided;
11) With the function of auto configuration for ID address to make installation more convenient ;
12) Using external power supply at 24V;
13) The enclosure of the controller is in material of metal which make the circuit connected to the ground wire better to ensure antistatic ability of 6000V;
14) Desktop-style and user-friendly operation;
15) Using 3.5mm headset jack to monitor the information of the conference in real-time.

Technical Parameters
Model
TS-0605M
Microphone Capacity
≤30
Frequency Response
30~20KHz
S/N Ratio
>75dB(A)
Dynamic Range
>80dB
Crosstalk
>80dB
T.H.D.
<0.05%
Power Supply
DC 24V
Audio Input
LINE IN: 350mV (balanced)
Audio Output
LINE OUT 1:1V ( balanced)
Output Load
＞1KΩ
Static Power Consumption
10W
Output Power Consumption
70W
Connector
8-core air plug
Standards
IEC60914
Working Temperature
-10℃ ~ +60℃
Working Humidity
relative humidity 20%~80%, no condensing
Dimension (LxWxH)
210 x 132 x 50mm
Weight
1.65kg
Color
Black
