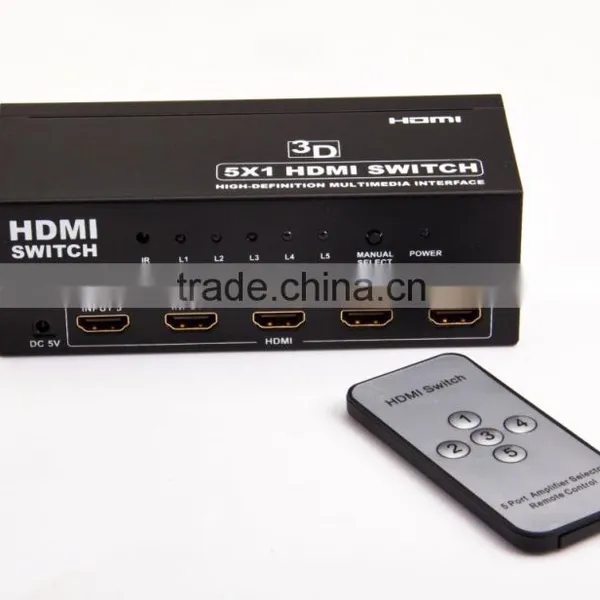

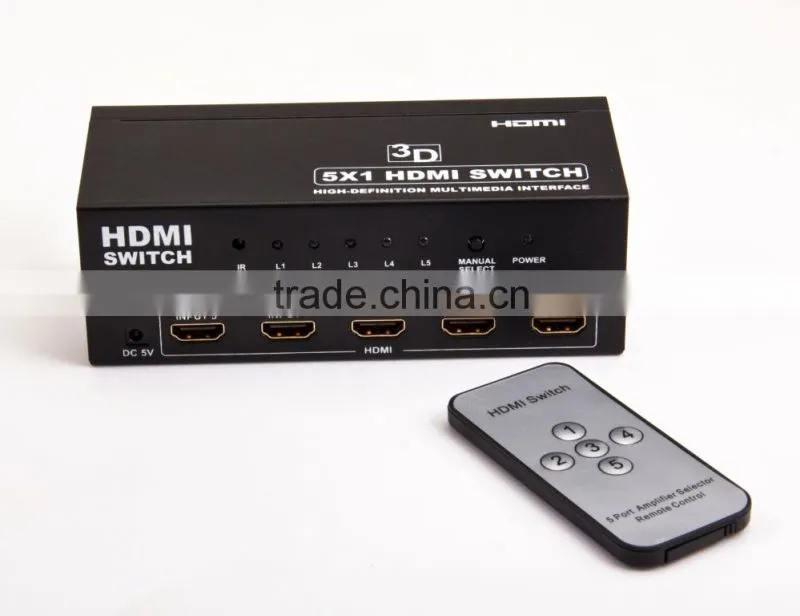

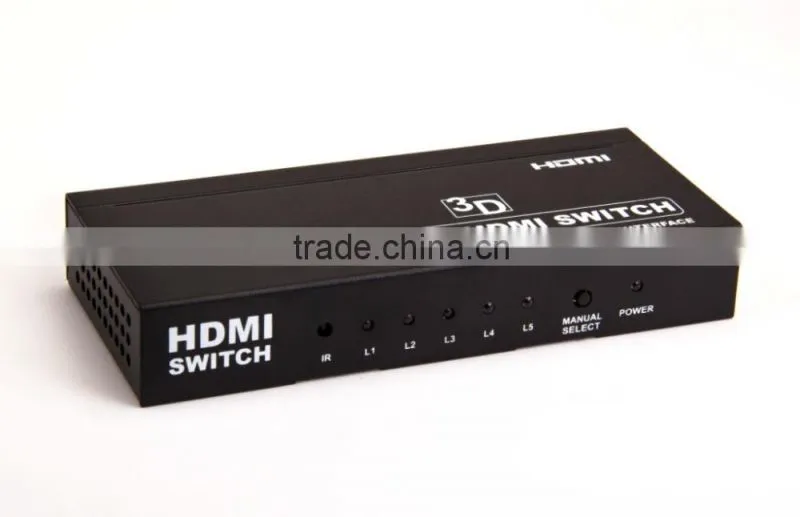

3D 1080p HDMI switcher 5x1 HDMI switch 5 input 1 output

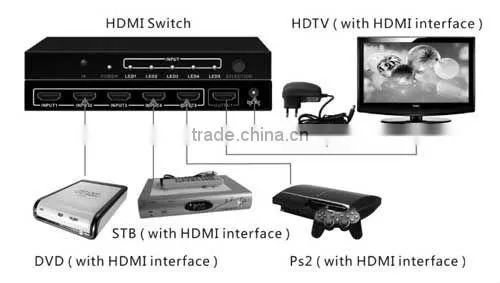

The 3D 5x1 HDMI Switch routes high definition video (in multiple resolutions up to 1080p) and digital audio
from any one of the five sources to one HDTV. Five inputs accommodate the simultaneous connection of up to
five HDMI sources and are switched easily by the IR remote within package. 3D compatible
Features
* Multifunctional on switching:intelligent and mechanical
* Support HDMI1.3b, HDCP pass-through.
* Support highest video resolution 1080p.
* High performance up to 2.5Gbps.
* Support 12bit per channel (36bit all channel) deep color.
* Support uncompressed audio such as LPCM.
* Support compressed audio such as DTS Digital, Dolby Digital
(including DTS-HD and Dolby True HD).
* Support 3D
Input DDC Signal |
5 volts p-p (TTL) |
Maximum Single Link Range |
1920X1080p |
Output Video |
HDMI 1.3b |
Vertical Frequency Range |
50/60Hz |
Video Amplifier Bandwidth |
2.5Gbps/250MHz |
Interlaced(50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0 °C to +70°C |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10°C to +80°C |
Storage Humidity |
5% to 90 % RH (no condensation) |
Power consumption (Max) |
5W |
IR extender receiver |
|
IR remote |
|
User Manual |
English Version |
