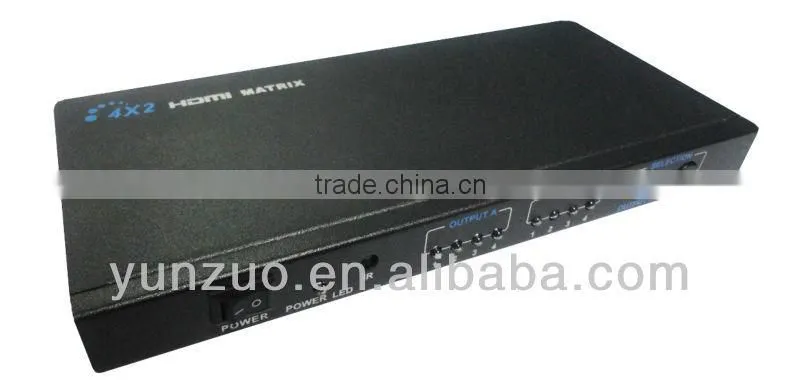

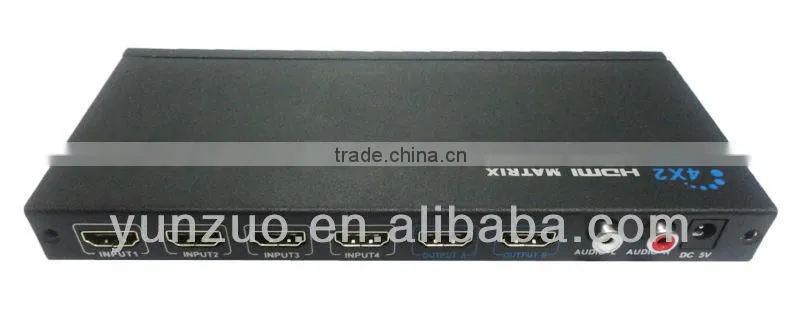

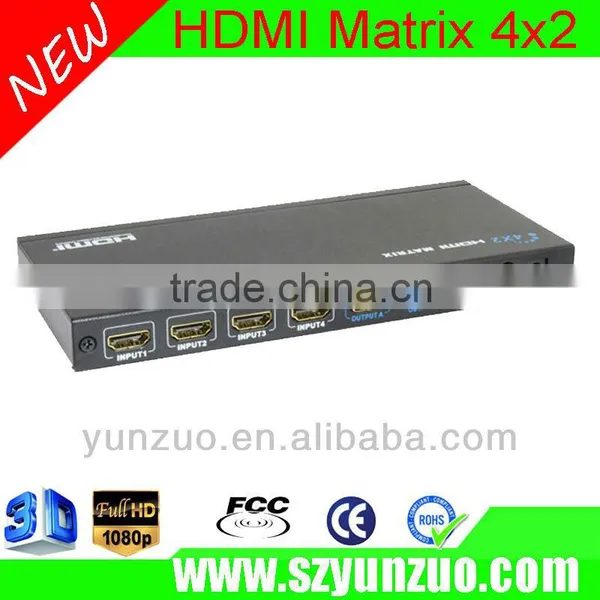

Hot Sales! 3d Hdmi Cable Matrix 4x2

Name: Hot Sales! 3d Hdmi Cable Matrix 4x2
Brand: Yunzuo
SKU: 114870709

US$ 50 - 55 MOQ: 10 Pieces

Key Specifications

Brand Name:

Yunzuo

Model Number:

HY-CAT5e6-60M-TX-V0

Place of Origin:

Guangdong, China

Shenzhen Yunzuo Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Yantian

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Yunzuo

Model Number HY-CAT5e6-60M-TX-V0

Place of Origin Guangdong, China

Specifications

3D 4x2 HDMI matrix
1.switch splitter 4x2
2.Plug and play
3.Remote control for outputs
4.OEM service

The HDMI 4x2 Matrix routes high definition video in multiple resolutions up to 1080p plus

multichannel digital audio from any of the four HDMI sources to two displays.

It eliminates the needing of disconnects and reconnects sources to a display equipped with one input. It works

with HD-DVD players, Blue Ray DVD, PS3, and satellite set top boxes that connect to two HDMI displays.

Every source is accessible at all times by any display by selecting it with an IR remote.

Matrix 4x2 can be used anywhere high-definition video applications are used. In HDTV installations, where

several sources need to be switched to different displays, SmartAVI's Matrix Switch Series is the perfect

solution.

* Supports audio output simultaneously: Stereo, Toslink and Coaxial

Video
Format	HDMI 1.3b [Deep Color, xvYcc color space supported]
DVI Compliance	Single-link DVI-D 1.1
HDCP Compliance	1.0/1.1
Video Bandwidth	Single-link 340MHz [10.2Gbps]
Resolution	480i,480p,720i,720p,1080i,1080p
Input Interface	(4) HDMI[7.1ch audio & video]
Output Interface	(2) HDMI[7.1ch audio & video]
Connector	Type A[19-pin female]
Maximum Distance	25 ft.
Control
Front Panel	Tact Switch
IR	Via Remote Control with IR Type 3
Other
Power	External 100-240 VAC/5VDC2A @10W
Dimensions	6.625”W x 1”H x 2.875”D
Weight	0.8 lbs.
Approvals	UL, CE, ROHS Compliant
Operating Temp.	32-131°F (0-55 °C)
Storage Temp.	-4-185 °F (-20-85 °C)
Humidity	Up to 95%
