HDMI Matrix Switcher for 2 Displays HDTV Led tv Lcd tv
US$ 30 - 40
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
Yunzuo or customized
Model Number:
HYJ-3402-V0
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Basic HDMI 4 x 2 Matrix Selector Switch With IR ControllerUS$ 30 - 40MOQ: 10 Pieces -
4x2 HDMI Matrix Auto Distribution Switch With 1080p 3d SupportUS$ 30 - 40MOQ: 10 Pieces
-
High Quality HDTV HDMI Matrix 4x2US$ 50 - 55MOQ: 10 Pieces
-
HDTV HDMI Matrix 4x4US$ 45 - 50MOQ: 1 Piece
-
4x4 HDMI Matrix With IR Supports 3D 1080PUS$ 50 - 60MOQ: 2 Pieces
Brand Name
Yunzuo or customized
Model Number
HYJ-3402-V0
Place of Origin
Guangdong, China
Specifications
HDMI matrix switcher for 2 displays HDTV led tv lcd tv1.input: 4xHDMI, output: 2xHDMI +L/R audio
2.CE FCC RoHS
3.OEM

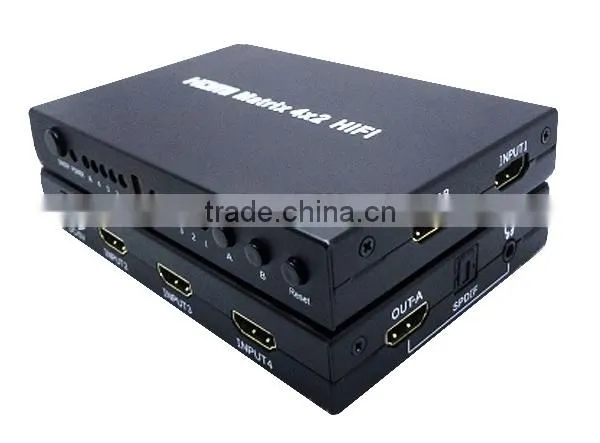

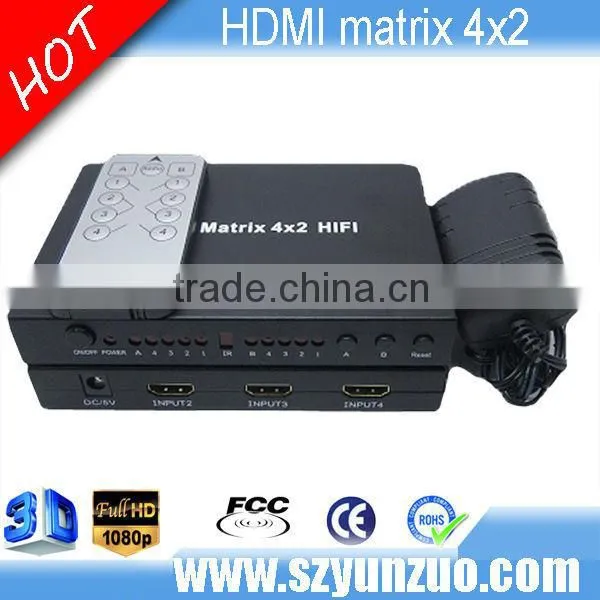

HDMI matrix switcher for 2 displays HDTV led tv lcd tv

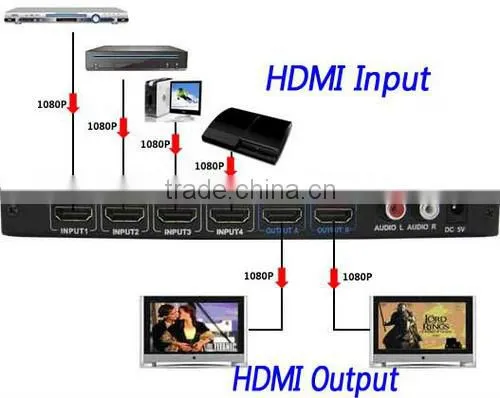

The HDMI 4x2 Matrix routes high definition video in multiple resolutions up to 1080p plus
multichannel digital audio from any of the four HDMI sources to two displays.
It eliminates the needing of disconnects and reconnects sources to a display equipped with one input. It works
with HD-DVD players, Blue Ray DVD, PS3, and satellite set top boxes that connect to two HDMI displays.
Every source is accessible at all times by any display by selecting it with an IR remote.
Matrix 4x2 can be used anywhere high-definition video applications are used. In HDTV installations, where
several sources need to be switched to different displays, SmartAVI's Matrix Switch Series is the perfect
solution.
* Supports audio output simultaneously: Stereo, Toslink and Coaxial
* It can be selected using Remote control for output A. 5.1CH can be sent by Toslink and Coaxial
* Supports 12bit per channel (36bit all channel) deep color.
* Supports uncompressed audio such as LPCM.
* Supports compressed audio such as DTS Digital, Dolby Digital
* Supports Resolutions: 1080p/1080i/720p/576p/480p/576i/480i Full-HD Chain: 1080p cascade
above 6 layers Support video color format: deep color 24bit/36bit
| Video | |
| Format | HDMI 1.3b [Deep Color, xvYcc color space supported] |
| DVI Compliance | Single-link DVI-D 1.1 |
| HDCP Compliance | 1.0/1.1 |
| Video Bandwidth | Single-link 340MHz [10.2Gbps] |
| Resolution | 480i,480p,720i,720p,1080i,1080p |
| Input Interface | (4) HDMI[7.1ch audio & video] |
| Output Interface | (2) HDMI[7.1ch audio & video] |
| Connector | Type A[19-pin female] |
| Maximum Distance | 25 ft. |
| Control | |
| Front Panel | Tact Switch |
| IR | Via Remote Control with IR Type 3 |
| Other | |
| Power | External 100-240 VAC/5VDC2A @10W |
| Dimensions | 6.625”W x 1”H x 2.875”D |
| Weight | 0.8 lbs. |
| Approvals | UL, CE, ROHS Compliant |
| Operating Temp. | 32-131°F (0-55 °C) |
| Storage Temp. | -4-185 °F (-20-85 °C) |
| Humidity | Up to 95% |
