Best spare parts Portable hydraulic tester calibration standard pressure gauges
- 100 Unit / Units per Month
- Qingdao
- High quality easy to control Portable hydraulic tester pressure gauge
- China factory direct sales low noise hydraulic drive motor for harvester producer
- Good service Hydralic Pump used in Excavator hydraulic pump parts
- China factory direct sales low noise mixer truck hydraulic motors for harvester producer
- Highland small hydraulic motor pump PV22 piston pump
- China factory direct sales low noise low speed high torque hydraulic motor for harvester producer
Product Details
Place of Origin: | Shandong, China | Brand Name: | HighLand | Model Number: | MYHT |
Theory: | Other, Hydraulic | Structure: | Piston Pump | Usage: | Other, Pump and accessories |
Standard or Nonstandard: | Standard | Fuel: | Gasoline | Pressure: | Other |
Application: | Other |
Packaging Details
In box
Product Description
Specifications
calibration standard pressure gauges1.Flow: 200-800L/Min.
2.Temperature: 150 Degree Celsius
3.Pressure: 420bar
4.Weight:
1. Our engineer can produce the special equipment according to the requirements of different clients .We have our own factory
.Wecan provide highly quality .

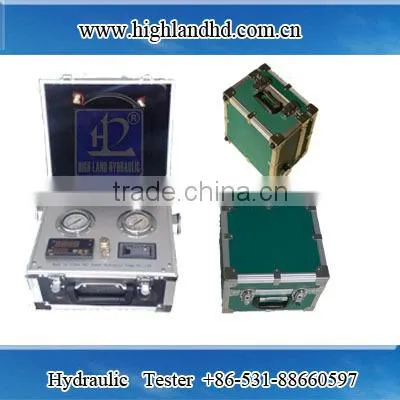

Portable Hydraulic Tester
1 MYHT-1-2
200l/min, 150 °C 420 bar
2 MYHT-1-4
400l/min, 150 °C 420 bar
3 MYHT-1-5
500l/min, 150 °C 420 bar
4 MYHT-1-7
700-800l/min, 150 °C 420 bar
Integration design for testing hydraulic pump, motor, valve or transmission
Easy to and instant use
Ideal for testing hydraulic system and prevent from breakdown arising.
Shift Switch for reading flow and temperature
Built-in loading valve
Accurate measurement
One-way load
Light weight, portable, convenient
Chargeable Lithium Battery (12V) with big capacity and long useful life
Warning:
The loading valve should be at turn-on position. Otherwise, danger will arise.
Only the test result is precise with oil temperature kept at 30
°Cor above
Open loading valve before test
Cut off power after completion of test
Maintenance
Load valve: In correct connection of power, if the load valve could not work, check if there is any jam inside it.
Battery: The battery is able to continuously work over 30 hours and should be charged 4—8 hours for one time.
Flow Meter: It might because of pollutant if the flow meter is not able to show data normally. In this case, contact the
manufacturer to solve this problem.
Company Profile
Profile
Jinan High Land Hydraulic Pump Co., Ltd. , a professional high-tech enterprise that combines hydraulic design, manufacturing and maintenance. High Land owns strong ability of R & D, first-class scientific management elites and advanced equipment for manufacturing and testing.
Hydraulic Pump
Hydraulic Comprehensive Test Bench
Digital Hydraulic Test Bench
MYHT Portable Hydraulic Tester
Hydraulic Pump Parts
Service: On-site technical advisory for Hydraulic System
Maintenance: Hydraulic Pump or Motor imported or made in China
Jinan High Land Hydraulic Pump Co.,Ltd.
Address:N0.26, Beiyuan Street, Licheng District, Jinan
Tel: 0086-0531-88796130 88770136
Fax: 0086-0531-88796120
Technical Support: 13805406089
Post Code: 250100
Hydraulic Digital Test Bench
Maintenance and test equipment for testing Hydraulic Pump, Motor
Parameters:
Flow: 300-500L/Min
Pressure:35Mpa
Power: 75-250KW
Motive Power: Hydraulic Electromotor, Frequency Conversion Electromotor, Diesel Engine Drive
Portable Hydraulic Tester
MYHT Portable Hydraulic Tester is applicable for testing flow, pressure, temperature of hydraulic system of construction equipment. It widely absorbs advanced technical experience of international peers and has filled the blank of this field in China.
Potent No.: ZL 2005 2 0080054.X
Parameters:
Flow: 200---800L/Min.
Precision:1%
Pressure: 420bar
Temperature:150
Weight: 6.2-10.5kg
Product: Hydraulic Pump, Hydraulic Comprehensive Test Bench, Digital Hydraulic Test Bench, Portable Hydraulic Tester
Service: on-site technical advisory for hydraulic system, system reform, parts test
Maintenance: Hydraulic Piston Pump, Piston Motor, Valve, Sauer Pv20,90 series RexrothA10V, A4V, A11series, Kawasaki K3V, NV series, Komatsu, CAT
