2014 Hot Sale China Low Price High quality Symbol Date Code Desktop Cnc Pneumatic Marking Machine for Metal Nameplate
DeDescription:
Features:
- The metal marking machine serial number is automatically incremented and the value optional.
- The software can be auto updated with the date and printed.
- The software is with the function of auto adjustment and trace.As the marking location changes,the marking needle can move to the new location.
- Input methods using manual input, made by different contents of different type of print documents, workpiece management.
- This machine with graphics editor print function, the user can need according to oneself, use AUTOCAD editing some simple graphics, through this marker print system in the printed by marking. It’s also with the CORELDRAW,PHOTOSHOP and others.
- The software can directly mark the scale
- The software owns the output function of Diametric.
- Many characters for optional, as more than 200 types English characters.
- It can mark different characters same time with the rotary angles.
- There is data record and query function with the machine software.
- The software can read the data direct from the textfile.
- There is external routine interface in the software.Through the SQL script,it can connect the external database.
- Automatically marking function after start without human intervention.
- Non paint break-up after marking.
Marking contents:
Arabic numerals, all kinds of logo, Common symbols, Chinese character, English letters, graphic, Roman alphabets,VIN codes,Automatic date printing , automatic production Numbers and other designated languages on any metal material

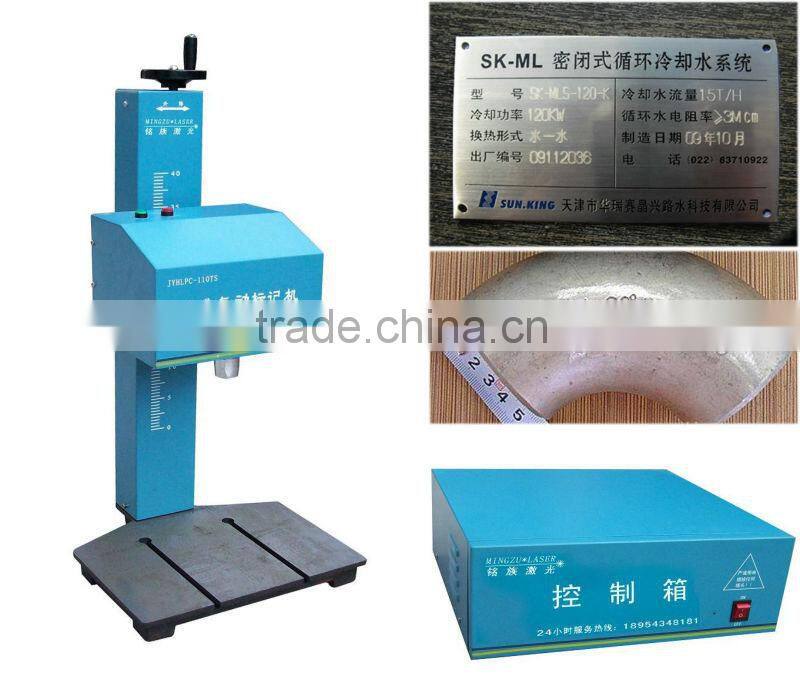

Product Display(Desktop)
Applications
It is widely applied to many industries, such as nameplates, framework, engine number and the surface of large parts, suitable for Car-refitting Factory, truck service station, radiator, front axle, wheels and other factory.

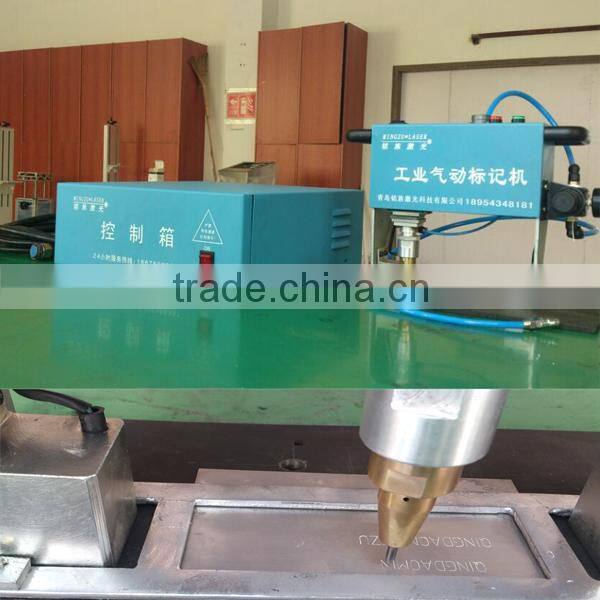

PRODUCT IMAGE(Portable)
Technical Parameters:
| Type of Machine | Portable Pneumatic Marking Machine | |
| Product model | MZ-PMP1890/1590 | |
| Marking Range | 180mm×90mm/ 150mm×90mm | |
| Pressure | 0.3—0.7MPa | |
| Power | <150W | |
| Power Supply | 220V | |
| Marking Depth | 0.01—1mm(depend on the material) | |
| Working Temperature | -10°--40° | |
| Marking Speed | 5—120 character /min | |
| Marking Dontents |
|
Marking Samples:
System Standard Configuration
Number |
Name |
Main Configuration |
Quantity |
Remarks |
1 |
control cabinet |
subdividing drive |
1 |
M432 |
|
Mingzu Photoelectric control board | ||||
Power Supply | ||||
2 |
Marking Head |
PE linear guide |
1 |
90×110mm 90×180mm |
cog belt | ||||
electromagnetic valve | ||||
stepper motor | ||||
3 |
Cable |
19-core cable |
1 |
3meter |
telecommunication cables |
1 |
1.5 meter |
||
4 |
Desk tool |
Lifting height:500mm |
1 |
Our after- sale service:
We have one year guarantee for the machine and 3 months guarantee for consumables. We will provide an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer.
Competitive Advantage:
- Fine marking effect with fast speed and high precision
- Can be equiped with special workpiece fixture to achieve fast clamping
- Controlled by single chip microcomputer or industial computer
- Full of marking functions and cost-effective for you
- Good service and proven technology , you can rest assured to buy it!
