Specifications
Low price High Precision Laser Welding Machine for jewelry, stainless steel, electronic productsLaser power: 200W-400W

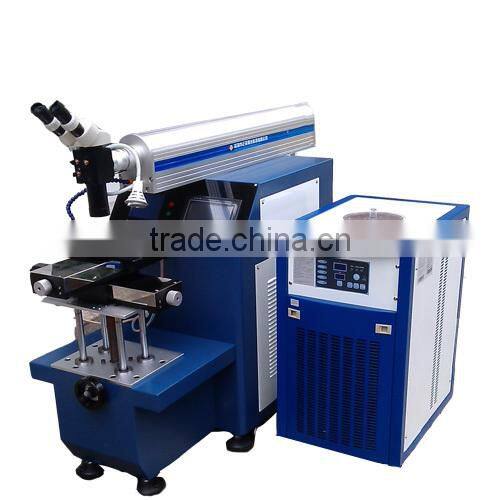

China Qingdao Metal Parts Stainless steel Electronic Products High Precision Laser Welding Machine
Quick Detail:
- High Precision
- Laser power: 200W/400W
- Professional software enables graphic or text to be instantly designed or processed.
- Flexible and easy operation.
Description
This machine adopts imported ceramic and metal reflecting cavity, pulse xenon lamp pumped to output 1064nm laser, mainly for welding thin materials, precision parts, can realize spot welding, butt welding, lap welding, sealing welding, high depth width ratio of weld width, Small heat influence area, low distortion, welding speed, welding seam smooth, beautiful welding gap, after welding the appearance is without processing or simply processing, welding quality is high, pore-free, can be controlled accurately, the focal spot size is small, high positioning accuracy.
PRODUCT IMAGE
Applications
It is widely applied to many fields, such as aviation, aerospace, sporting goods, jewelry, medical, instrumentation, electronic, mechanical mold processing, automobile and other industries, especially for gold and silver jewelry fill holes, spot trachoma, sewing patterns and inlaid parts repair claw foot site such as welding. Suitable for gold, silver, platinum, stainless steel, titanium and other metals and alloys, can also be used for complement trachoma tiny precision dentures, such as batteries nickel belt, IC lead, watch springs, tubes, electron gun assembly areas welding.
- Aviation, aerospace, sporting goods, jewelry, medical, instrumentation
- Electronic products, mechanical mold processing, automobile and other industries,
- Fill the hole of the gold and silver jewelry, spot welding trachoma, sewing patterns, inlaid or repair the claw foot of parts.
- Gold, silver, platinum, stainless steel, titanium and other metals and alloys
- Precision parts, such as batteries nickel belt, IC lead, watch springs, tubes, electron gun assembly .
Specifications:
Product model |
MZ-YW200 |
MZ-YW400 |
||
Laser Wavelength |
1064nm |
|||
laser power |
200W |
400W |
||
Modulating frequency |
0.5Hz—8Hz |
0.5Hz—20Hz |
||
The maximum energy of laser pulse |
30J |
|||
The maximum peak power |
6KW |
|||
The number of waveform |
50 |
|||
close-loop feedback control |
current feedback |
|||
Spot diameter |
0.2—1.5mm( can be regulated) |
|||
minimum molten pool |
minimum |
|||
depth of weld |
0.05--2mm |
|||
Machine power supply |
220V 50Hz 20A |
|||
Cooling method |
Water-cooling |
|||
Power of the Whole Equipment |
3.5KW |
7KW |
||
working conditions |
temperature:13°C~29°C, humidity:5%~75%, free of dust and well ventilated |
|||
Overall dimension |
980×570×1020mm |
|||
Machine weight |
260Kg |
|||

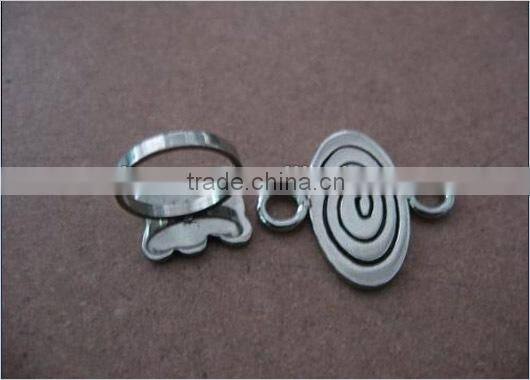

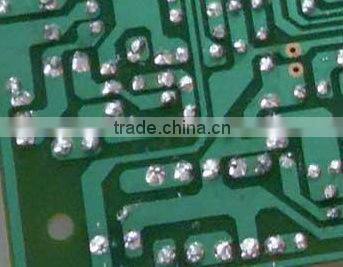

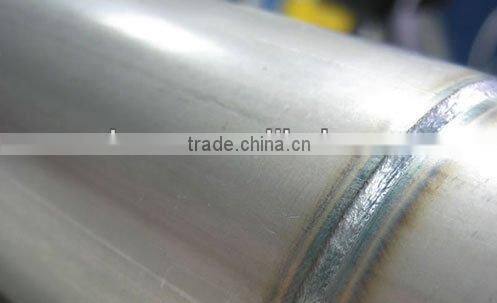

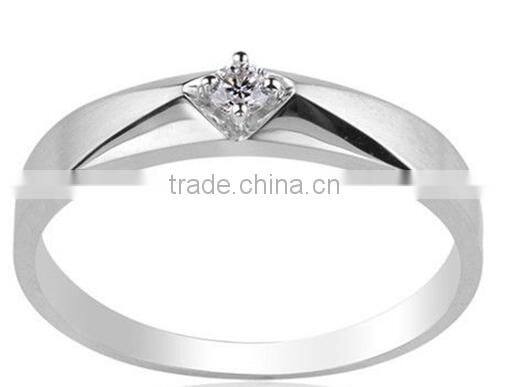

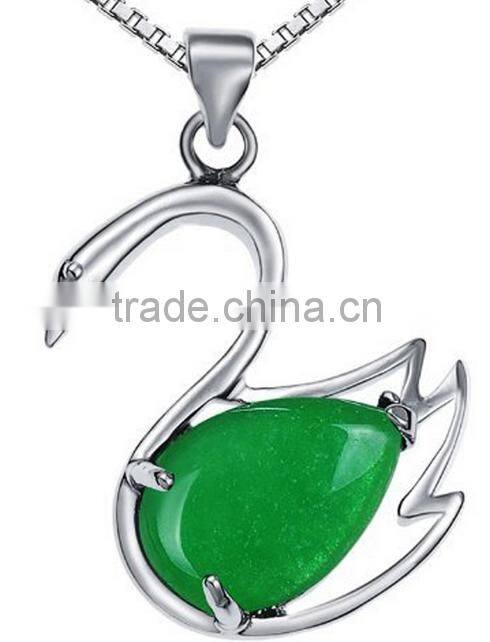

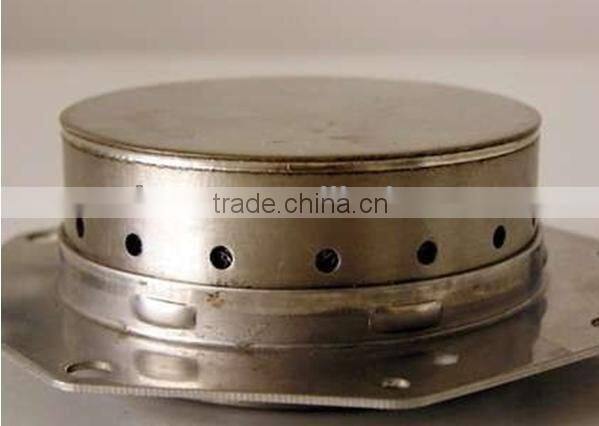

WELDING SAMPLES
Our after- sale service
We have one year guarantee for the machine and 3 months guarantee for consumables. We will provide an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer.
Competitive Advantage
Long Lifetime
Fine welding
High Speed
High stability

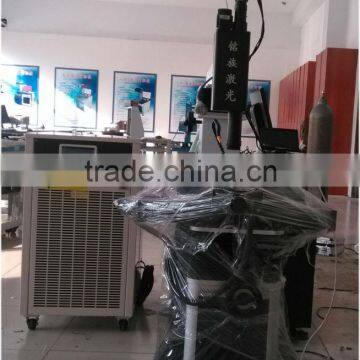

Our Company Image
Qingdao Mingzu Laser Technology Co., Ltd. is a professional manufacturer, and a high-tech enterprise engaged in the development and manufacture of laser engraving machines, laser cutting machines, laser marking machines, pneumatic marking machines, complete sets of laser processing equipment, as well as bamboo & craft gifts.
We have exported machine to USA, Brazil, Peru, Mexico, Germany, Poland, Turkey, Czechoslovakia, Ukraine, Morocco, Syria, Iran, Pakistan, India, Indonesia etc. And all of customers are satisfying the quality and after sales service. We win good reputation throughout the world by our service.
Mingzu Laser is a key enterprise of Qingdao Optical Valley of China.
Mingzu Laser----Professional Manufacturer of laser machine!
You can be confident, because we believe in quality!
Sincerely looking for Agent/Distributor all over the world
Mingzu Technology
Stainless steel electronic products High Precision for jewelry Laser Welding Machine
China Qingdao Metal Parts Stainless steel Electronic Products High Precision Laser Welding Machine
