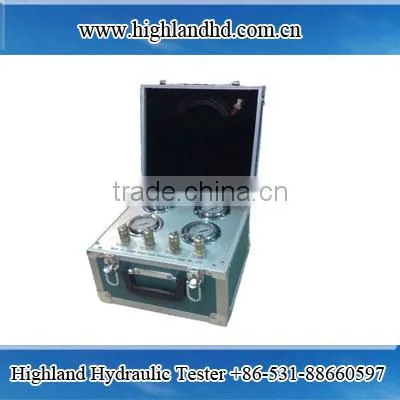

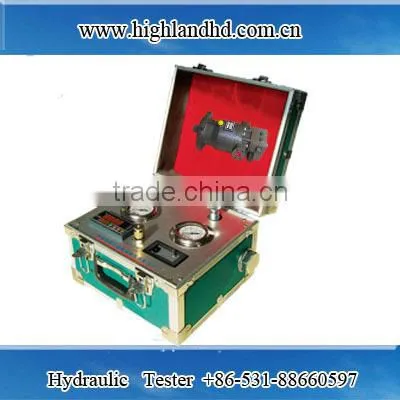

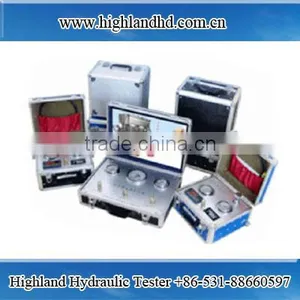

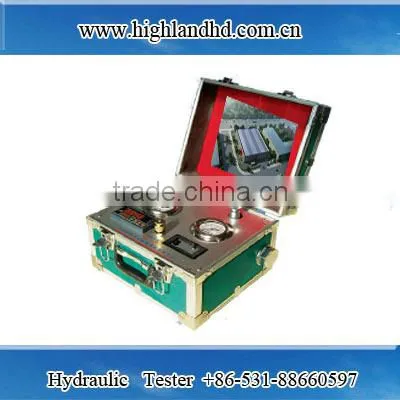

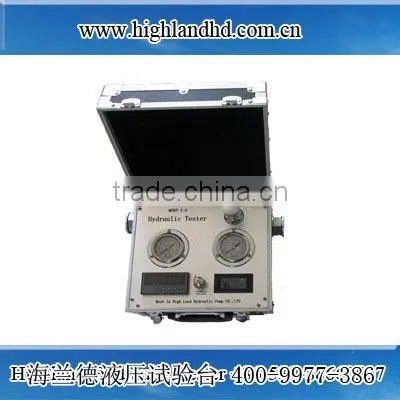

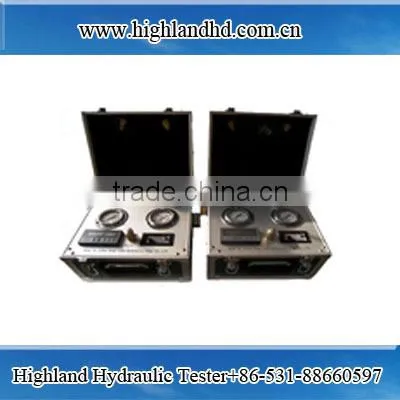

hydraulic pressure tester and flow meter
Portable hydraulic tester, hydraulic system that is able to reflect the performance of the main parameters (pressure, flow,
leakage, temperature and speed, etc.) for field testing without removal system piping instrumentation. Which is characterized by
rapid measurement of system pressure, flow, power and other key parameters, and thus can determine exactly which a
hydraulic component is faulty. Detection saves maintenance time and increases productivity.
MYHT series portable hydraulic tester is a method for detecting hydraulic pumps, hydraulic motors, hydraulic valves and
hydraulic system failures special instrument.
- Easy to use, the operator does not require full-time training.
-MYHT hydraulic system hydraulic tester is an ideal tool for accident prevention.
- In the case of normal operation of equipment, technicians can safely and easily accomplish online detection tasks.
- Simultaneous online measurement of flow, pressure, and temperature.
- Patent No.: ZL 2005 2 0080054.
-X traffic to 500L/min
- Pressure to 420bar
- Single, bi-directional load
Instrument features:
- Accurate measurement of flow, pressure, temperature.
- Security hydraulic oil can flow in both directions, uniaxial loading, both to protect personnel protection instruments.
- Quick hydraulic equipment, hydraulic pumps, hydraulic motors, hydraulic valves, hydraulic cylinders online test. Simple
connection.
- Light Meters Light weight, small size and easy to carry. Beautifully designed, easy to clean.
- Power Meter optional 12V lithium battery can be recharged, large capacity, long life.

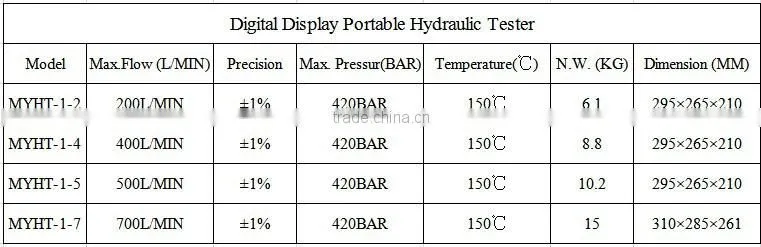

Technical Specifications :
