pressure gauge

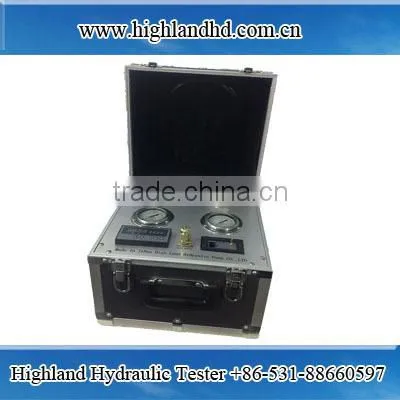

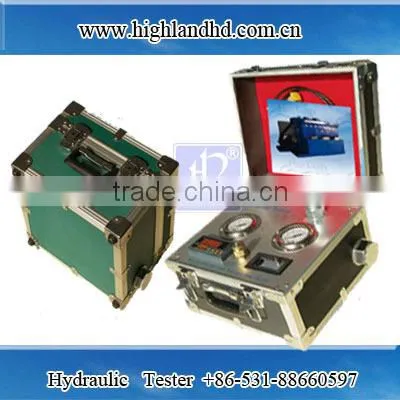

hydraulic pump tester Suitable for on-site test for hydraulic pump of various construction machines
Models and specifications
Model MYHT-1-2
Oil temperature range -20—150°C
Maximum test flow 200L/min
Overall dimensions 280x245x172mm
Flow precision: ±1%
Weight 6.1Kg
Maximum test pressure 420bar Power: Rechargeable lithium batteries12V
Model: MYHT-1-4
Oil temperature range -20—150°C
Maximum test flow 400L/min
Overall dimensions 280x245x172mm
Flow precision ±1% Weight 7.2 Kg
Maximum test pressure 420bar
Power: Rechargeable lithium batteries12V
Model MYHT-1-5
Oil temperature range -20—150°C
Maximum testing flow 500L/min
Overall dimensions 280x245x172mm
Flow precision ±1%
Weight 10.5 Kg
Maximum test pressure 420bar Power: Rechargeable lithium batteries12V
Model MYHT-1-7
Oil temperature range -20—150°C
Maximum testing flow 800L/min
Overall dimensions 280x245x172mm
Flow precision ±1%
Weight 17.5 kg
Maximum test pressure 420bar
Power Rechargeable lithium batteries12V
Festures:
Integration design for testing hydraulic pump, motor, valve or transmission
Easy to and instant use
Ideal for testing hydraulic system and prevent from breakdown arising.
Shift Switch for reading flow and temperature
Built-in loading valve
Accurate measurement
One-way load
Light weight, portable, convenient
Chargeable Lithium Battery (12V) with big capacity and long useful life
Maintenance
Load valve: In correct connection of power, if the load valve could not work, check if there is any jam inside it.
Battery: The battery is able to continuously work over 30 hours and should be charged 4—8 hours for one time.
Flow Meter: It might because of pollutant if the flow meter is not able to show data normally. In this case, contact the
manufacturer to solve this problem.
