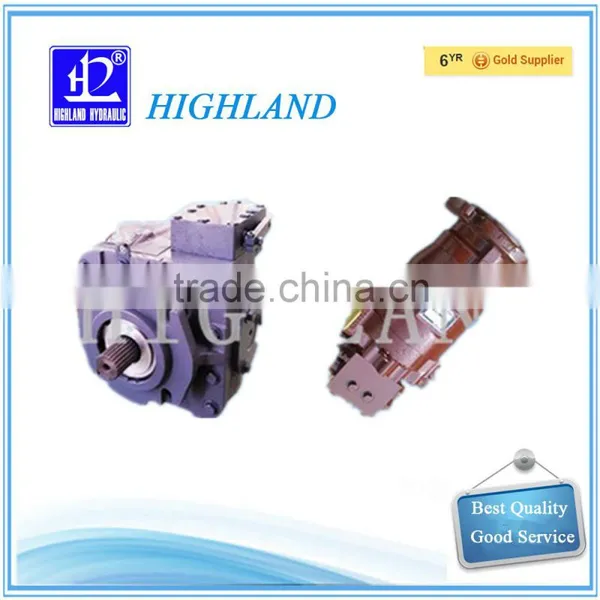

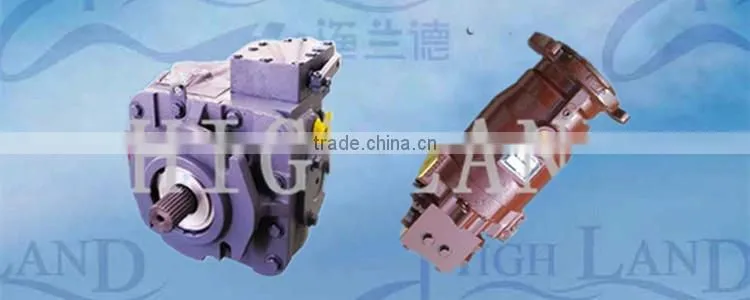

direct buy china 24v hydraulic pump motor
Technology Data:
Hydraulic Motor:
direct buy china 24v hydraulic pump motor |
Models of hydraulic motor |
MF20 |
MF21 |
MF22 |
MF23 |
Max. Displacement( ml/r) |
33.3 |
51.6 |
69.8 |
89.0 |
Max. Speed( r/min) |
3590 |
3500 |
2810 |
2590 |
Out torque at 35Mpa(Nm) |
176 |
180.6 |
369 |
471 |
Rated Pressure(Mpa) |
21 |
21 |
21 |
21 |
Weight(Kg) |
30 |
34 |
40 |
47 |
Hydraulic Pump:
| direct buy china 24v hydraulic pump motor |
| models of hydraulic pump | PV20 | PV21 | PV22 | PV23 |
Max. Displacement( ml/r) |
33.3 | 51.6 | 69.8 | 89.0 |
Max. Flow( l/min) |
119.54 | 180.6 | 196.14 | 230.51 |
Charge pump displacement( ml/r) |
12.3 | 16.2 | 18.03 | 18.03 |
| Max. Speed( r/min) | 3590 | 3500 | 2810 | 2590 |
| Weight( kg) | 45 | 53 | 63 | 78 |
Recommended Models:
|
Volume of Concrete Mixer |
3-5(m³) |
6-9(m³) |
10-12(m³) |
12-16(m³) |
|
Hydraulic Pump Model |
PV20 |
PV20 |
PV20 |
PV20 |
|
Hydraulic Motor Model |
F20 |
MF20 |
MF20 |
MF20 |
|
Geabox Model |
HLMC-30 |
HLMC-30 |
HLMC-30 |
HLMC-30 |
Application Range:
- Paver
- Harvester
- Grain Drill
- Road Roller
- Corn Harvester
- Wheat Harvester
- Reaping Machine
- Rice Transplanter
- Concrete Mixer Truck
- Pharmaceutical Machinery
- Continous Soil Mixing Machine
- agricultural machinery
- and other heavy construction machinery
Characteristics:
1.axial pistion motor/pump
2.Static hydraulic transmission device
3.fixed displacement hydraulic piston motor
4.variable displacement hydraulic piston pump

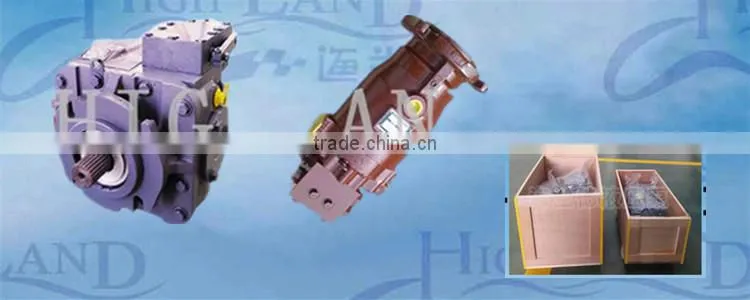

Packing of 24v hydraulic pump motor:
wooden case, suitable for long distance transportation
