1.Brief Introduction
Key advantages of Magnetic wire tensioners:
These magnetic tensioners use a device containing a permanent magnet as a noncontact method of generating a variable resistance to rotation of the main
wheel of the tensioner, thus maintainingwire tension at the set value for longer
periods than their mechanical counterparts with greatlyreduced requirement for
adjustment.
Polished ceramic eyelets and guide rollers at each point of contact protect the insulating
enamel from mechanical damage.
The performance of these magnetic wire tensioners is exceptional given the low cost,
providing outstanding value for money.
Captive roller on tension arm is easy to thread, eliminates chance of losing wire.

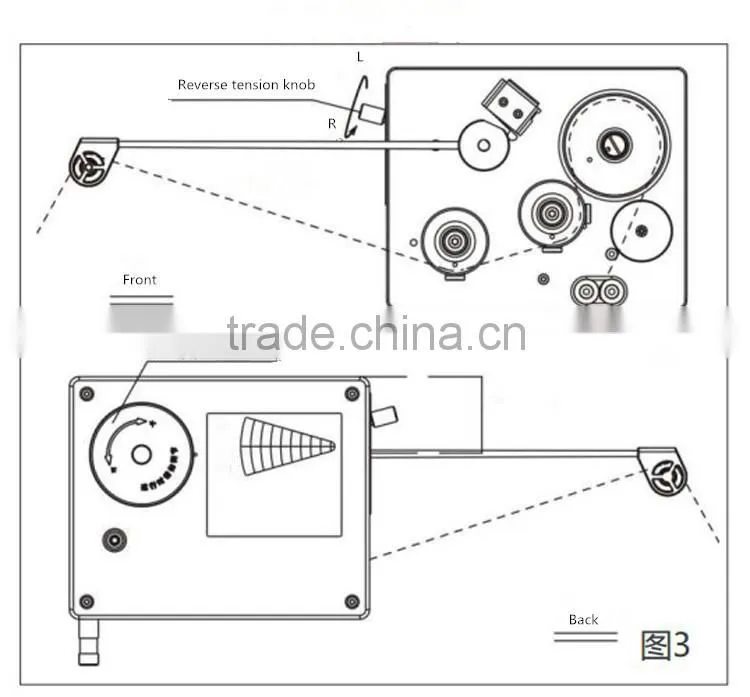

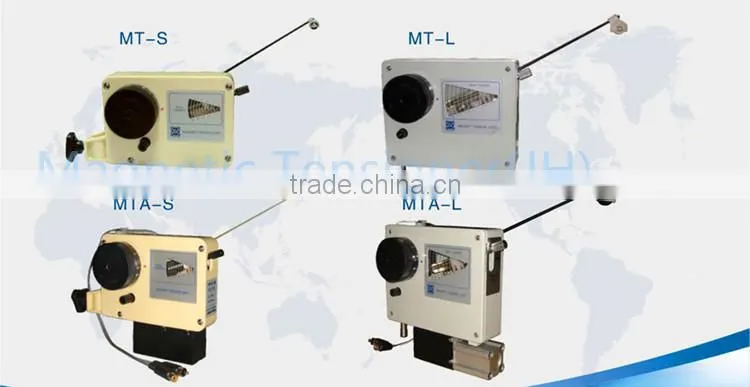

2.More details of Products
2.Relative Specification for choose
| Model | Applied wire(mm) | Tension scope(g.f) |
| JH-MT30 | φ0.02-0.06 | 3-30 |
| JH-MT100 | φ0.04-0.12 | 10-100 |
| JH-MT200 | φ0.06-0.16 | 20-200 |
| JH-MT300 | φ0.08-0.23 | 30-300 |
| JH-MT400 | φ0.08-0.25 | 50-500 |
| JH-MT600 | φ0.12-0.35 | 80-600 |

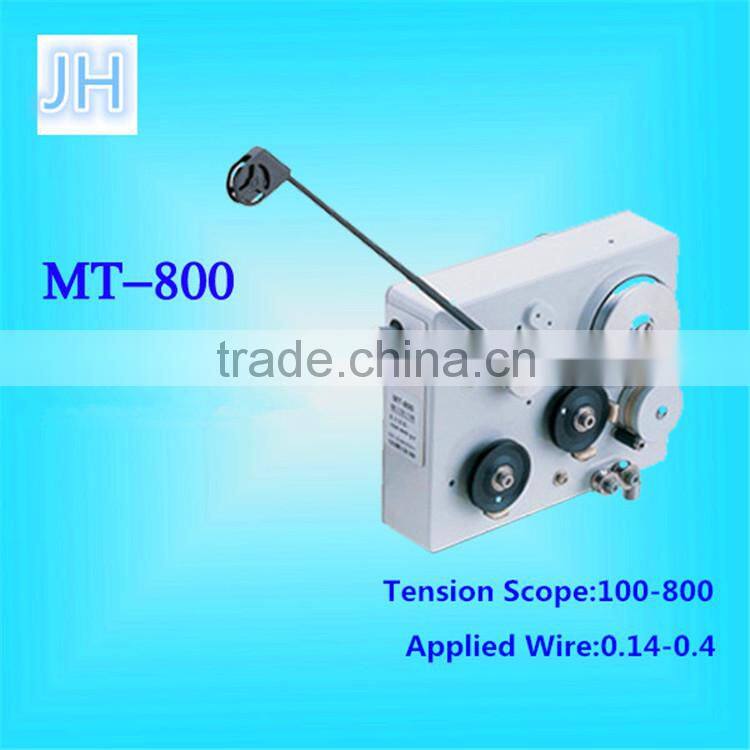

| JH-MT800 | φ0.14-0.4 | 100-800 |
1.Packaging
All of our products will be packed in strong caron with foam insert
