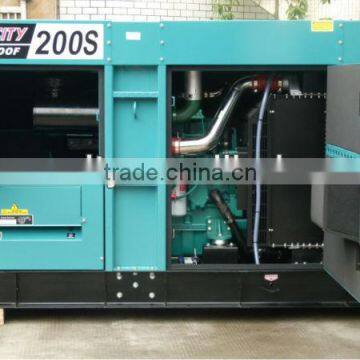

200KVA diesel power generators
- 1000 Set / Sets per Month
Product Details
Place of Origin: | Fujian, China | Brand Name: | Powercity | Model Number: | PDG-200SC |
Output Type: | AC Three Phase | Speed: | 1500/1800 | Frequency: | 50/60 |
Product Description
Specifications
Rugged dependablity, high quality and innovation make Powercity Soundproof and Weatherproof Generator set the leader......FEATURES AND BENEFITS
- Rugged dependability, high quality and innovation make Powercity Soundproof and Weatherproof Generator set the leader in outdoor silent-type generator design and development, providing the power you can expect.....
- The standard Powercity Intelligent Control Panel allows user friendly diagnostics including extensive engine and alternator information.
- The Powercity Diesel Generator set with advanced design and development processes uses technology to lower sound and vibration. Our sound shields minimize noise and deliver better sound quality, compact design minimizes transportationcost and warehousing space.
- Oversize Alternator mounting to minimize unbalance problem and improve shock load voltage fluctuation and heavy duty use
- Certified to ISO9001:2000 and CE certificate
- Our qualified and competent generator designers have more than 25 years experience working with other brands around the world comes up with its own brand POWERCITY generators today...combining quality and affordability.
STANDARD FEATURES
- Powercity advance digital electronic controller providing extensive diagnostic capability. The GCU-10 starts and stops the generator and at the same time indicates the operation status and fault condition. Shut down with diagnostic indicator light for: high engine coolant temperature, low oil pressure, over speed, under speed, start failure, emergency stop, low battery voltage, over crank and many more input. The DSP-10 digital display showing real voltage, ampere, frequency, operating hours and battery voltage. The GCU-11R relay module is added to simplify wiring between the GCU-10 control module, DSP-10 and genset. Complete with engine oil pressure gauge, water temperature gauge, DC ammerter, metering test switch, panel light and emergency stop.
- Optimized ventilation design makes generator ventilation well
- Coolant overflow bottle to easily maintain coolant level
- Combustion ail filter with washable element to prolong engine life
- Full flow lube oil filter
- Oil and fuel drain valve
- Primary and Secondary fuel filter
- Captive focalized mounting systems
- Vibration Isolators
- Single point lifting bracket for easy installation
- Closed crankcase ventilation system with filter to eliminate engine room contamination
- Factory load tested
MAIN PARAMETER
Model | PDG-185S | |
Prime Output (KVA) | 185 | |
Frequency (HZ) | 50/60 | |
Engine Model | YC6M240Z | |
Type | Vertical, Inline, Water-cooled, 4 stroke | |
Cylinder No.* Bore* Stroke | 6*120*145 | |
Piston Displacement (L) | 9.839 | |
Output Rating Continuous (Kw/rpm) Standby | 159/1500 | 176/1800 |
174/1500 | 193/1800 | |
Fuel Con. @75% Load (L/H) | 25.2 | 30.4 |
Lubricant capacity (L) | 28 | |
Battery Capacity (V-AH) | 12V-120Ah*2 | |
Overhaul Period (H) | =10,000 | |
Alternator Model | Powercity SLG-274G | |
Fuel Tank Capacity (L) | 300 | |
Sound Level dB(A) | 77/79 |
POWERCITY AC ALTERNATOR DETAILS
Model | SLG-274G | |
Frequency (HZ) | 50/60 | |
Output Rating (KVA) | Continuous | 175/210 |
Standby | 192/230 | |
Phase | Three Phase | |
Rated Voltage | 220V-440V | |
Power Factor | 0.8 (Lagging) | |
Voltage Regulation | Within±1.5 | |
Excitation | Brushless, Rotating exciter (with AVR) | |
Insulation | Class H |
- Alternator with 14% higher than genset rated output
- Brushless self-excitation with permanet magnet
- Standard degree of protection IP23
- With Fan cooling
- AC excitation, rotating rectification tube
- Stator grease insulation covered
