Help CenterSingle-head Automatic Hydraulic Metal Pipe and Tube Shrinking Machine
Related Products
-
Double-head Automatic Hydraulic Metal Tube Expanded Expanding MachineUS$ 3,000 - 30,000MOQ: 1 Set -
Single-head Automatic Hydraulic Metal Tube Expanded Expanding MachineUS$ 2,000 - 50,000MOQ: 1 Set
-
Double-head Automatic Hydraulic Metal Steel and Aluminum Pipe and Tube End Forming Machines MachineryUS$ 3,000 - 30,000MOQ: 1 Set
-
Single-head Automatic Hydraulic Metal Steel and Aluminum Pipe and Tube End Forming Machines MachineryUS$ 2,000 - 50,000MOQ: 1 Set
-
Double-head Automatic Hydraulic Metal Steel Pipe End Reducer MachineUS$ 3,000 - 30,000MOQ: 1 Set
Specifications
Shrinking machine1. Japan Yuken valve
2. Forming, reduce, expand and wrinkle
3. PLC control
4. CE,ISO9001
Single-head automatic hydraulic metal pipe and tube shrinking machine
Our company:
We are speciallzed in pipe bending machine,pipe ending forming machine, pipe rolling machine,pipe cutting machine and pipe chamfering machine. Our products are wildly used for automative industry, shipbuilding industry, the boiler industry,fitness equipment ,bicycles ,electric cars,motorcycles ,furniture industry and so on.
Main parameter:
| Specification/model | TM40 | TM60 | TM80 | TM100 | TM110 |
| Max bending capability | Φ40×2.0t | Φ60×2.0t | Φ80×2.0t | Φ1000×2.0t | Φ110×2.0t |
| Max working length | 100mm | 130mm | 150mm | 150mm | 150mm |
| Oil pressure | 12Mpa | 12Mpa | 12Mpa | 14Mpa | 14Mpa |
| Working speed | 100mm in 3-4sec | 100mm in 3-4sec | 130mm in 5-6sec | 140mm in6-7sec | 140mm in 8-9sec |
| Machine size | 200×55×130cm | 200×60×140cm | 290×70×140cm | 300×75×150cm | 350×90×180cm |
| Machine weight | 1100kg | 1250kg | 1600kg | 1800kg | 2500kg |
| Notes | The length of pipe according to customer | ||||
Features:
Shrinking machine
The machine is controlled by the computer, hydraulic drive, English screen display, man and machine dialogue operation, can choose manual. semi-automatic operation mode, movable pedal switch have start and emergency stop function.

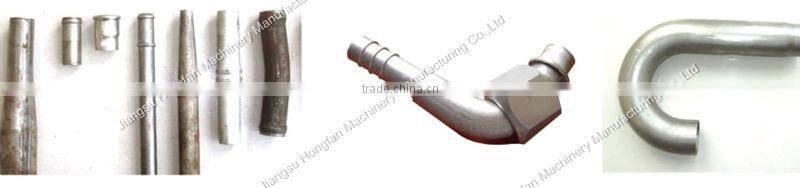

Process shapes: protrude, concave, joint, square, V type, and so on. Just according to the customer's requirements.
Can according to the pipe's length and adjust the diatance of machine head.
Use Japan Yuken valve.
The machine is convenient operation, stable function, high safe factor, is the perfect equipment for the pipe processing.
Pipe end forming machine, use liner guide as its carrier, make the operation free abrasion, good repetition, suitable for the iron pipe, furniture, automobile, car air condition, fuel pipe end treatment.
Inquiries are welcome at any time.
Photos of machines:
