Specifications
1.G690 laser wood engraving machine price2.600x900mm 60-130w
reldraw autocad photoshop
4.280 sets/month

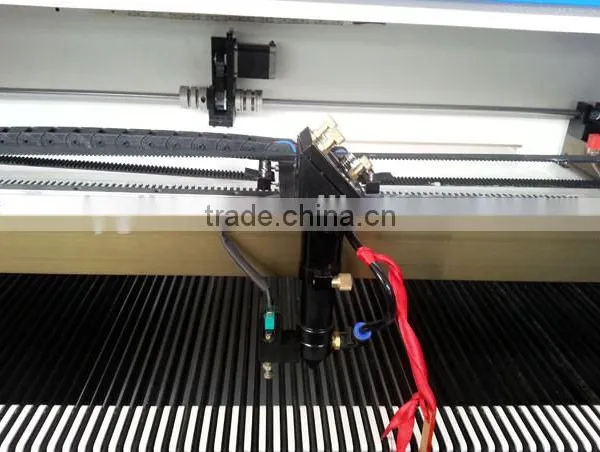

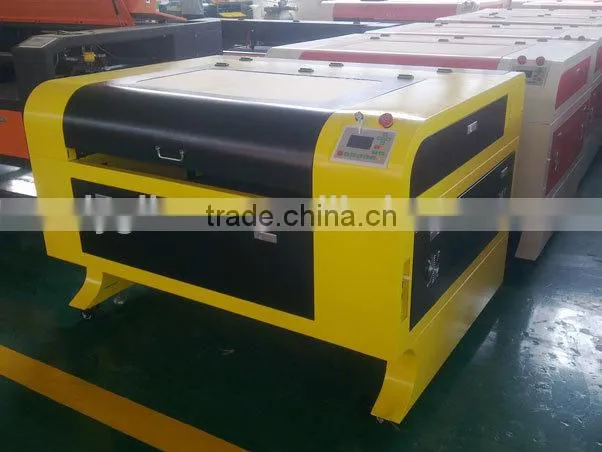

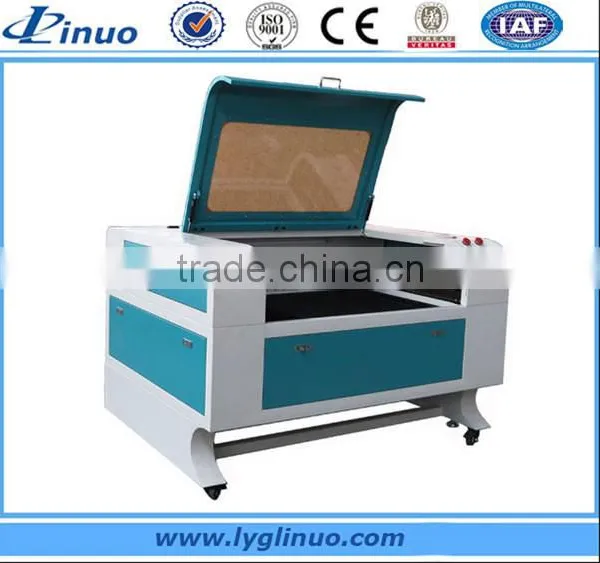

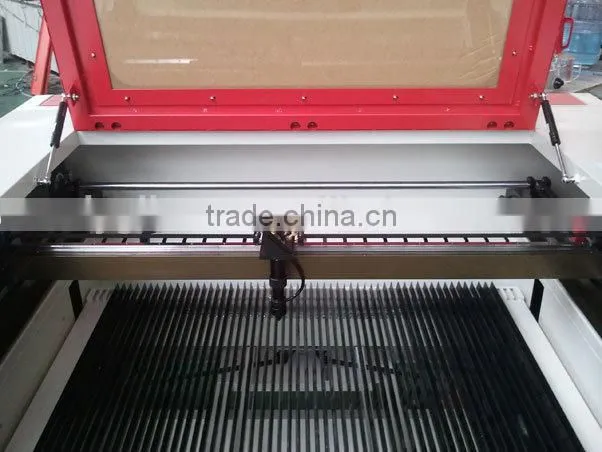

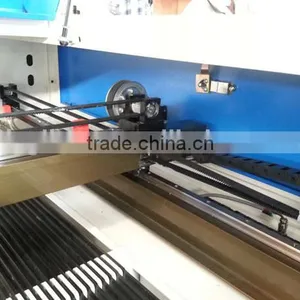

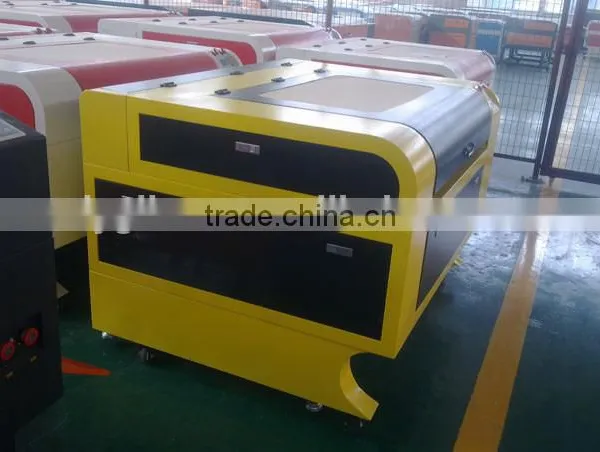

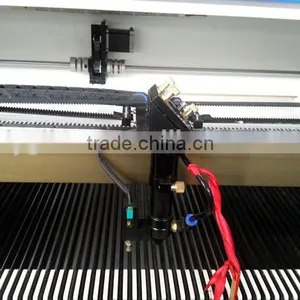

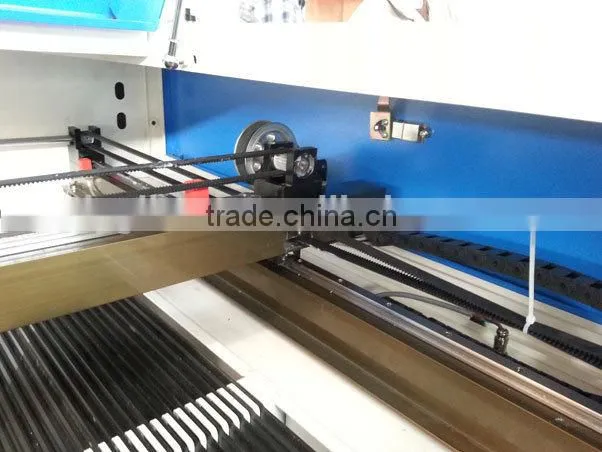

G690 laser wood engraving machine price
Applicable material:
Cloth, leather, fur, acrylic, plexiglass, wooden board, plastic, rubber,bamboo, products, resin and other non-metal materials.
Applicable industry:
The machine is suitable for cutting of garment and leather, package and printing, advertisement decoration, building upholster, art gift, computer embroidery, paper products, acrylic board industries, etc..
Technical parameters
Laser power: |
60-130W(optional) |
Laser Type: |
Hermetic CO2 glass tube |
Power supply: |
AC220/110,±10%,50/60HZ |
Working area : |
900x600mm |
Max moving speed: |
0-40000mm/Min |
Worktable: |
Lifting aluminium blade/ honey comb(optional) |
Locating precision: |
<0.01mm |
Mini Shaping character: |
character: 2x2mm, letter:1x1mm |
Operating temperature: |
5-35℃ |
Resolution ratio: |
≤4500DPI |
Control configuration: |
DSP |
Data transfer interface: |
USB(offline) |
System environment: |
windows2000/XP/Vista/Win7 |
Cooling way: |
water cooling and protection system |
|
Graphic format supported:
|
the files which CorelDraw, Photoshop, AutoCAD can identify(BMP, GIF,JPGE, PCX, TIFF,PLT, CDR.DMG etc.)
|
ompatible software: |
CorelDraw, AutoCAD |
Cutting thickness: |
0-20mm(depends on different materials) |
Color separation: |
up to 256 colors |
Protection when water supply stops |
yes |
Net weight/ gross weight |
260kg/320kg |
Machine dimension: |
1650x1330x1220mm |
|
Optional parts:
|
high grade cooling system/double-head/cylinder rotary axis/irregular rotary axis |
