LM1450A Universal Swivel Head Milling Machine
Product Description for LM1450A Universal Swivel Head Milling Machine

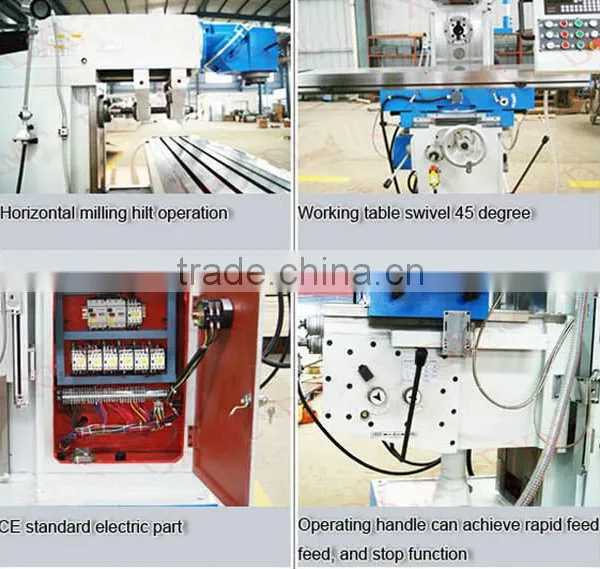

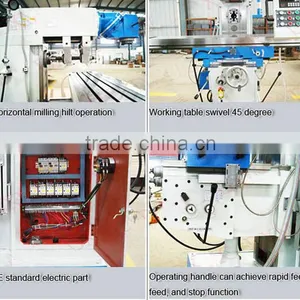

1.LM-1450A universal swivel head milling machine is based on theLM1450, installation of rotary table 45 degrees
cessing of a wide range ,three-axes automatic feeds
3. large torque and strong power,1.5KW
4.fast-moving 2000mm/min.
5.Spindle taper is ISO 50
6.according to CE Standard.
Specifications |
LM1450A |
Spindle taper |
ISO50 |
Difference from spindle axis to guideway(mm) |
505 |
Horizontal axis middle height |
0-480 |
Table size(mm) |
(1630) 1500*360 |
Table travel(mm) |
(1016) 900*400*420 |
Main motor |
4kw |
Feeding motor |
1.5kw |
Spindle speed |
60-1800 |
Overall dimensions(mm) |
2000*2000*2250 |
N.W/G.W (kg) |
2650/2850 |
Production&Workshop for LM1450A Universal Swivel Head Milling Machine
Packaging&Shipping for LM1450A Universal Swivel Head Milling Machine
Customer&Expo for LM1450A Universal Swivel Head Milling Machine
Companny information for LM1450A Universal Swivel Head Milling Machine
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines,bandsaw machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for LM1450A Universal Swivel Head Milling Machine
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
