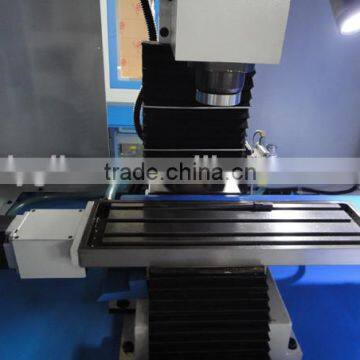

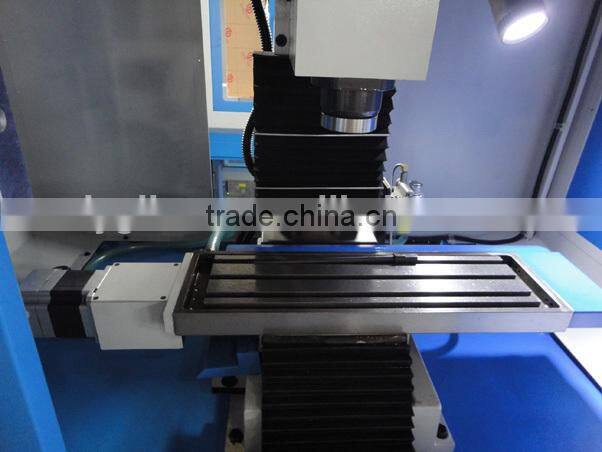

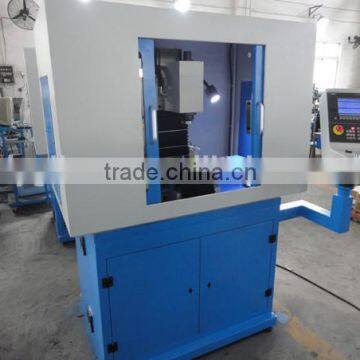

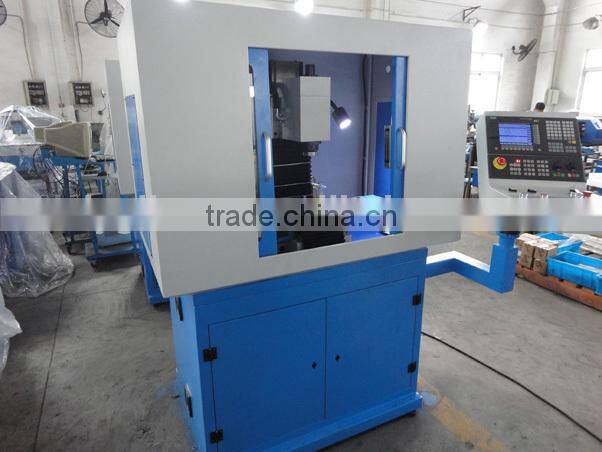

KX3S promotion education small cnc milling machine
Introduction:
-Worktable size--550x160 mm

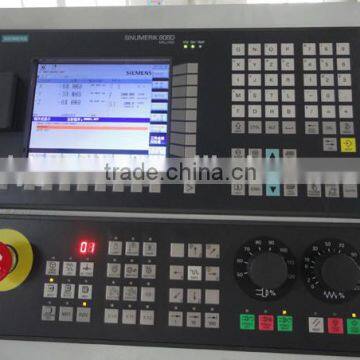

-PC based CNC sytem,SIEMENS 808D high reliability
-Automatic lubrication system
| KX3S | ||
| TABLE | Table size | 550×160mm |
| T slot (amount×width×distance) | 3×12mm×43mm | |
| Max. load | 30kg | |
| TRAVEL | X travel | 280mm |
| Y travel | 120mm | |
| Z travel | 270mm | |
| Spindle nose to table | 80-350mm | |
| Spindle center to column | 200mm | |
| SPINDLE | Spindle taper | MT3/NT3/R8 |
| Spindle motor | 1000w | |
| Spindle speed | 100-5000r/min | |
| FEED(STEPPER) | The max moving speed | 2000mm/min |
| The max feeding speed | 500mm/min | |
| Power of X/Y | 4Nm | |
| Power of Z | 6Nm | |
| FEED(SERVO) | The max moving speed | 5000mm/min |
| The max feeding speed | 1000mm/min | |
| Power of X/Y | 400W | |
| Power of Z | 750W | |
| ACCURACY | Positioning accuracy | 0.015mm |
| Repeatability accuracy | 0.01mm | |
| OTHERS | Power | 230/120V |
| Weight(NW/GW) | 380/460kg | |
| Overall dimension | 1280×895×1845mm | |
| Packing size | 1420×1060×2035mm | |

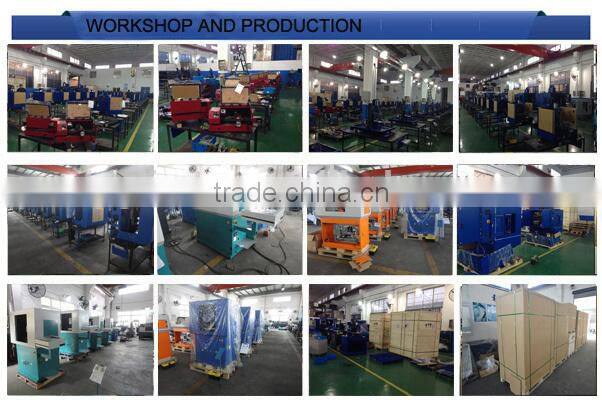

Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
