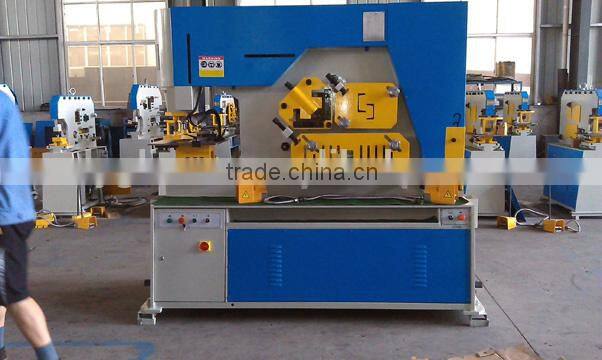

Linuo brand top quality ironworker tools
Features:
Hydraulic ironworker machine Q35Y can cut and punch all kinds of materials such as plate, square bar, angle, round bar, channel and so on.The hydraulic ironworker can also bend the plate below 500mm. All the components of hydraulic ironworker are of the highest quality in their safty, function, capability and maintenance.
Q35Y hydraulic ironworker function:
1.Punching
Full range of universal punches and dies are available.unique style allows for large angle iron punching and large channel punching.
Large viewing window on stripper swing away design for ease of operation.large two piece gauging table with rulers and stop as standard fittings.Quick change coupling nut and sleeve for rapid replacement of change.
2.Shearing
Round and square bar shear has multiple holes for a variety of sizes.Adjustable hold down device for round/square bar,channel/beam cutting.Large strong guarding for max safety.
The angle shear has the ability to cut angle at 45°both top and bottom leg.This gives the operator the ability to make a picture frame corner for perfect welds.Diamond shaped blade for quality cuts that is minimal material lost and deformity.
Easily adjustable hold-down device for accurate plate cutting.Large 15″squaring arm with inlaid scale.Special anti-distorted blade for quality cutting.Lower blade has four usable edges.There is screw allow for gap adjust no shim needed.
3.Notching
Unique design allows for cutting of angle and flat bar.Electrical interlock safety guard and three gauging stops for precise positioning.
4.Bending
Can also bend the plate below 500mm.
Q35Y hydraulic ironworker specification:
| Model | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 |
| Working pressure (KN) | 550 | 750 | 1100 | 1400 |
| Max. cutting thickness (mm) | 16 | 20 | 25 | 26 |
| Max. cutting length (mm) | 400 | 480 | 600 | 600 |
| Tensile strength of sheet metal (N/mm 2 ) | Below 450 | Below 450 | Below 450 | Below 450 |
| Shear angle (deg) | 7 | 8 | 8 | 8 |
| Stroke of ram (mm) | 80 | 80 | 80 | 80 |
| (stoke times) (min) | 8 | 8 | 8 | 8 |
| Depth of throat (mm) | 300 | 355 | 400 | 600 |
| Max. Capacities (mm) | 25× 16 | 30× 20 | 35× 25 | 38× 26 |
| Main motor (KW) | 4 | 5.5 | 7.5 | 11 |
| Length of machine tool (mm) | 1720 | 1860 | 2355 | 2680 |
| Width of machine tool (mm) | 790 | 790 | 960 | 1040 |
| Height of machine tool (mm) | 1880 | 1900 | 2090 | 2300 |
| Weight of machine tool (mm) | 1710 | 2200 | 4800 | 6200 |
| Profile | Round Bar | Square Bar | Equal Angle | T-Bar | I-Bar | Channel | ||
| 90° shearing | 45° shearing | 90° shearing | 45° shearing | |||||
| Q35Y-16 | 45 | 40× 40 | 125× 125× 12 | 50× 50× 5 | 120× 120× 12 | 60× 60× 8 | 126× 74× 5 | 126× 53× 5.5 |
| Q35Y-20 | 50 | 50× 50 | 140× 140× 12 | 50× 50× 5 | 140× 140× 12 | 70× 70× 10 | 160× 86× 6 | 160× 60× 6.5 |
| Q35Y-25 | 60 | 50× 50 | 160× 160× 14 | 60× 60× 6 | 160× 160× 14 | 80× 80× 10 | 200× 102× 9 | 200× 75× 9 |
| Q35Y-30 | 65 | 55× 55 | 180× 180× 16 | 60× 60× 6 | 180× 180× 16 | 80× 80× 10 | 280× 124× 10.5 | 280× 86× 11.5 |
Standard mould on Q35Y hydraulic ironworker:
1)a pair of punch die
2)a set of angle steel die
3)a set of round&square die or a set of channel die(one set for free)
4)a set of notching die
5)a set of shearing plate die
