Home > Manufacturing & Processing Machinery > Machine Tools > Punching Machine > Mechanical Ironworker
Mechanical Ironworker
US$ 4,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Power Source:
Hydraulic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Linuo Made in China Hydraulic IronworingUS$ 4,000 - 20,000MOQ: 1 Set -
Double Cylinder Hydraulic Punch and Shear IronworkerUS$ 4,000 - 20,000MOQ: 1 Set
-
Dual Cylinder Direct Factory Sales Hydraulic Ironworker MachineryUS$ 4,000 - 20,000MOQ: 1 Set
-
Q35Y-30 Dual Cylinder Hydraulic Ironworker ToolUS$ 4,000 - 20,000MOQ: 1 Set
-
Q35Y-20 Hydraulic Ironworker Machine, Punching and Cutting IronworkerUS$ 4,000 - 20,000MOQ: 1 Set
Condition
New
CNC or Not
Normal
Power Source
Hydraulic
Place of Origin
Jiangsu, China
Brand Name
LINUO
Model Number
Q35-16
Voltage
380V
Power(W)
4kw
Weight
2830kg
Dimension(L*W*H)
1877*1945*725mm
Certification
CE, ISO9001
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
mechanical ironworker
Features:

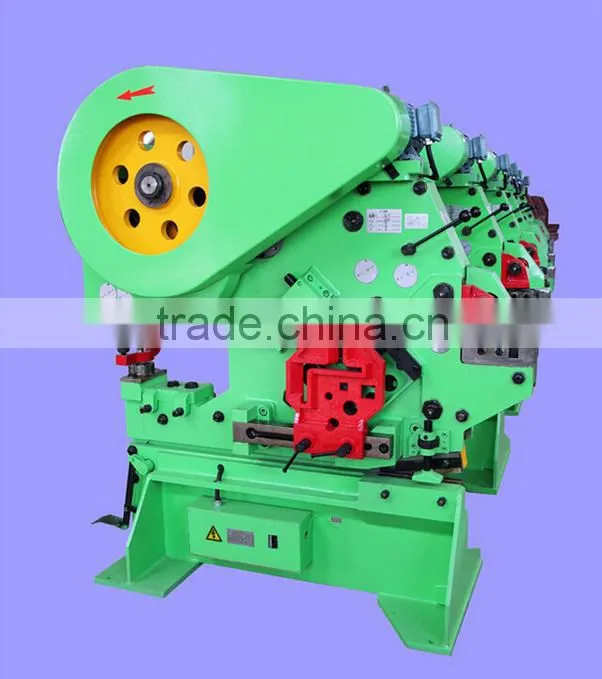

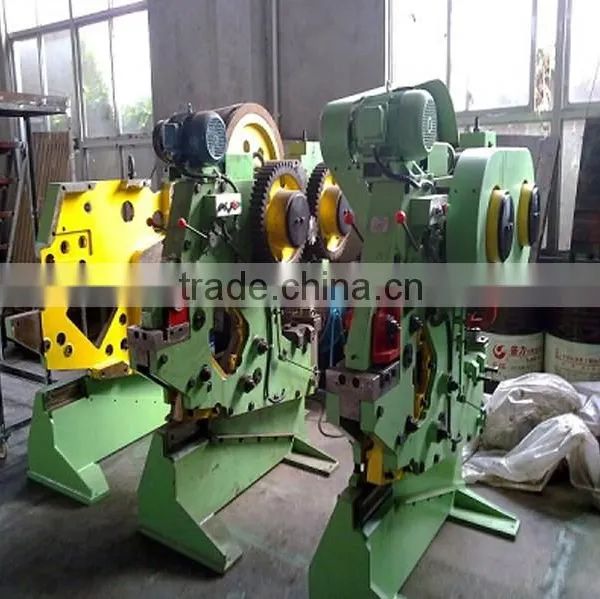

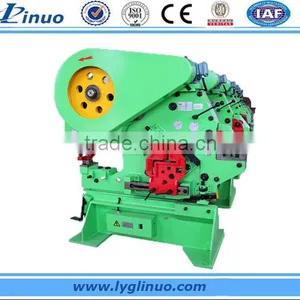

Q35-16 Mechanical Ironworker machine
Q35-16 Mechanical Ironworker machine adopts mechanical driving, the frame adopts cast steel, steel welded strcture which has sufficient strength and rigidity. The machine is an ideal equipment for cutting square bar, angle, round bar, channel and joist, as well as punching and notching.
Machine Specification | |
Model |
Q35-16 |
Pressure (Ton) |
63 |
Max. cutting thickness (mm) |
16 |
Plate strength (N/ mm²) |
450 |
Cutting angle (degree) |
13 |
Shearing size of one stroke (mm) |
20*140 |
Ram stroke |
26 |
Number of strokes (cpm) |
36 |
Throat depth (mm) |
450 |
Punching thickness (mm) |
16 |
Max. Punching diameter (mm) |
28 |
Power of main motor (kw) |
4 |
Overall dimensions L*W*H (mm) |
1877*1945*725 |
Weight of machine (kg) |
2830 |
Send Inquiry to This Supplier
Business Type
Trading Company
Year Established
2012
Factory Size
Below 1,000 square meters
Total Employees
51 - 100 People
