double cylinder hydraulic punch and shear ironworker
Features:

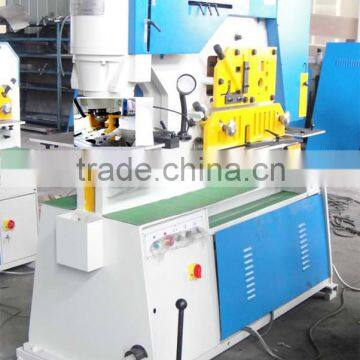

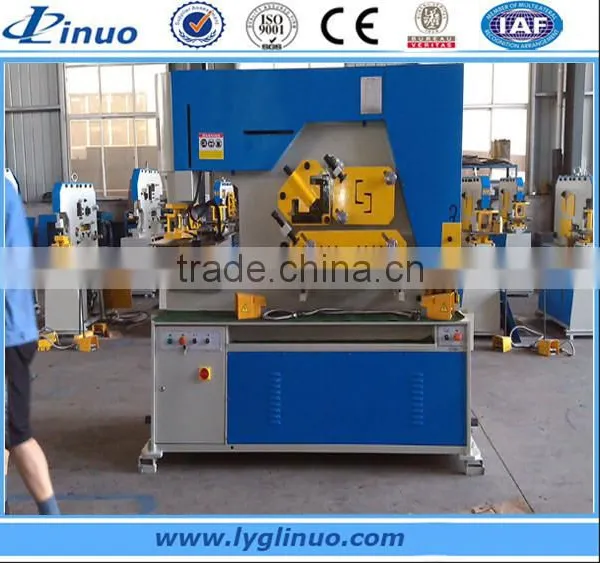

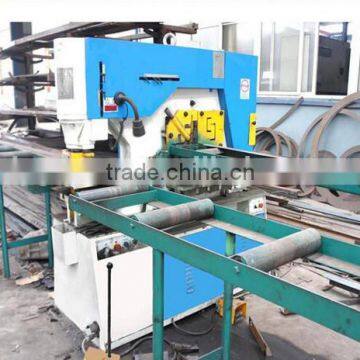

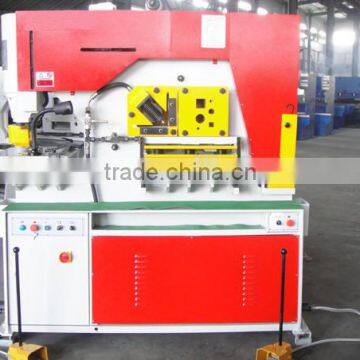

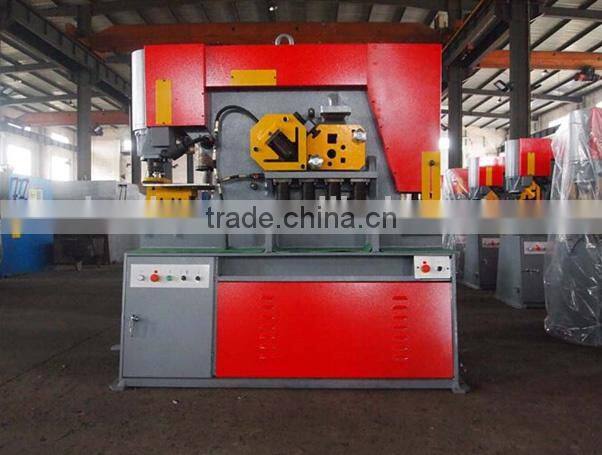

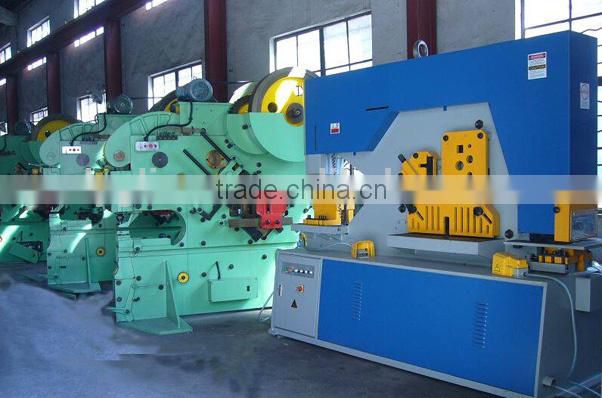

Hydraulic ironworker machine Q35Y can cut and punch all kinds of materials such as plate, square bar, angle, round bar, channel and so on.The hydraulic ironworker can also bend the plate below 500mm. All the components of hydraulic ironworker are of the highest quality in their safty, function, capability and maintenance.

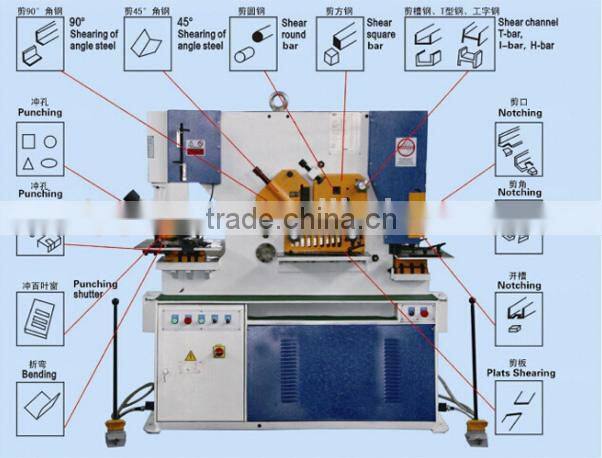

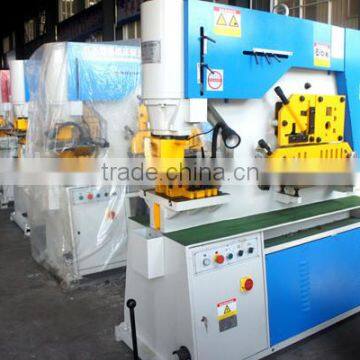

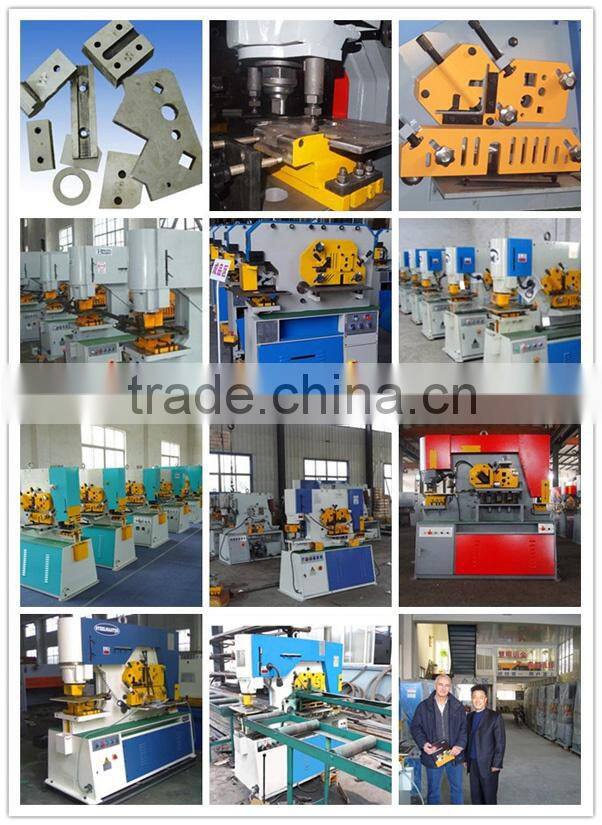

Q35Y hydraulic ironworker function:
1. Punching Station
Full range of universal punches and dies are available. Unique style of Q35Y hydraulic Iron worker allows for large angle iron punching and large channel punching.
Large viewing window on stripper swing away design for ease of operation. Large two piece gauging table with rulers and stop as standard equipment. Quick change coupling nut and sleeve for rapid replacement of change.
2. Round and Square bar shear has multiple holes for a variety of sizes. Adjustable holddown for clean square cutting. Optional Channel and Beam shears available.
3. Large heavy duty knobs
Precise square bar cutting
Large strong guarding for maximum safety
Mitering with large standard squaring arm
4. The angle iron shear has the ability to cut angle iron at 45 degrees both top and bottom leg. This gives the operator the ability to make a picture frame corner for perfect welds.
5. Diamond shaped blade for quality cuts and no material loss with minimal deformity. Forty five degree miter cut both top and bottom leg for a picture frame corner.
6. Notching Sstation
Unique design allows for unsurpassed cutting of angle and flat bar. Electrically interlocked safety guard for maximum operator safety. Ventilated guard for maximum operator visibility. Three guaging stops for precise positoning.
7. Three foot electronic back guage supplied as standard equipment. Fine adjustment allows for precision cuts. Fully protected electrical harness for safety and reliability. Large contact button for maximum productibity.
8. Flat Bar Shearing Station
Easily adjustable hold down with good operator visibility for accurate cutting. Large 15" squaring arm with inlaid scale as standard equipment.
Specially contoured anti-distortion blade for quality cuts. Lower blade has four usable edges. Allen head set screws allow for easy gapping of the machine. No shimming is required.
Q35Y hydraulic ironworker specification:
| Model | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 |
| Working pressure (KN) | 550 | 750 | 1100 | 1400 |
| Max. cutting thickness (mm) | 16 | 20 | 25 | 26 |
| Max. cutting length (mm) | 400 | 480 | 600 | 600 |
| Tensile strength of sheet metal (N/mm 2 ) | Below 450 | Below 450 | Below 450 | Below 450 |
| Shear angle (deg) | 7 | 8 | 8 | 8 |
| Stroke of ram (mm) | 80 | 80 | 80 | 80 |
| (stoke times) (min) | 8 | 8 | 8 | 8 |
| Depth of throat (mm) | 300 | 355 | 400 | 600 |
| Max. Capacities (mm) | 25× 16 | 30× 20 | 35× 25 | 38× 26 |
| Main motor (KW) | 4 | 5.5 | 7.5 | 11 |
| Length of machine tool (mm) | 1720 | 1860 | 2355 | 2680 |
| Width of machine tool (mm) | 790 | 790 | 960 | 1040 |
| Height of machine tool (mm) | 1880 | 1900 | 2090 | 2300 |
| Weight of machine tool (mm) | 1710 | 2200 | 4800 | 6200 |
| Profile | Round Bar | Square Bar | Equal Angle | T-Bar | I-Bar | Channel | ||
| 90° shearing | 45° shearing | 90° shearing | 45° shearing | |||||
| Q35Y-16 | 45 | 40× 40 | 125× 125× 12 | 50× 50× 5 | 120× 120× 12 | 60× 60× 8 | 126× 74× 5 | 126× 53× 5.5 |
| Q35Y-20 | 50 | 50× 50 | 140× 140× 12 | 50× 50× 5 | 140× 140× 12 | 70× 70× 10 | 160× 86× 6 | 160× 60× 6.5 |
| Q35Y-25 | 60 | 50× 50 | 160× 160× 14 | 60× 60× 6 | 160× 160× 14 | 80× 80× 10 | 200× 102× 9 | 200× 75× 9 |
| Q35Y-30 | 65 | 55× 55 | 180× 180× 16 | 60× 60× 6 | 180× 180× 16 | 80× 80× 10 | 280× 124× 10.5 | 280× 86× 11.5 |

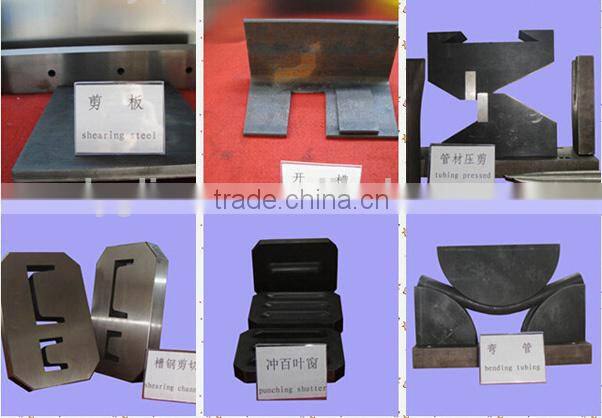

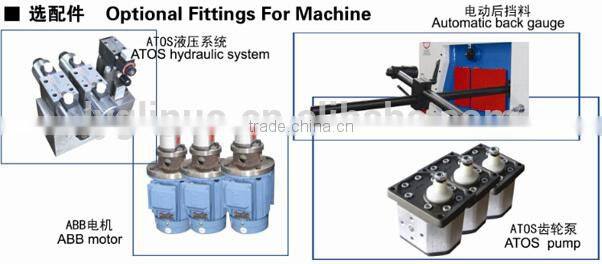

Standard mould on Q35Y hydraulic ironworker:
1)a pair of punch die
2)a set of angle steel die
3)a set of round&square die or a set of channel die(one set for free)
4)a set of notching die
5)a set of shearing plate die
