Specifications
1.used cylindrical grinding machines2.Cross liner guideway more efficient
3.Converter headstock & Easy operation

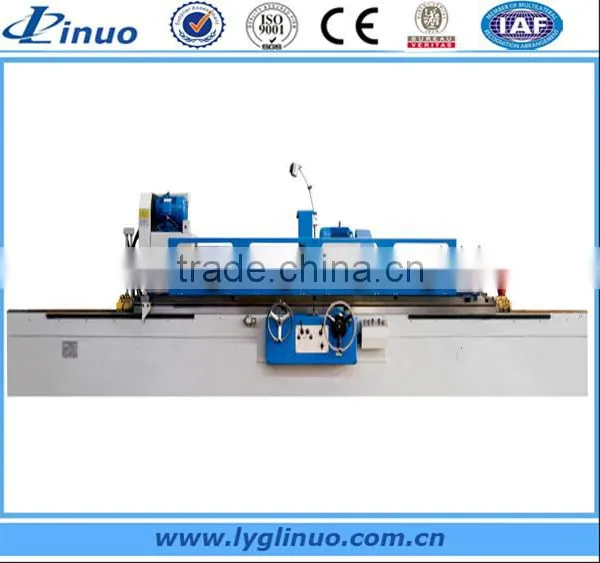

used cylindrical grinding machines
Features:
The longitudinal movement of the worktable is driven by hydraulic or by hand wheel. The worktable can rotate to a certain degree so as to be suitable for grinding taper.

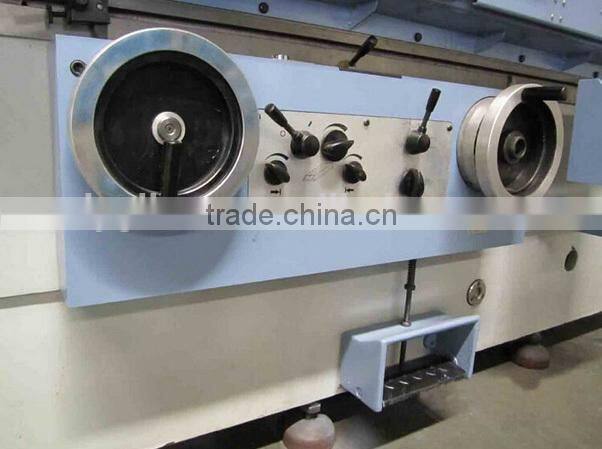

The wheel head cross feed is driven by hydraulic, which realizes automatic periodical feed and rapid feed. It can also do rough and fine feed through hand wheel.
Specifications and Technical Parameters
| item/model | unit | MW1320 | ||
| General capacity | Distance between centers | mm | 500,750 | |
| Center height | mm | 135 | ||
| Dia.ground (O.D.) | mm | 5-200 | ||
| Max.length ground (O.D.) | mm | 500,750 | ||
| Max.weight of workpiece | kg | 100 | ||
| workhead | Center taper | MT | 4 | |
| Spindle speed | r/min | 50HZ:25-380 | ||
| wheelhead | Wheel spindle speed | rpm | 1335 | |
| Wheelhead rapid travel | mm | 50 | ||
| max.travel | mm | 205 | ||
| Hand feed per.rev. | mm | rough:2 fine:0.5 | ||
| Hand feed per gra. | mm | rough:0.01 fine:0.0025 | ||
| Weel size ( O.D.* W *D) | mm | 500*50*203 | ||
| Peripheral velocity | m/s | 35 | ||
| table | Hand feed per rev. | mm | 6 | |
| Max. Swiveling angle of table | clockwise | ° | 3° | |
| Anti clockwise | ° | 8°(500) 9°(750 ) | ||
| Longtidual speed range of table | m/min | 0.1-4 | ||
| tailtock | Center taper | MT | 4 | |
| Quil travel | mm | 30 | ||
| motor | Wheelhead motor power | kw | 5.5 | |
| Workhead motor power | kw | 0.75 | ||
| machine | Gross weight | T | 4(500),4.2(750) | |
| Packing dimension | cm | 260*206*205(500) 300*206*205(750) | ||
Standard accessories:complete set of eletrical equipment, coolant equipment, wheel periphery dresser, wheel flange, wheel balancing arbor, leveling wedge, open-type steady rest, internal grinding attachment.
Optional accessories: Balance stand, Close steady rest, Radius wheel dresser, End wheel dresser, Coolant tank with magnetic seperator, coolant tank with magnetic seperator and paper filter.
The work head spindle, wheel head spindle, internal grinding spindle, coolant pump, hydrodynamic and hydrostatic oil pump are driven by separate motors.

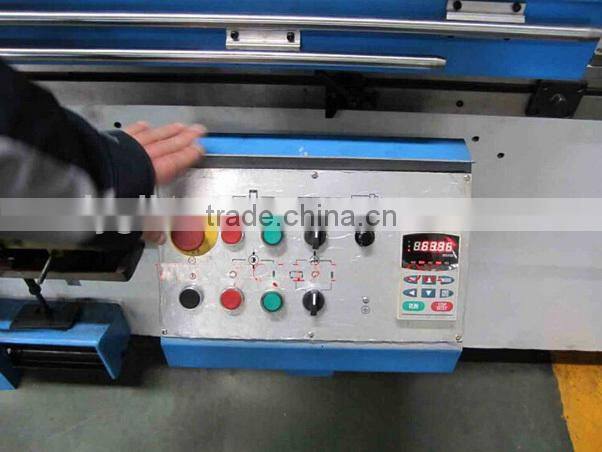

Each moving parts of the machine has electric, hydraulic and mechanic interlock structure machine is well designed with pleasing appearance, all control lever are centralized in panel make operating easy
The wheel dresser can be assembled on the worktable surface or on the tailstock.
From the above Our M13 series universal cylindrical grinder is good looking and practical.
The milling machines are packed by the fumigation wooden pallet which is easy for clients to transport or load and unload.
