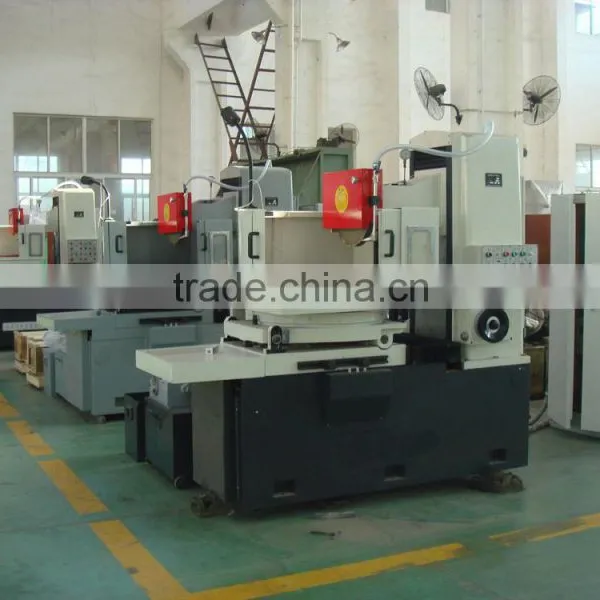

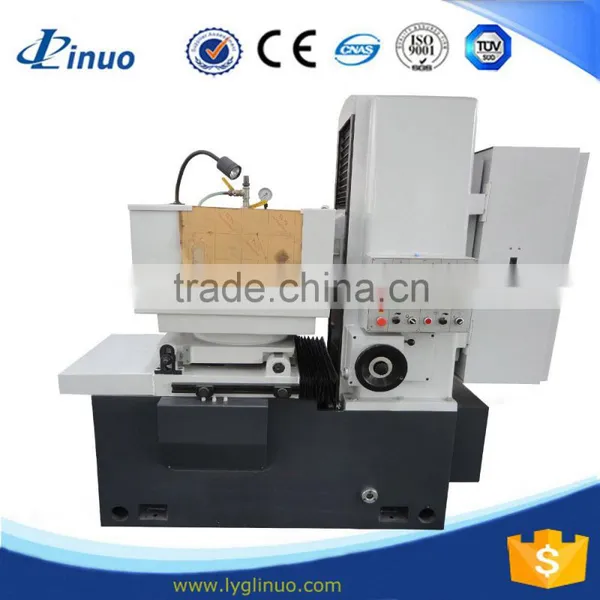

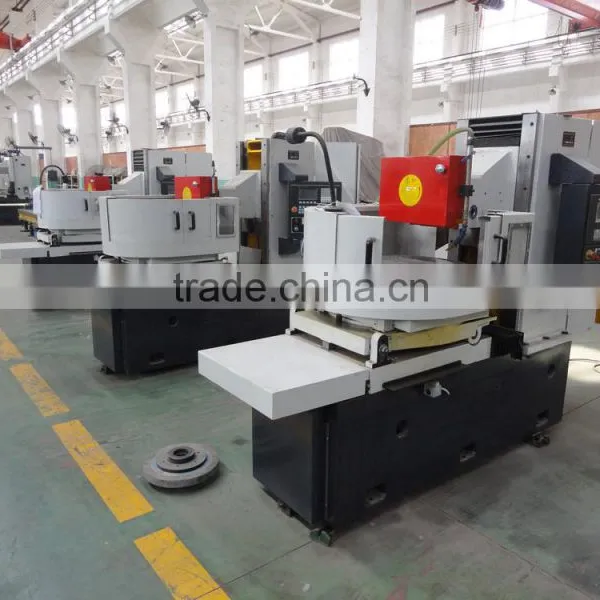

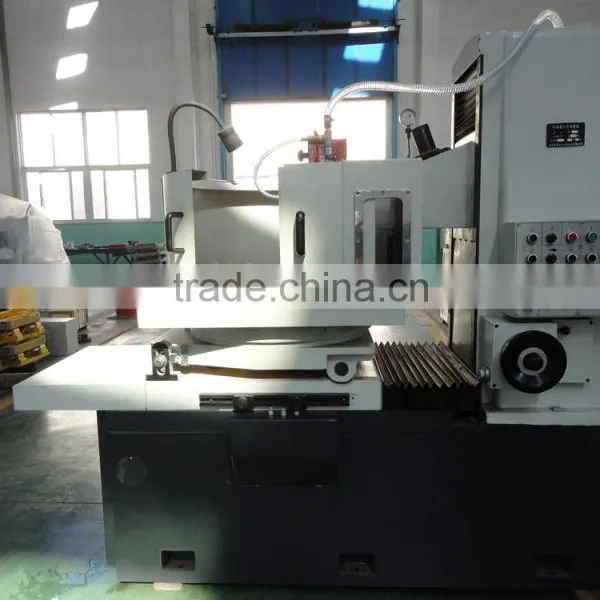

ring-shaped work pieces grinding manual rotary table surface grinding machine

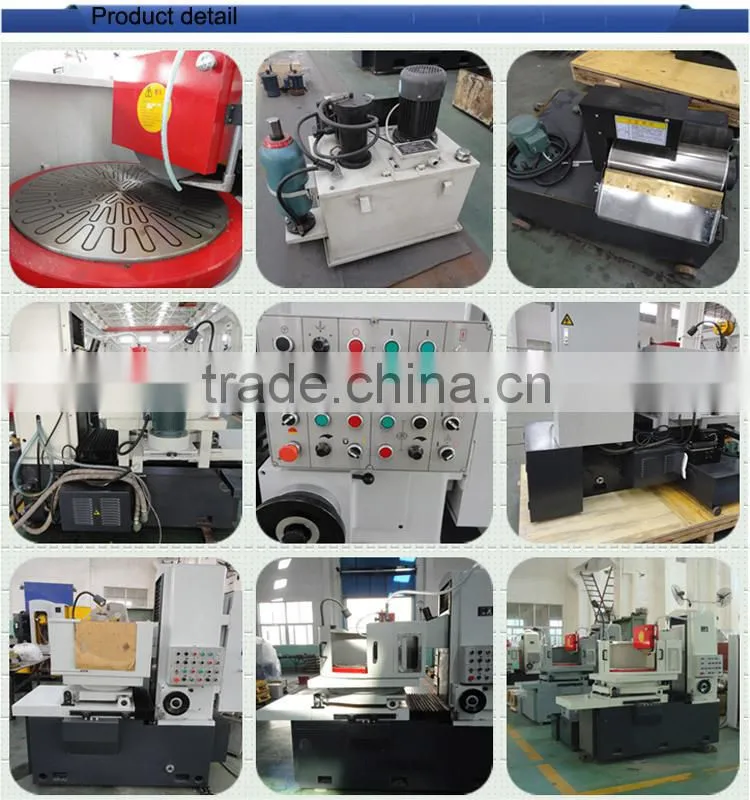

Product Description for ring-shaped work pieces grinding manual rotary table surface grinding machine
horizontal axis round table surface grinding machine, is our company and absorbing advanced manufacturing technology to develop the structure and new surface grinder.Rotary table 400-1000 overall layout form,Adjustable work surface to ± 3, grinding concave or convex, the requirements to achieve internal and external conical workpiece.
horizontal axis round table surface grinding machine,Grinder Bed,Column,beam, pallet, etc. all used the best casting resin sand casting process.Materials, and high strength.Table extension units and the pressure rail of bed, using V-quiet pressure rail movement smooth and good shock absorption.Grinding head and the vertical guide column, using inlaid steel hardened rolling structure, contact rigidity, movement accuracy, mobile portable, flexible lubrication is simple and reliable, long service life.Important parts machine spindle bearings, ball screw and rolling elements, electric elements and other purchased items,Adopt well-known products, reliable quality.
Machine Tools used in all electrical PLC control, mechanical drive, high degree of automation.Feeding system in automatic feed grinding head vertical, quick movements, feeding parameters primaries, to stop size zero control, no spark grinding, bench retreat left, automatic demagnetization, loss of field protection. Easy to operate and can change the diameter of the work of grinding speed and automatic switching of different vertical feed rate.
Grinding spindle, use high-precision grinding available.
Feed system, hydraulic ratchet mechanism, enabling mobile feed and manual feed, and flexible operation. Static pressure sliding lubrication method, shock absorption is good, smooth operation.
NO. |
Name |
unit |
Parameters |
1 |
Table diameter |
mm |
Φ630 |
2 |
Work piece grinding the maximum size (Diameter × height) |
mm |
Φ630*300 |
3 |
Vertical reciprocating stroke extension units |
mm |
370 |
4 |
Table extension units vertical reciprocating speed (CVT) |
m/min |
0.1-2 |
5 |
Workbench rotation speed |
r/min |
16-80 |
6 |
Workbench maximum tilt angle |
° |
±3 |
7 |
Grinding spindle speed |
r/min |
1450 |
8 |
Rapid vertical speed grinding head |
r/min |
250 |
9 |
Handwheel per revolution grinding head vertical movement distance |
mm |
0.5 |
10 |
Minimum quantity of vertical feed grinding head |
mm |
0.0025 |
11 |
Vertical automatic feed grinding head (hydraulic 6) |
mm |
0.0025-0.002 |
12 |
Wheel Size(Diameter X width X bore) |
mm |
400*40*127 |
13 |
Grinding head motor power |
Kw |
7.5 |
14 |
Machine Total Power |
KW |
12 |
15 |
Work precision roughness |
Mm Ra |
1000:0.015 Ra0.32-0.63 |
16 |
Machine Dimensions (L W H) |
mm |
2350*1250*1950 |
17 |
Gross / Net weight |
Kg |
3900/3500 |

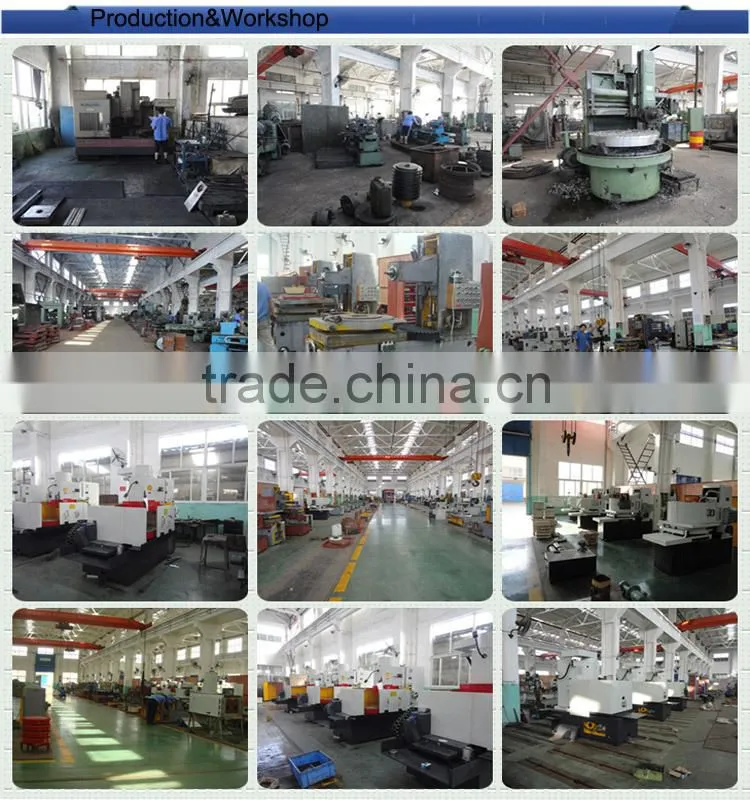

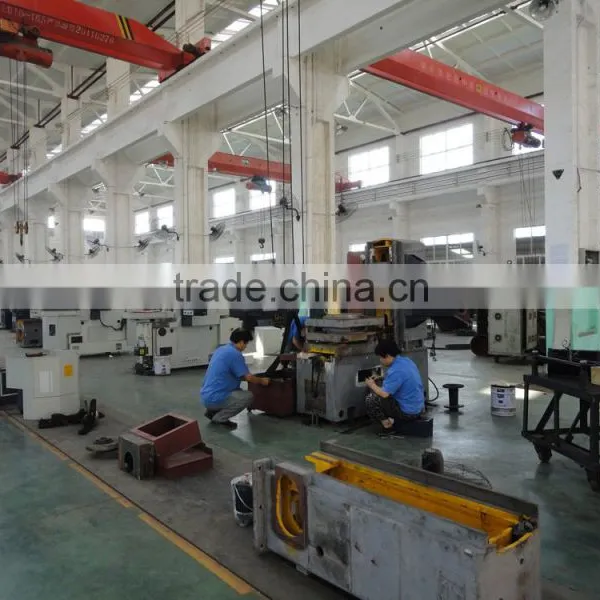

Production&Workshop for ring-shaped work pieces grinding manual rotary table surface grinding machine

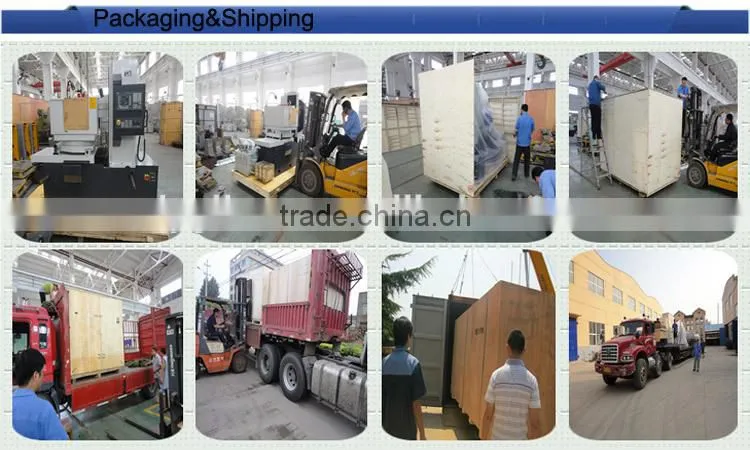

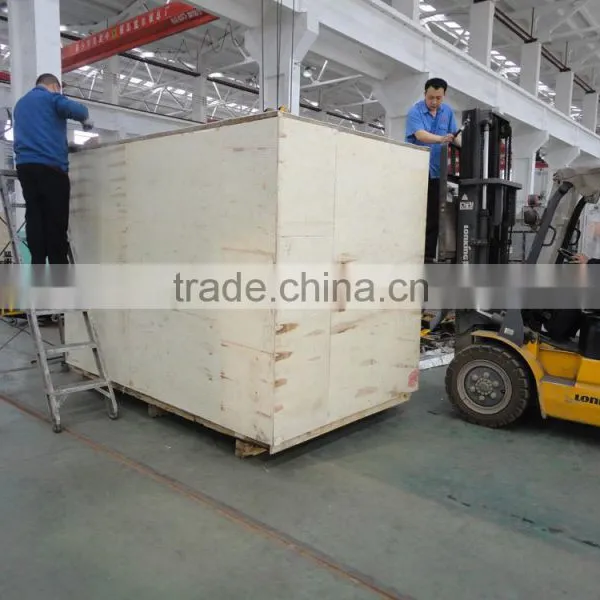

Packaging&Shipping for ring-shaped work pieces grinding manual rotary table surface grinding machine
Customer&Expo for ring-shaped work pieces grinding manual rotary table surface grinding machine
Companny information for ring-shaped work pieces grinding manual rotary table surface grinding machine
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines,bandsaw machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for ring-shaped work pieces grinding manual rotary table surface grinding machine
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
