1660B Cheap Metal Lathes
- Qingdao
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Manual | |
| Max. Swing Diameter | 400mm | Place of Origin | Shandong, China | |
| Brand Name | lunan | Model Number | 1660B | |
| Voltage | 380v 50hz | Power(W) | 5.5kw | |
| Dimension(L*W*H) | 2920*1160*1740mm | Weight | 2400kg | |
| Certification | CE ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1660B cheap metal lathes
Product Description for 1660B cheap metal lathes
Featrue:
1)A conjoined bed.The headstock,gear-box,feed box,sliding-box,and bed lathe are made of high quality casting iron,and they are all cast with the resin sand foundry technology.The hardness of induction hardened bed-ways is around HRC55.
2)The lathe is featured high efficiency,high precision,high rigidity and excellent cutting performance.
3)The spindle adopts supported by 3-pointed high-precision design, all gears in headstock are precisely grinded,ensure the spindle turns smoothly at high speed.
4)The base of the bed is a whole cast.The structure ensures high rigidity of the whole machine and convenient chip disposal.
5)Foot brake,overload protection,chip guard,longgudinal automatic stop device,ensures easy operation and good performance of the machine.
Specification | 1640B*1000 | 1660B*1500 |
Max.swing over bed | 400mm(16″) | |
Max.swing over cross slide | 210mm(81/4″) | |
Max.swing over gap | 590mm(23″) | |
Distance between centers | 1000mm(40″) | 1500mm(60″) |
Width of bed | 300mm(115/4″) | |
Spindle nose(camlock) | 90# | |
Spindle bore | 80mm(31/5″) | |
Spindle speeds(12 steps) | 48~1600 r.p.m. | |
Metric threads | 0.5~7mm(21 kinds) | |
Inch threads | 4~56T.P.I.(32 kinds) | |
Modile threads | 0.5~7mm(21 kinds) | |
Diametral pitch threads | 4~56T.P.I.(32 kinds) | |
Longitudial feeds range | 0.059~0.831mm(0.002~0.033 in) | |
Cross feeds range | 0.019~0.271mm(0.001~0.011 in) | |
Main motor power | 5.5KW | |
Net/gross weight(kgs) | 2000/2200 | 2200/2400 |

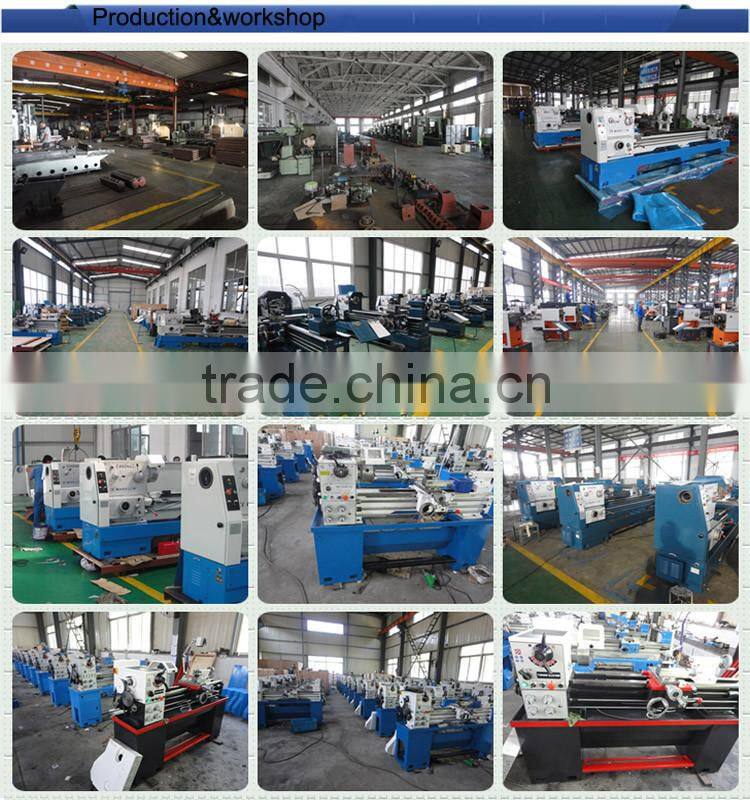

Production&Workshop for 1660B cheap metal lathes

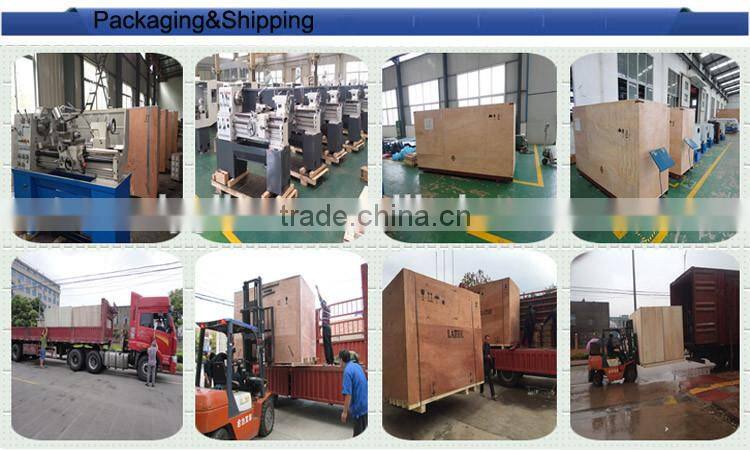

Packaging&Shipping for 1660B cheap metal lathes
Companny information for 1660B cheap metal lathes
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines,bandsaw machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for 1660B cheap metal lathes
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
