Home > Products > Engine Lathe Machine > C6241 high precision horizontal turning lathe machine

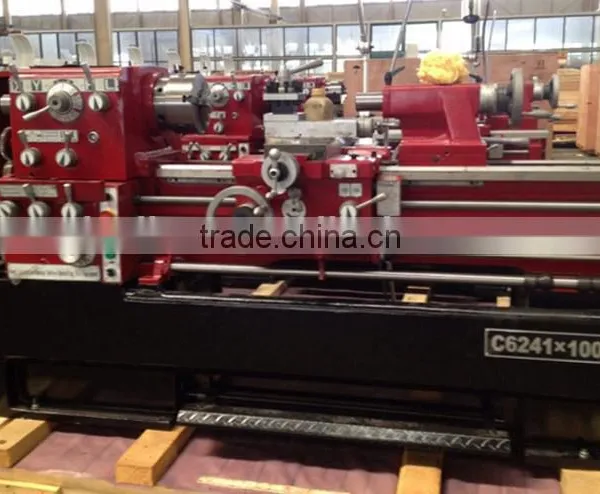

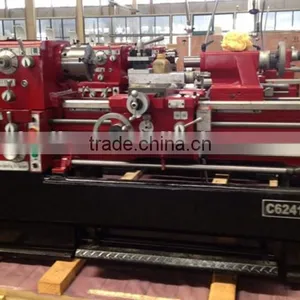

C6241 high precision horizontal turning lathe machine
- 50 Set / Sets per Month
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Condition: | New | Type: | Horizontal | CNC or Not: | Normal |
| Automatic Grade: | Manual | Max. Swing Diameter: | 410mm | Place of Origin: | Jiangsu, China |
| Brand Name: | linuo | Model Number: | C6241 | Voltage: | 380V 50HZ |
| Power(W): | 5.5KW | Dimension(L*W*H): | 2200x1080x1370mm | Weight: | 1500kg |
| Certification: | CE ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
C6241 high precision horizontal turning lathe machine
Product Description for C6241 high precision horizontal turning lathe machine
Specification | C6241 | C6246 | ||||||||
Swing over bed | 410mm(16") | 460mm(18") | ||||||||
Swing over cross slide | 220mm(8-13/16") | 270mm(10-3/4") | ||||||||
Swing in gap | 640mm(25-1/8") | 690mm(27-1/8") | ||||||||
Distance between centers | 1000mm | 1500mm | 2000mm | 1000mm | 1500mm | 2000mm | ||||
Valid length of gap | 165mm(6-1/2") | |||||||||
Width of bed | 300mm(11-13/16") | |||||||||
Spindle nose | D1-6 | |||||||||
Spindle bore | 58mm(2-1/4") | |||||||||
Taper of spindle bore | No.6 Morse | |||||||||
Range of spindle speed | 12 changes, 25~2000r/min | |||||||||
Max.travel of top slide | 128mm(5") | |||||||||
Max.travel of cross slide | 285mm(11-1/4") | |||||||||
Max.section of tool | 25×25mm(1"×1") | |||||||||
Pitch thread of leadscrew | 6mm or 4T.P.I. | |||||||||
Longitudinal feeds range | 42 kinds, 0.031~1.7mm/rev(0.0011"~0.0633"/rev) | |||||||||
Cross feeds range | 42 kinds, 0.014~0.784mm/rev(0.00033"~0.01837"/rev) | |||||||||
Metric threads range | 41 kinds, 0.1~14mm | |||||||||
Inch threads range | 60 kinds, 2~112T.P.I. | |||||||||
Diametrical pitches range | 50 kinds, 4~112DP | |||||||||
Module pitches range | 34 kinds, 0.1~7MP | |||||||||
Dia. of tailstock sleeve | 60mm(2-5/16") | |||||||||
Travel of tailstock sleeve | 128mm(5") | |||||||||
Taper of tailstock sleeve | No.4 Morse | |||||||||
Power of main motor | 5.5kW(7.5HP) 3PH | |||||||||
Power of coolant pump | 0.1kW(1/8HP) 3PH | |||||||||
| Standard Accessories: | Optional Accessories: |
| 3 Jaw Chuck | Taper Turning Attachment |
| Change Gears Set | Live Center |
| Chasing Dial Indicator | Work Light |
| Reduction Sleeve | Leadscrew Guard |
| Dead Centers | Digital Readout |
| Full Length Splash Guard | Quick Change Tool Post |
| Coolant System | Chuck Guard |
| Brake System | Digital Readout(2 Axis) |
| 4 Jaw Chuck | Drill Chuck+Drill Arbor |
| Face Plate | |
| Steady Rest | |
| Follow Rest | |
| Tool Box&Tools |
Production&Workshop for C6241 high precision horizontal turning lathe machine
Packaging&Shipping for C6241 high precision horizontal turning lathe machine
Companny information for C6241 high precision horizontal turning lathe machine
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines,bandsaw machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for C6241 high precision horizontal turning lathe machine
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
Contact Us
- Lianyungang Linuo Trading Co., Ltd.
- Contact nameNicole Yuan
- Phone86-0518-85683918
- AddressNo.109,New Eastern Road,Development Zone Lianyungang,Jiangsu
-
