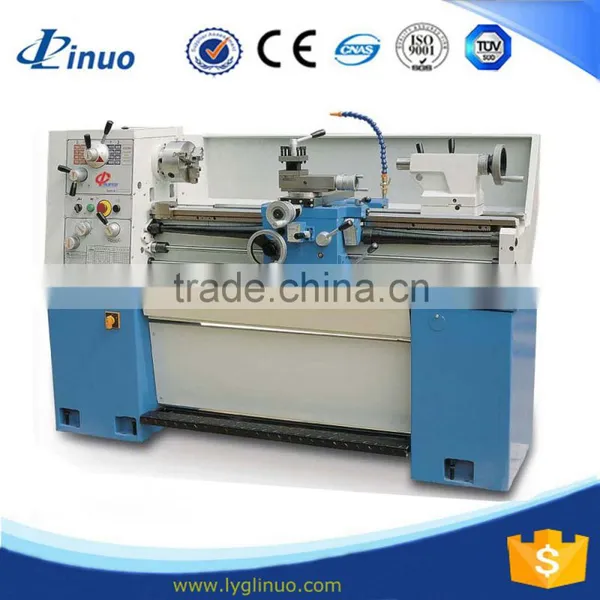

1340*1000 hot horizontal lathe engine machine
Product Description for 1340*1000 hot horizontal lathe engine machine
Feature:
1. Induction hardened, precision ground V-way bed.
2. D1-4 spindle is supported by high quality tapered roller bearing.
3. Hardened, precision ground gears in headstock.
4. High precision directly mounting chuck.
5. Carriage mounted spindle control lever.
6. Automatic feed and threading are fully interlocked.

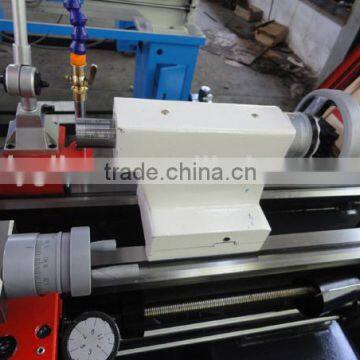

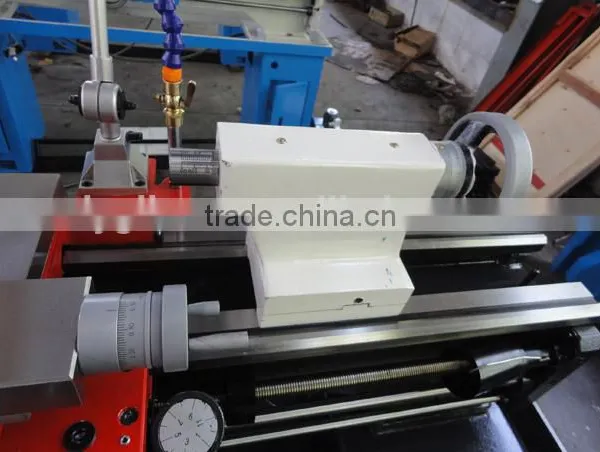

7. Tailstock may be offset for turning tapers.
8. One-piece casting iron base allows heavy cuts.
9. Tolerance test certificate, test flow chart included.
Specification |
|
Model |
||
C6233×1000/1340 |
C6236×1000/1440 |
C6236V |
||
Capacity |
|
|||
Swing over bed |
330mm(13″) |
356mm(14″) |
356mm(14″) |
|
Swing over cross slide |
195mm(7-5/8″) |
220mm(8-5/8″) |
220mm(8-5/8″) |
|
Swing in gap diameter |
475mm(18-11/16″) |
506mm(20″) |
506mm(20″) |
|
Valid length of gap |
145mm(5-11/16″) |
|||
Admits between |
1000mm(40″) |
|||
Width of bed |
206mm(8″) |
|||
Headstock |
|
|||
Spindle nose |
D1-4 |
|||
Spindle bore |
38mm(1-1/2″) |
|||
Taper of spindle bore |
MT No.5 |
|||
Range of spindle speed |
16 changes 45~1800r/min |
30~550r.p.m 155~3000r.p.m |
||
Feed and threads |
|
|||

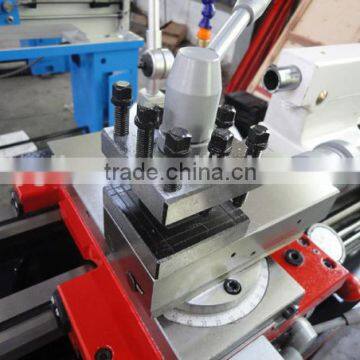

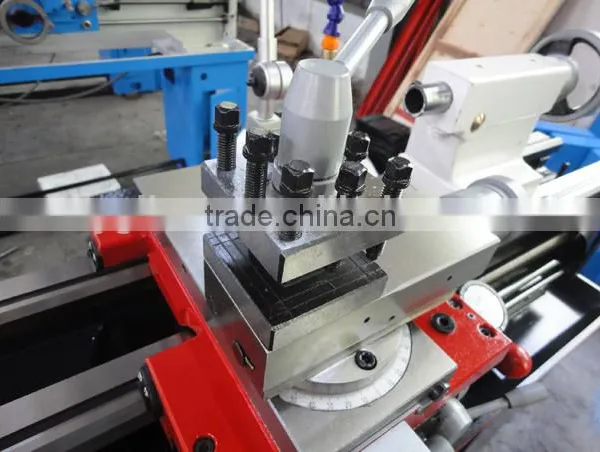

Compound rest travel |
95mm(3-3/4″) |
|||
Cross slide travel |
180mm(7″) |
|||
Max. section of tool |
16mm×16mm(5/8″×5/8″) |
|||

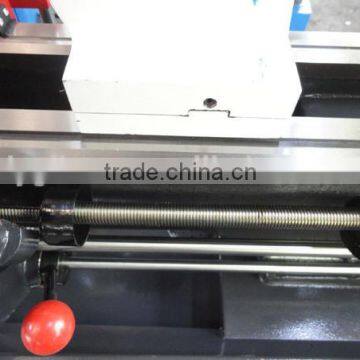

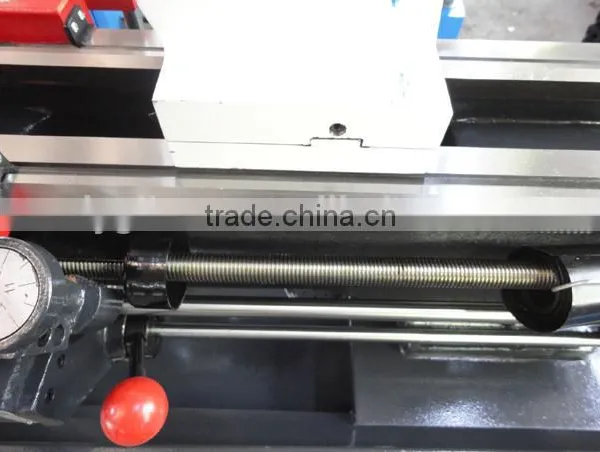

Lead screw thread |
8T.P.I. or 4mm |
|||
Longitudinal feeds range |
0.0012″~0.0294″/rev(Inch lathe) or 0.043~0.653mm/rev (Metric lathe) |
|||
Cross feeds range |
0.0004″~0.01″/rev(Inch lathe) or 0.027~0.413mm/rev(Metric lathe) |
|||
Threads metric pitches |
0.45~7.5mm(Inch lathe) or 0.4~7mm(Metric lathe) |
|||
Threads inch pitches |
4~112T.P.I. (Inch lathe)or 4~56T.P.I. (Metric lathe) |
|||
Tailstock |
|
|||
Quill diameter |
45mm(1-3/4″) |
|||
Quill travel |
120mm(4-3/4″) |
|||
Quill taper |
MT No.3 |
|||
Motor |
|
|||
Main motor power (double speeds) |
1.5/2.4kW(2/3HP) |
|||
Coolant pump power |
0.04kW |
|||
Dimension and weight |
|
|||
Overall dimension (L×W×H) |
182×74×124cm |
182×74×125cm |
182×74×125cm |
|
Packing size (L×W×H) |
193×76×158cm |
193×76×158cm |
193×92×159cm |
|
Net weight |
700kg |
730kg |
750kg |
|
Gross weight |
820kg |
860kg |
880kg |
|
Standard accessories: Steady rest, Follower rest,4-jaw chuck, Face plate, Thread dial,Longitudinal automatic trip,3-jaw-chuck,Driving plate,center and center sleeve,Wrenches,oil gun,operation manual
Production&Workshop for 1340*1000 hot horizontal lathe engine machine
Packaging&Shipping for 1340*1000 hot horizontal lathe engine machine
Companny information for 1340*1000 hot horizontal lathe engine machine
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines,bandsaw machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for 1340*1000 hot horizontal lathe engine machine
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
