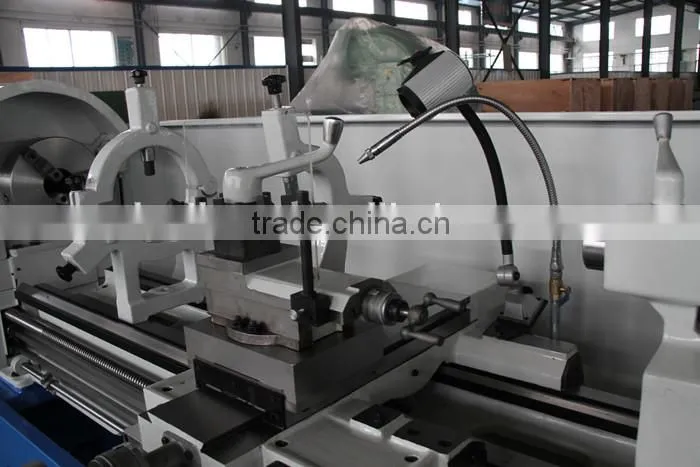

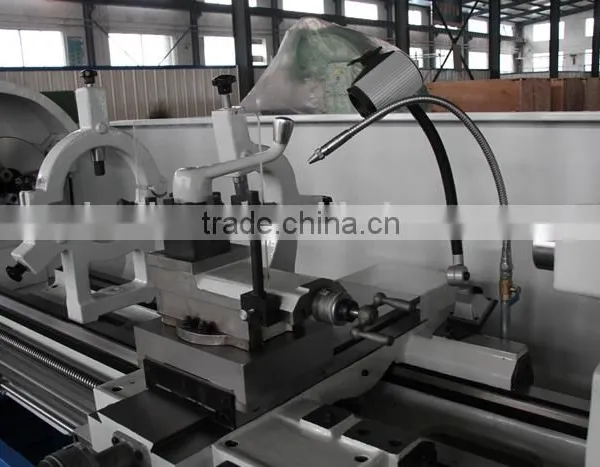

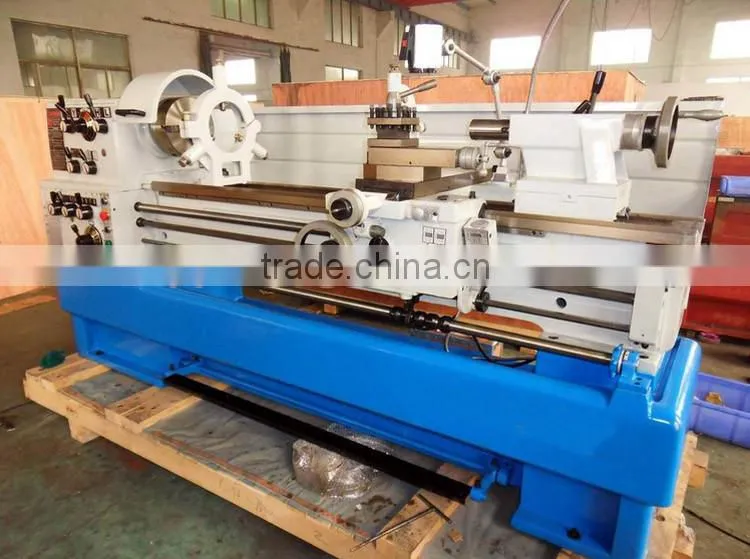

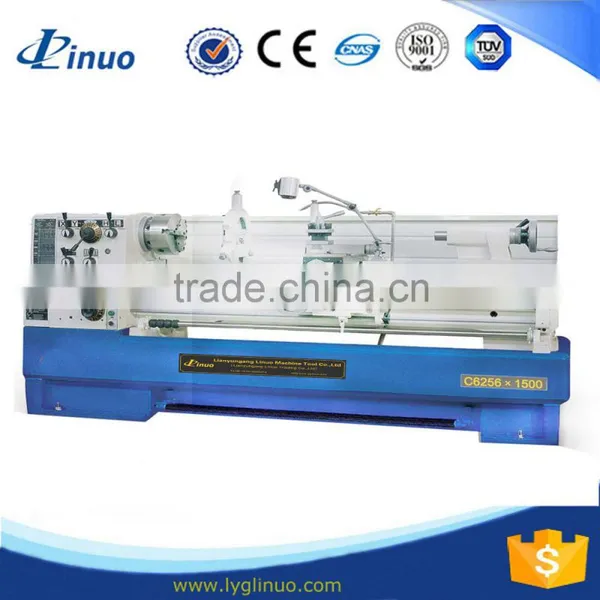

C6251 C6256 precision tornos conventional lathe
Product Description for C6251 C6256 precision tornos conventional lathe
Precision ground and hardened bedways
The spindle is supported with precision roller bearing
Head stock gears are made of high quality steel ground and hardened
Integrated and segregate foot stand for optional
Variable speed model for optional
Model |
C6251 |
C6256 |
|||
CAPACITY |
Max. swing over bed |
510mm |
20’’ |
560mm |
22’’ |
Max. swing over cross slide |
305mm |
11-7/8’’ |
355mm |
13-3/4’’ |
|
Max. swing over gap |
735mm |
29’’ |
785mm |
31’’ |
|
Length of gap |
165mm |
6-1/2’’ |
200mm |
8’’ |
|
Center distance |
1000/1500/2000/3000mm |
40’’/60’’/78’’/118’’ |
1000/1500/2000/3000mm |
40’’/60’’/78’’/118’’ |
|
Bed width |
300mm |
11-13/16’’ |
350mm |
13-3/4’’ |
|
HEADSTOCK |
Spindle bore |
80mm |
3-1/8’’ |
80mm |
3-1/8’’ |
Spindle nose |
D1-8 or A1-8 |
D1-8 or A1-8 |
|||
Taper of spindle bore |
NO.7 Morse |
NO.7 Morse |
|||
Range of spindle speed |
12 changes 25-1600r/min |
12 changes 25-1600r/min |
|||
Max. travel of cross & thread |
316mm |
316mm |
|||
Leadscrew diameter & thread |
40mm x 4 T.P.I. or 6mm |
1-9/16’’ |
40mm x 4 T.P.I. or 6mm |
1-9/16’’ |
|
FEED & THREADS |
Threads imperial pitches |
60Nos 2-112 |
60Nos 2-112 |
||
Threads metric pitches |
47Nos 0.2-14 |
47Nos 0.2-14 |
|||
Diametral pitches DP/DP |
50Nos 4-112D.P |
50Nos 4-112D.P |
|||
Module pitches DP/DP |
39Nos 0.1-112D.P |
39Nos 0.1-112D.P |
|||
Longitudinal feeds |
35Nos 0.0022’’-0.0612’’/rev |
35Nos 0.0022’’-0.0612’’/rev |
|||
Cross feeds |
35Nos 0.00048’’-0.01354’’/rev |
35Nos 0.00048’’-0.01354’’/rev |
|||
TAILSTOCK |
Total travel of tailstock quill |
180mm |
180mm |
||
Tails stock quill |
75mm |
75mm |
|||
Taper tailstock quill |
M.T.No.5 |
M.T.No.5 |
|||
MOTOR |
Spindle drive motor 4P,3PH |
7.5kw |
7.5kw |
||
Coolant drive motor 2P,3PH |
90w |
90w |
|||
DIMENSION |
Overall dimension |
2340/2840/3340/4340*1150*1460mm |
2340/2840/3340/4340*1150*1460mm |
||
Packing dimension |
2400/2900/3400/4400*1150*1740mm |
2400/2900/3400/4400*1150*1740mm |
|||
WEIGHT |
Net weight |
2680/2940/2770/3030kg |
2680/2940/2770/3030kg |
||
Gross weight |
3000/3310/3090/3400kg |
3000/3310/3090/3400kg |
|||

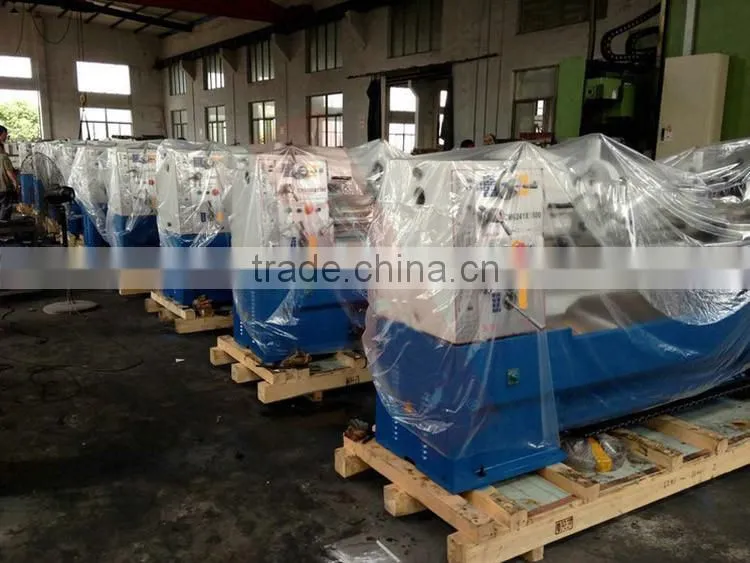

Production&Workshop for C6251 C6256 precision tornos conventional lathe

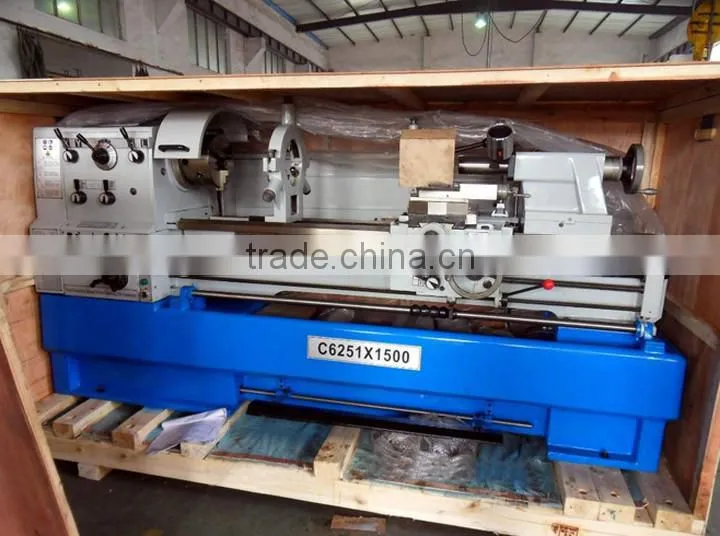

Packaging&Shipping for C6251 C6256 precision tornos conventional lathe
Companny information for C6251 C6256 precision tornos conventional lathe
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines,bandsaw machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for C6251 C6256 precision tornos conventional lathe
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
