Help CenterNordson DT20 Floor/Multi Door Access Control Unit & DT20K Extend Function Board
Related Products
-
Access Control Panel for Multi DoorNegotiableMOQ: 1 Set -
Nordson Access Control Units for 40 Gates UseNegotiableMOQ: 1 Set
-
Nordson Access Control Units for 20 Cabinet Gates UseNegotiableMOQ: 1 Set
-
Nordson Access Control Units for Ten or More Floors in One LiftNegotiableMOQ: 1 Set
-
Nordson 2000Lbs Holding Force Shear Lock (NE-1200)NegotiableMOQ: 50 Sets
Specifications
1.One Reader for More Controllers and Doors2.Floor/Multi Door Door Access Control Unit
3.TCP/IP 10M/100M self adaptive
Product Description
Normal management of the Access Control are "One for One", that means one card reader control one door. Valid card can open the door, invalid card can not open. Bur we can found that in many fields, a "One for More Controllers" are needed.
Example 1: Lift Access Control Management
We usually have ten or more floors in one lift, but you just need one card reader. The system can distinguish the user's privilege, then take them to the right floor.
If the user has multi-floor privilege, when swiping the card, he can choose the floor he want to go this time, and he can not push other floor buttons.
If the users are the security and administrator, they can go to any floor they want according to the privilege settings.
Example 2: Cabinet Access Control
It can combine with the Adroitor software to manage this.
When you swiping card, the appoint cabinet will open.
The administrator can use PC to open all doors at one time to do some check and manage work.
The cleaner can open all the door to do cleaning work after office-time.
Some customers do not like card reader, they also can use Biometric instrument like: finger-print readers, face recognition and so on if they have wiegand format.
The Manage Function can start using:
Card+Password
Time Profile
Peripheral Control
Parameter Index:

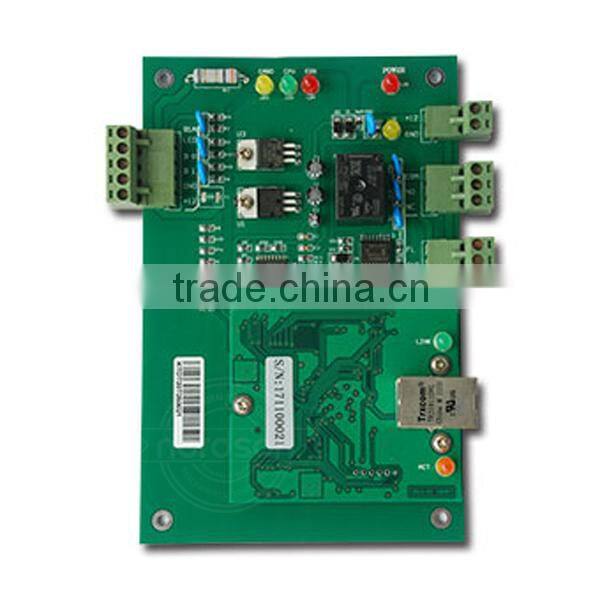

One Reader for More Controllers and Doors
PCB board size: 164mm long * 106mm wide
Powersupply: 12VDC 4-7A
Reader Input Format: One Wiegand 26/34 (compatible with all readers under the agreement, such as Motorola, HID, EM, Mifare one, etc.).
Means of communication: TCP/IP 10M/100M self adaptive
Maximum number of connections: No limit
Quantity of reader: 1pc
User registration card q’ty: 20,000 cards
Record the number of offline storage: 100,000 records
Operating temperature: -40 to 70 degrees Celsius
Run Humidity: 10-90% RH, non-condensing

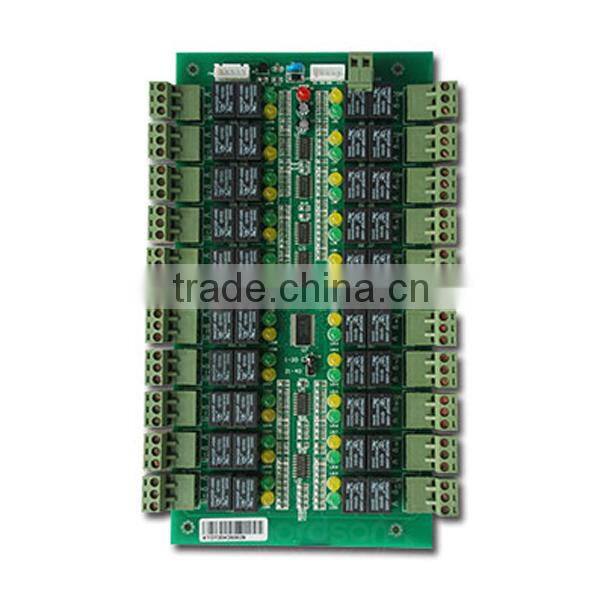

DT20K Extend Function Board
Must work with DT20 One for more access controller together
PCB board size: 219mm * 115mm
Output Format: 20 Relay output
One DT20 One for More Access Controller Support Max 2pcs DT20K Extensive Function Board
