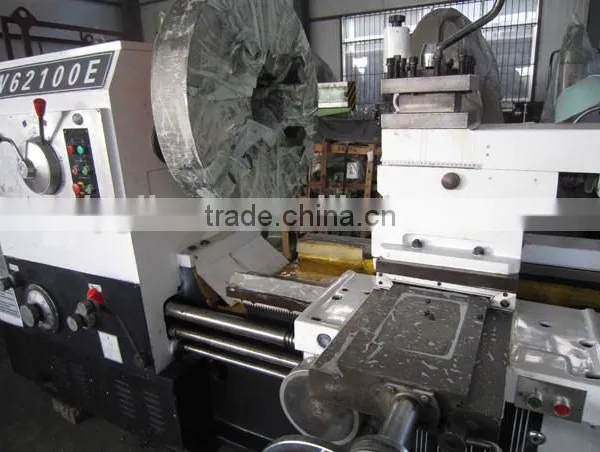

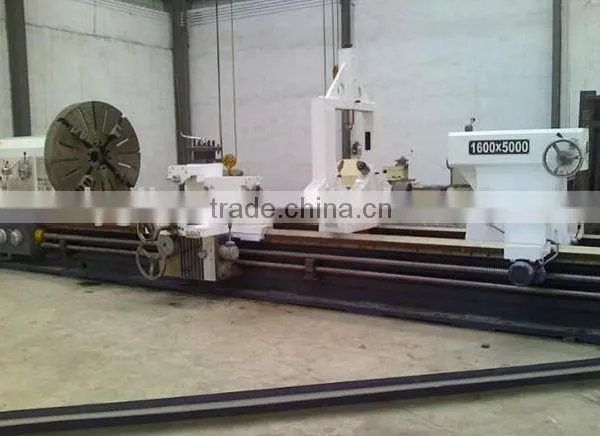

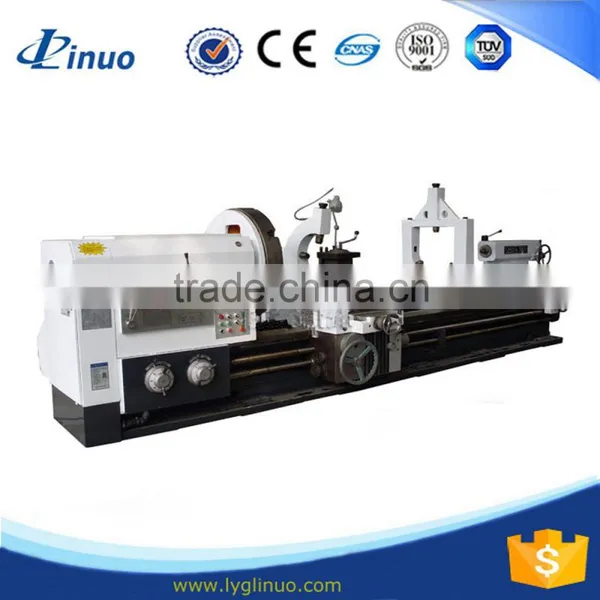

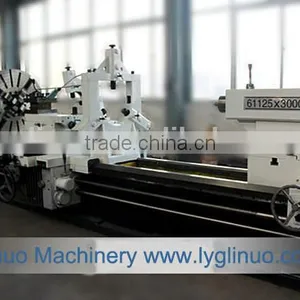

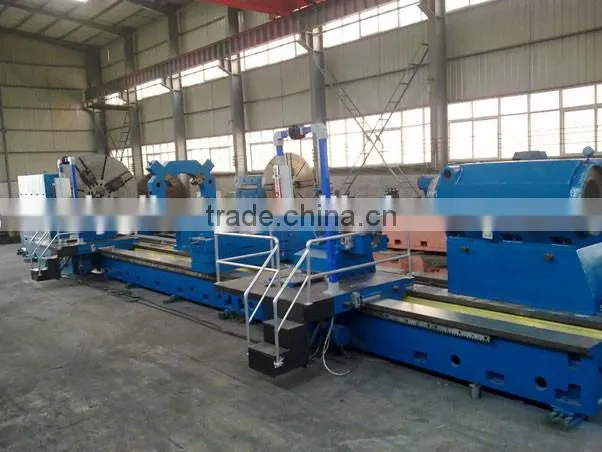

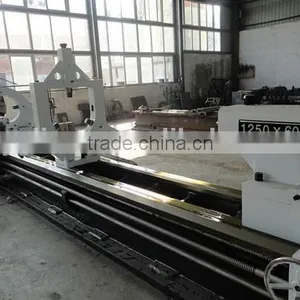

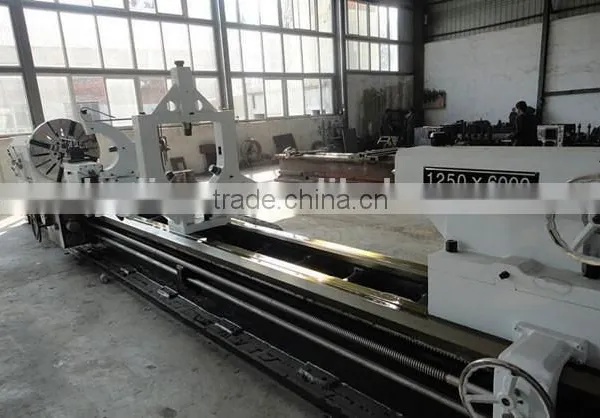

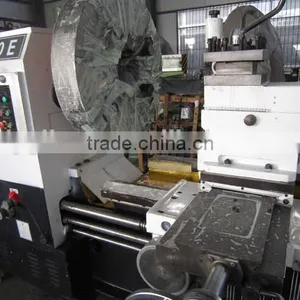

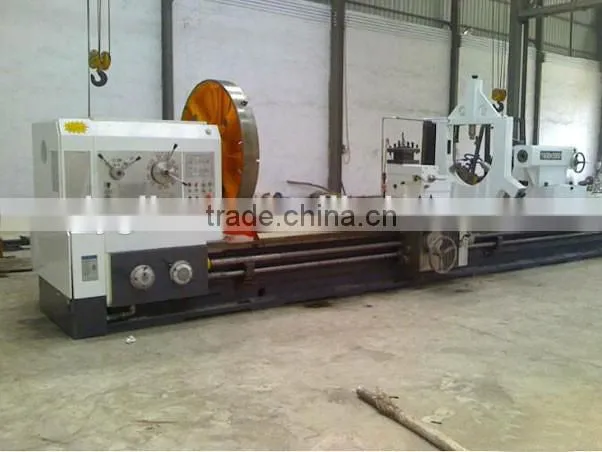

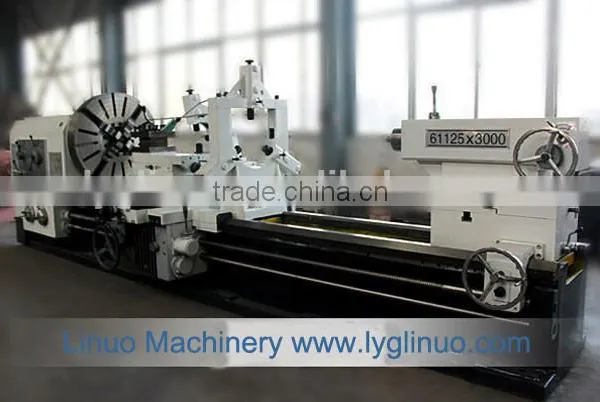

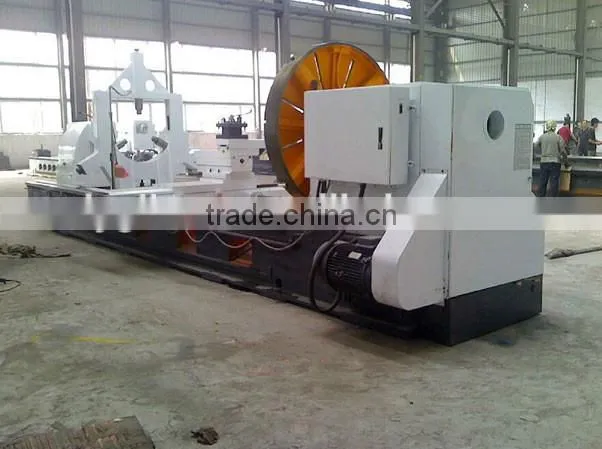

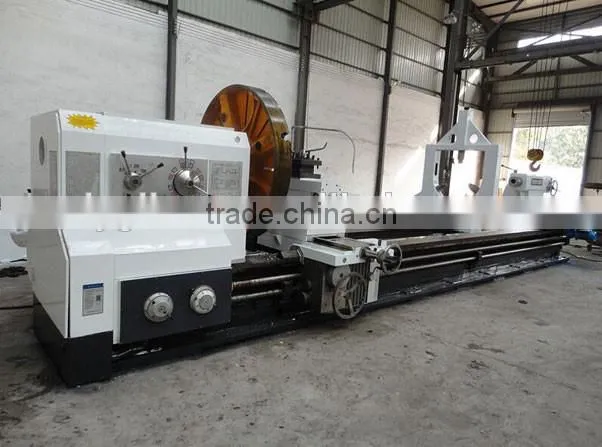

CW61125 conventional turning lathe machine
Specifications
1.These lathes can satisfy the various turning requirements of a very wide range of different industries-offering an affordable solution to higher machining accuracy and better surface finish.
2.They have a modern style and are built according with both latest human engineering and CE codes of practice-making the operator feel safer and more comfortable.
3.High speed dynamically balanced spindle--using the latest machine tool building technology.
4.Solid cast iron structure--guaranteeing the rigidity of bed, head stock and saddle.
5.Precision ground bed slideways-guaranteeing high accuracy along the total length of the machine.
MODEL |
CW6163 |
CW6180(A) |
CW61100(A) |
CW61125(A) |
|
|
CW6263 |
CW6280(A) |
CW62100(A) |
CW62125(A) |
|
CAPACITY |
|
|
|
|
|
Max.swing over bed |
630mm |
800mm |
1000mm |
1250mm |
|
Max.swing over gap |
800mm |
1000mm |
1200mm |
1400mm |
|
Max.swing over cross slide |
345mm |
480mm |
680mm |
680mm |
|
Center distance |
1m 1.5m 2m 3m 4m 5m 6m 8m 10m 12m |
||||
Width of bed |
600mm |
||||
HEAD STOCK |
|
|
|
|
|
Spindle hole |
105mm (130mm) |
||||
Spindle taper |
120mm 1:16 |
||||
Spindle speeds |
0.75-1000r/min |
7-720r/min |
|||
GEAR Box-threads&feeds |
|
|
|
|
|
Metric threads mm |
1-240mm (52) |
||||
Inch threads TPI |
1-14 (26) |
||||
Moudle threads mm |
0.5-120mm (53) |
||||
Diametral threads DP |
1-28 (24) |
||||
Longitudinal feeds range |
0.1-24.3mm/r |
||||
Cross feed range |
0.05-12.15mm/r |
||||
Rapid feed:long/cross |
4000mm/min,2000mm/min |
||||
TOOL-POST |
|
||||
Tool section |
32*32mm |
||||
CARRIAGE |
|
||||
Cross slide travel |
370mm |
430mm |
|||
Compound rest travel |
200mm(A Auto feed 170mm) |
||||
TAILSTOCK |
|
||||
Sleeve diameter |
100mm |
120mm |
|||
Sleeve taper |
Morse 6# |
||||
Sleeve travel |
240mm |
||||
STEADY REST |
|
||||
Steady rest |
20-200mm |
||||
Follow rest |
20-100mm |
||||
MOTOR |
|
||||
Main motor |
11kw |
||||
Rapid feed motor |
1.1kw |
||||
|
CW6163.Net weight(kg) Dimention(L*W*H) |
1000mm 1500mm 2000mm 3000mm 4000mm 5000mm 6000mm 8000mm 10000mm 12000mm |
4400kg 4700kg 5000kg 5600kg 6200kg 6800kg 7400kg 8800kg 10200kg 11500kg |
3000*1710*1250mm 3500*1170*1250mm 4000*1170*1250mm 5000*1170*1250mm 6000*1170*1250mm 7000*1170*1250mm 8000*1170*1250mm 10000*1170*1250mm 12000*1170*1250mm 14000*1170*1250mm |
||
