IP Base Access Control Board with Wiegand Output Access Control System
NS-L2 Access Control System Instruciton:
Nordson Access Control Board series is a new generation products.NORDSON tries to reach a prima balance among “cost control” “function suitability” and “stability”. In line with the product philosophy of “Live Safely and Conveniently”, by adoping a powerful processor, NS series serve more as a Security Management Platform than a mere access controller NS series can work with alarm, fire control and CCTV devices. The series also work with Access control management software to provide snapshot, video monitoring, attendance, on-line patrol function and so on.
NS-L2 Acces Control System Features:
Advanced design platform
Winged intelligent ARM plaform of High-end 32-bit CUP from International top brand ATMEL, enables to expand without limits.

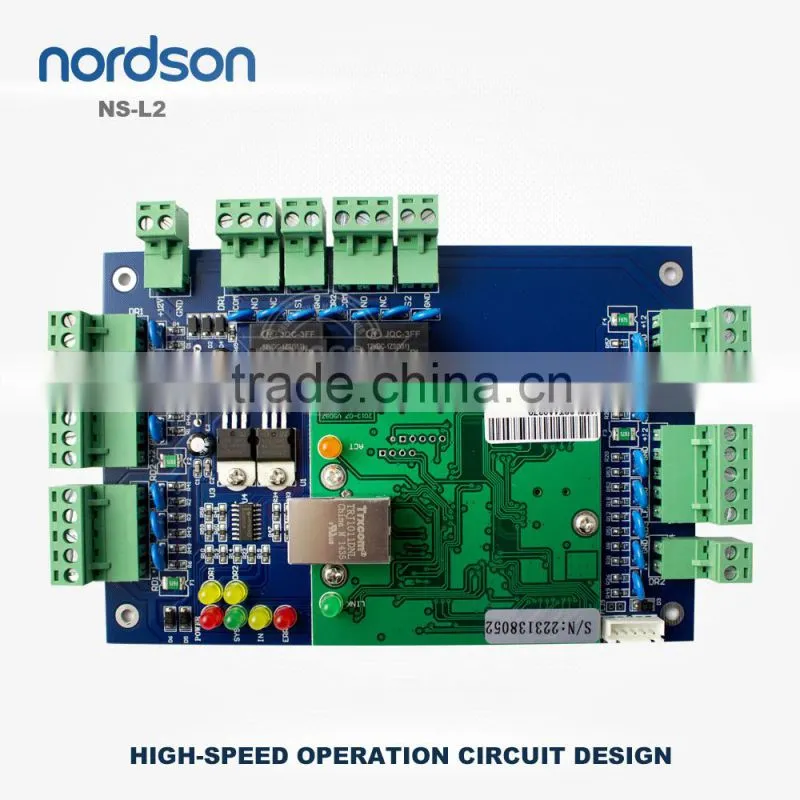

High-speed operation circuit design
High operation speed, door opens immediately after swiping the card even the 20.000 memory is full.

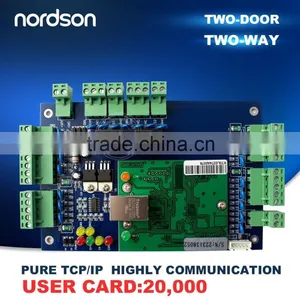

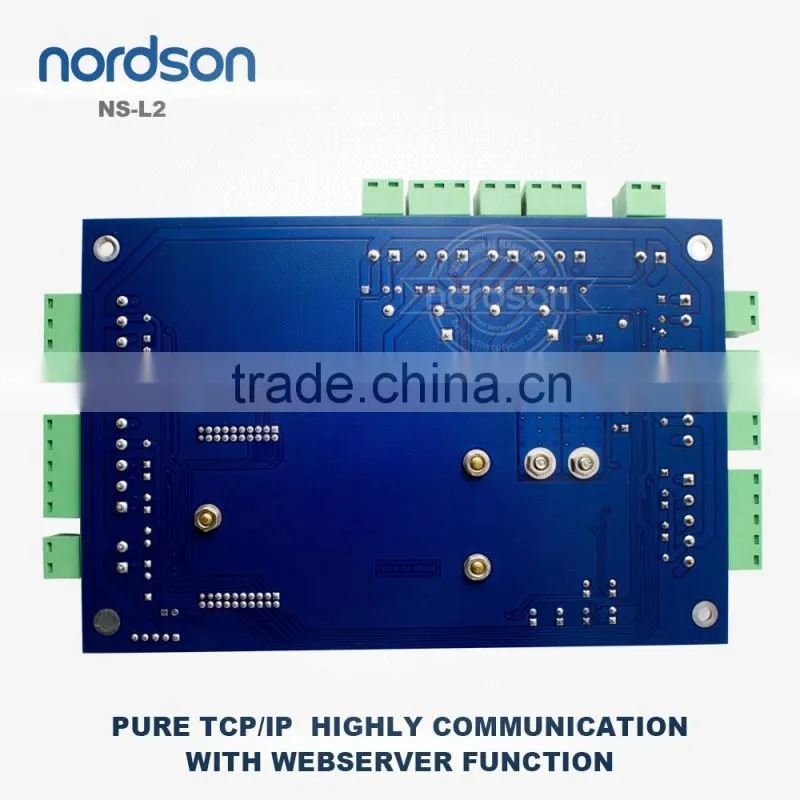

Pure TCP/IP highly communication
More Optimized and advanced communication speed, communication quality and real-time communication!
Door controled: 1
Readers can connected: 2pcs

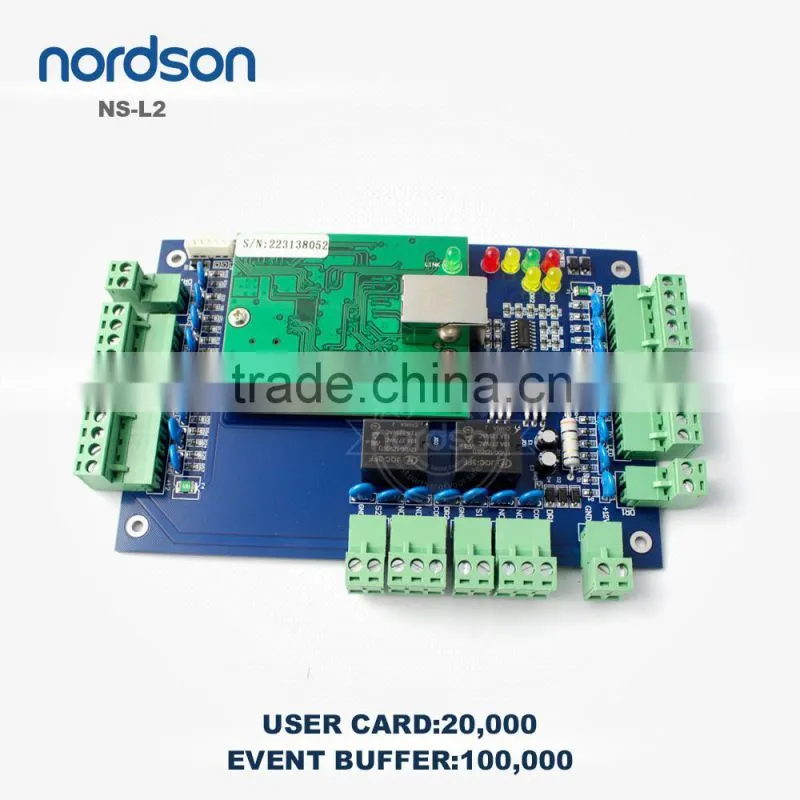

Control of Memory up to 20,000 Users / up to 100,000 Event Buffers
Network Communication via TCP/IP
English Software supportable database:SQL
NS-L2 Access System Control Specification:
| Parameter | Single Access Control Board | Two-door Access Control Board | Four-Door Access Control Board | ||
| Model # | NS-L1 | NS-L2 | NS-L4 | ||
| Communication | TCP/IP 10M/100M adaptive | ||||
| *old model M100 RS485 communications can be customized | |||||
| Size of PCB board | 160mm *106mm | 160mm *106mm | 218mm *106mm | ||
| Size of Case | 273mm*228mm*65mm | ||||
| Power Supply | 12VDC 4-7A | ||||
| Power Consumption of Circuit Board | Less than 100mA | ||||

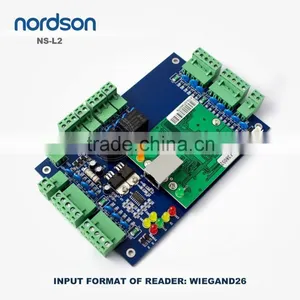

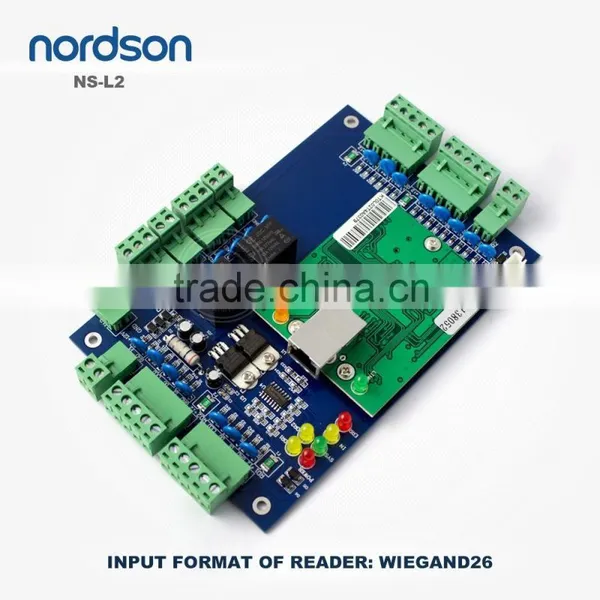

| Input Format of Reader | Wiegand 26 (All card reader with compatible protocol, such as Motorola , HID , EM ,Mifare one etc) | ||||
| Quantity of Readers | 1pair | 2 pairs | 4 pcs | ||
| Door Controled | 1pair | 2 pairs | 4 pcs | ||
| Door opening time extending setting | 1-600 seconds(adjustable) | ||||

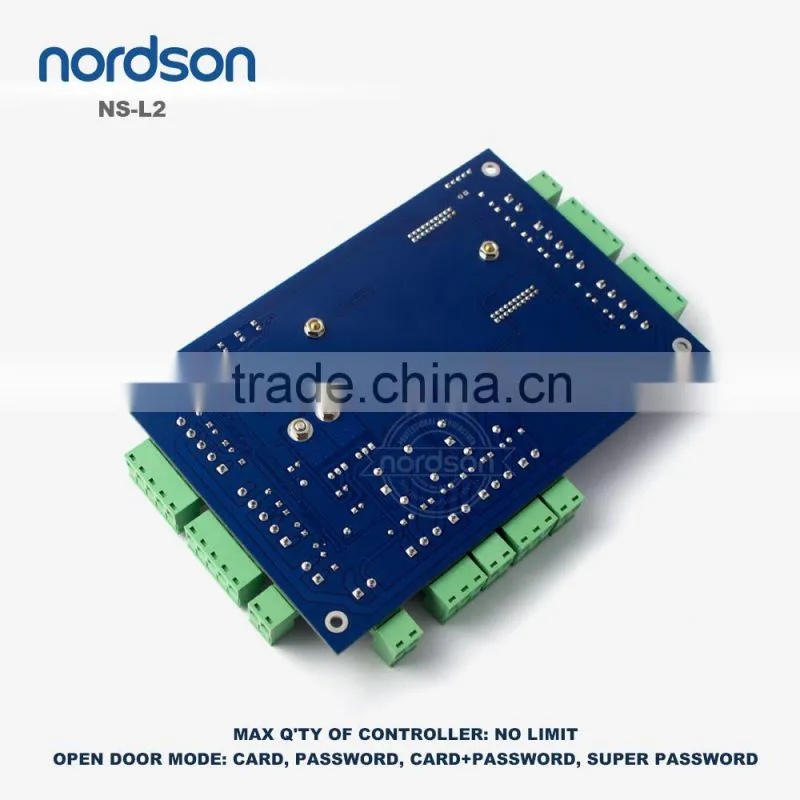

| Max q ' ty of controller | No limit | ||||
| --- | Remark: N denotes q ' ty of computer serial prot or q ' ty of 485hub port, support 256pcs ports | ||||
| Operation Temperature | - 40 C~70 C | ||||
| Operation Humidity | 10-90 % RH , No Condensation | ||||
| Q ' ty of users | 20,000 Users | ||||
| Q ' ty of Event Buffers(offline) | 100,000 event buffers | ||||
| Power interruption protection measure | High Speed Memory, Records never lose | ||||
| Max Distance from Reader to Controller | 100m (suggestion distance 80m) | ||||
| Max Distance between Controllers | RS232: Communication Distance less than 13m, suggestion distance is 3m or less | ||||
| RS485: bus line max length 1200m, suggestion length 1000m or less, if expansion device added, the distance could be 3000m | |||||
| TCP/IP: Depends on net coverage area | |||||
| Collocations | PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton | ||||
| Alarm for long time door open, ilegal break in, intimidate | Yes | ||||
| Fire and alarm linkage | If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm |
||||
