Z5045C/1 small vertical drilling machine
USD $800 - $1,500
/ Set
1 Set(Min.Order)
- 50 Set / Sets per Month
- Shanghai
- T/T Credit Card
You May Like
- Vertical Facing And Centering Machine VZ820550
- CNC Cylindrical Grinding Machine MA2060/MP2060
- Inner Race Milling Machine QYXB125
- grey color interlocking kelly bar, drill pipe for Bauer Sany Soilmec XCMG Casagrande
- Friction kelly bar,yellow color kelly bar for rotary Bauer Sany Soilmec XCMG Casagrande
- new design friction kelly bar, Rotary drill pipe for Bauer Sany Soilmec XCMG Casagrande
Product Details
Condition: | New | CNC or Not: | Normal | Drilling Speed: | 80-1250 r.p.m |
Place of Origin: | Jiangsu, China | Brand Name: | Linuo | Model Number: | Z5045C/1 |
Voltage: | 380V | Power(W): | 1.5KW | Dimension(L*W*H): | 1850*750*1000mm |
Weight: | 442KG | Certification: | CE,ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.Z5045C/1 small vertical drilling machine2. Drilling capacity:45mm
3. Spindle travel:130mm
4.CE

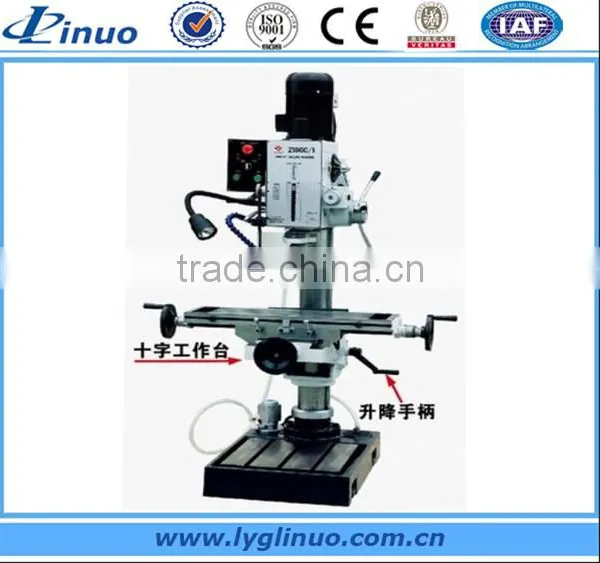

Z5045C/1 small vertical drilling machine
Features:
Technical Data
SPECIFICATION | |||
ITEM | Z5032C/1 | Z5040C/1 | Z5045C/1 |
Max.drilling capacity | 32mm | 40mm | 45mm |
Spindle taper | M.T.3 or R8 | M.T.4 | M.T.4 |
Spindle travel | 130mm | 130mm | 130mm |
Step of speed | 6 | 6 | 6 |
Range of spindle speed 50Hz | 80-1250 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m |
60Hz | 95-1500 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m |
Step of spindle auto-feeding | 6 | 6 | 6 |
Range of spindle auto-feeding amount | 0.06-0.30mm/r | 0.06-0.30mm/r | 0.06-0.30mm/r |
Min.distance from spindle axis to column | 290mm | 290mm | 290mm |
Max.distance from spindle nose to worktable | 700mm | 700mm | 700mm |
Max.distance from spindle nose to stand table | 1125mm | 1125mm | 1125mm |
Max.travel of headstock | 250mm | 250mm | 250mm |
Swivel angle of headstock(horizontal) | 360° | 360° | 360° |
Max.travel of worktable bracket | 600mm | 600mm | 600mm |
Worktable size | 730×210mm | 730×210mm | 730×210mm |
Forward and afterward travel of worktable | 205mm | 205mm | 205mm |
Left anf right travle of worktable | 500mm | 500mm | 500mm |
Vertical travel of worktable | 570mm | 570mm | 570mm |
Size of stand worktable of avaliability | 417×416mm | 417×416mm | 417×416mm |
Motor Power | 0.75KW(1HP) | 1.1KW(1.5HP) | 1.5KW(2HP) |
Voltage/Frequency | As customer's requirement | As customer's requirement | As customer's requirement |
Motor speed | 1400 r.p.m | 1400 r.p.m | 1400 r.p.m |
Cooling pump power | 0.04KW | 0.04KW | 0.04KW |
Net weight/Gross weight | 437kg/500kg | 442kg/502kg | 442kg/505kg |
Packing size | 1850×750×1000mm | 1850×750×1000mm | 1850×750×1000mm |
Loading amount | 18pcs/20'container | 18pcs/20'container | 18pcs/20'container |
