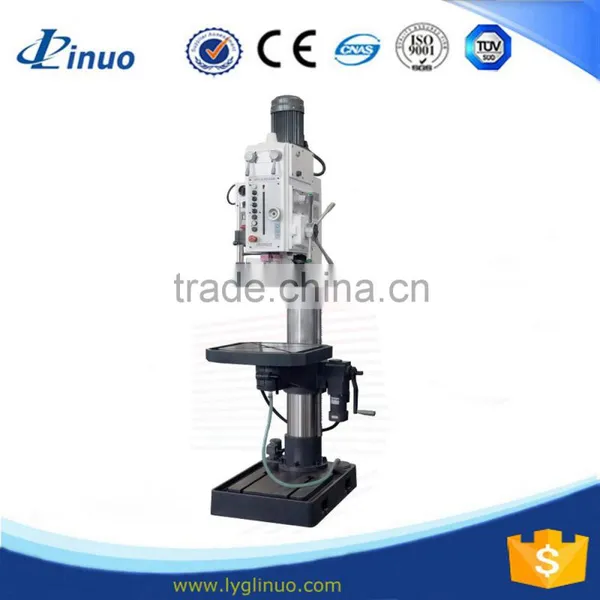

Z5050 super vertical drilling machine
Product Description for Z5050 super vertical drilling machine
This machine is designed for drilling,counterboring,reaming,tapping,spotfacing,etc. The maximum drilling is 50mm on small or middle sized workpieces. It is widely used in machine works and repair shops for single piece or small lot production,having the features of abundant horsepower and high rigidity when compared with all the others of its kind at home and abroad.
Model |
Z5040/40A |
Z5050 |
Maximum drilling diameter |
40mm |
50mm |
Max Spindle travel |
180mm |
230mm |
|
Distance from the spindle center to the surface of vertical column |
350mm |
375mm |
|
Maximum distance from spindle nose to working table |
780mm |
800mm |
|
Maximum distance from spindle nose to base plate working surface |
1320mm |
1300mm |
Spindle taper |
MT4 |
MT4 |
Spindle speed range |
50-1450(r/min) |
54-2090 (r/min) |
Width of T slot |
18mm |
18mm |
Distance of T slot of base |
150mm |
280mm |
Working table size |
560*385mm/560*560mm |
600*600mm |
Base table size |
730*500mm |
860*600mm |
Range of feed |
0.1,0.2 |
0.05,0.1,0.15,0.2,0.25,0.3 |
Main motor power |
0.85/1.5kw |
3.0/2.4kw |
Cooling pump motor |
60W |
40W |
GW / NW (kg) |
545Kg/465Kg |
920Kg / 820Kg |
Packing size (cm) |
113*70*228cm |
114cm*75cm*258cm |
- work light.
- Coolant system.
- Drill chuck and arbor
- Fender device
- Tool box & tools 1 set.
- Auto feed
- Drill vice
- Lifting worktable by motor(only for model Z5050)
Customer&Expo for Z5050 super vertical drilling machine
Companny information for Z5050 super vertical drilling machine
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines,bandsaw machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for Z5050 super vertical drilling machine
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
