mf22 hydraulic motor for concrete mixer

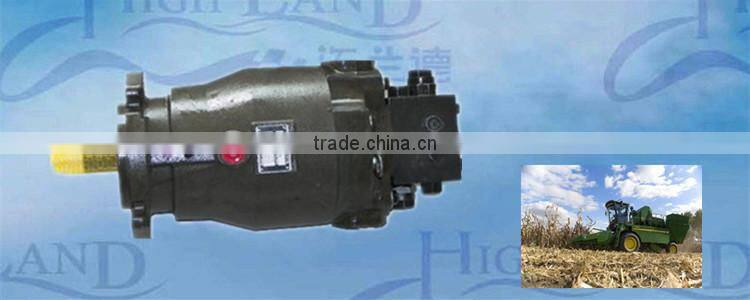

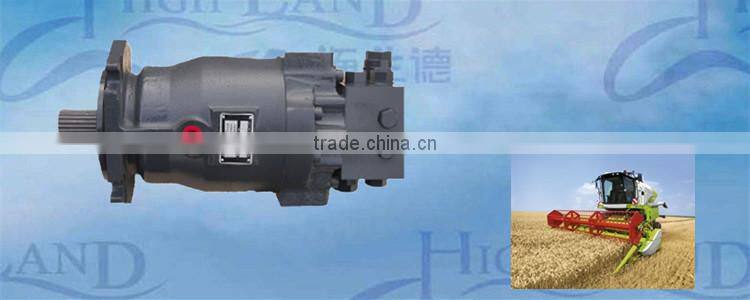

High quality mf22 hydraulic motor for concrete mixer
Features of hydraulic motors:
- Heavy duty hydraulic piston motor
- Completely interchangeable with original
- Widely applicable for agriculture machinery, engineering machinery, mining machinery,industrial machinery, aviation and transport machinery etc.
- The hydrostatic hydraulic transmission drive in close system, consisting of PV20/21/22/23/24 series heavy duty piston pump and motor can work continuously with pressure 21Mpa under max. Speed.
- Peak pressure of system is up to 35Mpa, and min. pressure is 0.9Mpa higher than housing pressure.
- Max. housing working pressure is 0.28Mpa.
- Set pressure of charging relief valve of pump and motor are respectively 1.31-1.45Mpa and 1.10-1.24Mpa higher than housing pressure, and max. oil temperature is 80°C
Technical Data:
| Models of hydraulic motors |
MF20 | MF21 | MF22 | MF23 |
| Max. Displacement( ml/r) | 33.3 | 51.6 | 69.8 | 89.0 |
| Max. Speed( r/min) | 3590 | 3500 | 2810 | 2590 |
| Out torque at 35Mpa(Nm) | 176 | 180.6 | 369 | 471 |
| Rated Pressure(Mpa) | 21 | 21 | 21 | 21 |
| Weight(Kg) | 30 | 34 | 40 | 47 |
Packaging:
Wooden cases package in container, suitable for long distance transportation;
According to costomers' requirements.
Shipping:
By sea;
By air;
According to your request.
Paver,
Harvester,
Grain Drill,
Road Roller,
Corn Harvester,
Wheat Harvester,
Reaping Machine,
Rice Transplanter,
Concrete Mixing Truck,
Pharmaceutical Machinery,
Continous Soil Mixing Machine,
and other heavy construction machinery.
Brief Introduction:
High Land Hydraulic Pump Co., Ltd is a professional and high-tech enterprise. The company boasts solid technical strength,
scientific management, advanced production testing equipment.
By researching and designing hydraulic breakdown diagnosis equipment and learning advanced technology from similar
international equipment, the company has developed high-level hydraulic chechout gauges and comprehensive testing tables
among portable hydraulic testing series. The key parts of pump and motor accessories are made of imported raw-material and
hydraulic comprehensive testing tables are exported to different countries.
The company is well-known for its technology of hydraulic system checkout and hydraulic pump repair. Due to considerate
service, advanced technology and timely guarantee, the company is warmly welcomed by customers at home and abroad.
View of Our Factory
Exhibition Show:
If any products interest you,please don't hesitate to send us your inquiry,we will give you our best and favourable reply!
Any question,please feel free to contact me.
