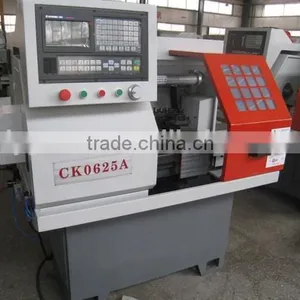

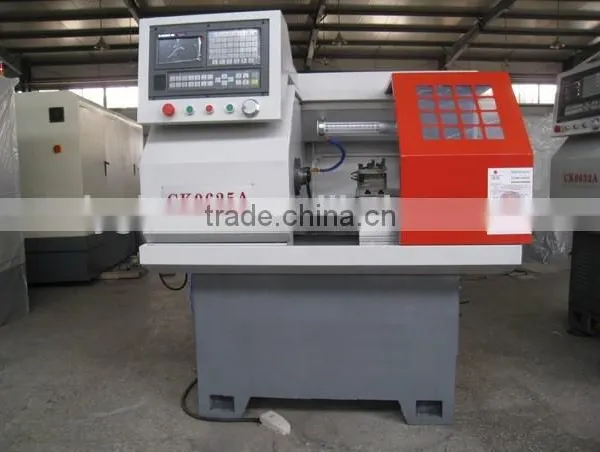

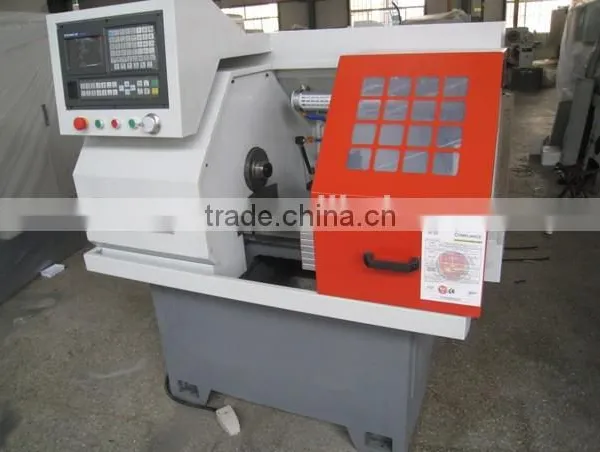

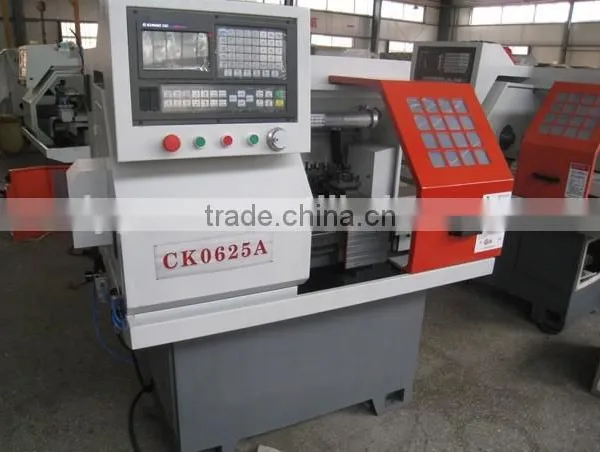

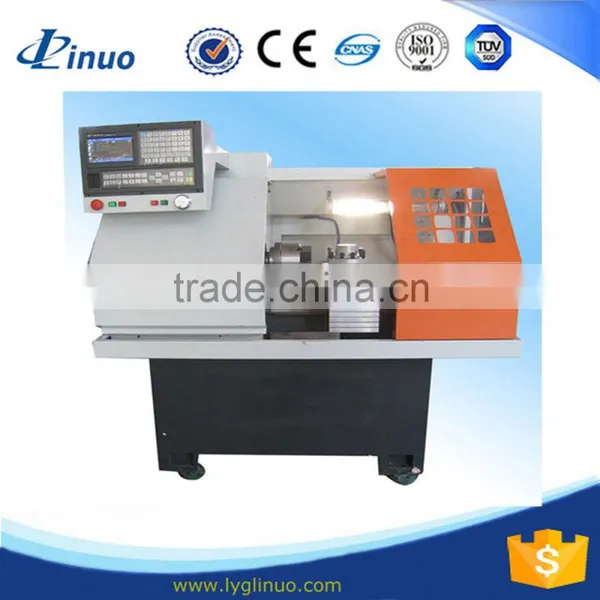

CK0625A economic small cnc lathe dealer
- 50 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- CK210B Small CNC Lathe, Siemens CNC, training cnc, cnc trainer, school cnc, training cnc
- CK210B Small CNC Lathe, servo motor, training cnc, cnc trainer, school cnc, training cnc
- CK210B Small CNC Lathe, servo motor, training cnc, cnc trainer, school cnc, training cnc
- TP 35/45 Series Parallel Double Spindle Turning Center
- WF-450QTN Line Rail Inclined Bed Turret Lathe
- Prototype CNC Lathe ,CNC Turning Lathe Machines,mini lathe,CNC lathe,rolling cnc milling,hobby cnc lathe,DIY CNC lathe
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | CNC |
Automatic Grade: | Automatic | Max. Swing Diameter: | 160mm | Place of Origin: | Jiangsu, China |
Brand Name: | linuo | Model Number: | CK0625A | Voltage: | 380V |
Power(W): | 2.2kw | Dimension(L*W*H): | 1500*950*1500mm | Weight: | 850kg |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
CK0625A economic small cnc lathe dealer
Product Description for CK0625A economic small cnc lathe dealer
•Machines were controlled by Mach3 High speed, efficiency and stable performance.
•longitudinal and cross feeds are effected by ball leadscres driven by mixed type step motor.

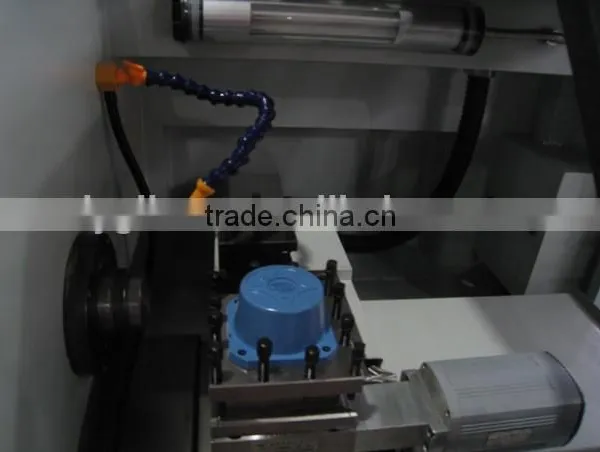

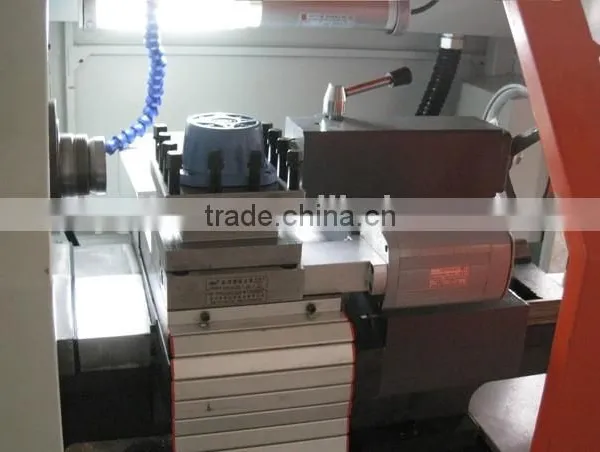

•4-way electrical tool post with auto tool position.
Standard accessories | optional accessories |
1. GSK 928 CNC controller | 1. GSK980, FANUC or SIEMENS CNC controller |
2. penumatic spring clip | 2. Pneumatic chuck, hydraulic chuck |
3. Electric Lubrication | 3. 4 positions tool post |
4. gang-type tool carrier | 4. pneumatic tailstock, hydraulic tailstock |
5. Work light | 5. Spring fastener |
6. Foundation pads | 6.auto feeder |
7. coolant | 7. other |
8. manual tailstock |
|
9. User's Manual, Operational Manual |
|
Item |
Unit | Specifications |
| ||
CK0625A | CK0632A | CK0640A | |||
Max. rotation diameter over bed | mm | Φ160 | Φ230 | Φ250 |
|
Max. rotation diameter over pallet | mm | Φ60 | Φ80 | Φ100 |
|
Max. workpiece length | mm | chuck120 |
Collet200/Chuck120 |
Collet200/Chuck120 | |
Spindle head form |
|
| A2-5 | A2-5 |
|
Spindle bore | mm | Φ33 | Φ40 | Φ48 |
|
Trombone hole diameter | mm | Φ25 | Φ32 | Φ40 |
|
width of bed
| mm | 220 | 260 | 260 |
|
X/Z repeat positioning accuracy | mm | 0.012/0.013 |
| ||
X/Z maximum stroke | mm | 200/180 | 260/240 | 260/240 | |
X/Zfast-moving feed | mm/min | 5000/8000 |
| ||
Spindle speed range | r/min | 150-2200 |
| ||
Main motor power | kw | 2.2 | 3 | 3 |
|
Overall dimensions (L×W×H) | mm | 1500×950×1500 | 1550×1000×1500 | 1600×1000×1550 | |
Net weight | kg | 850 | 950 | 1000 |
Production&Workshop for CK0625A economic small cnc lathe dealer
Customer&Expo for CK0625A economic small cnc lathe dealer
Packaging&Shipping for CK0625A economic small cnc lathe dealer
Our services for CK0625A economic small cnc lathe dealer
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
