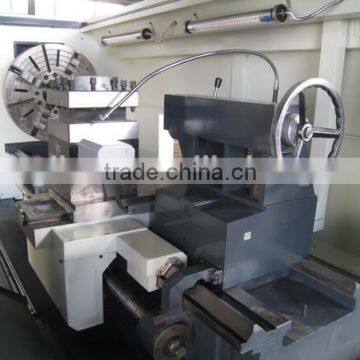

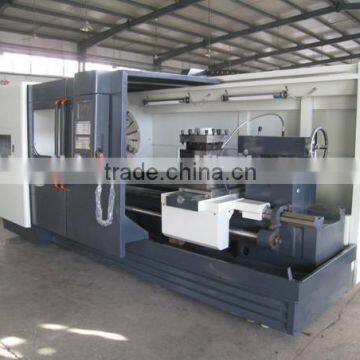

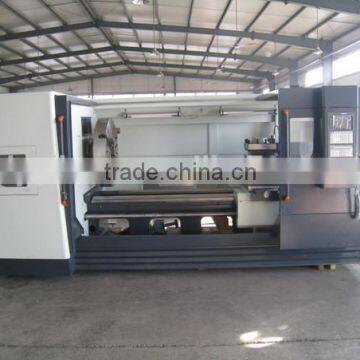

CJK61125B-2 hot sale heavy duty cnc turning lathe machine wholesaler
Product Description for CJK61125B-2 hot sale heavy duty cnc turning lathe machine wholesaler
1.Technical parameters
Item |
Project name |
Technical paramaters |
|
CJK61100B-2 |
CJK61125B-2 |
||
technical specifications |
Max.swiming over the bed dia. (mm) |
1000 |
1250 |
Max.swiming over pallet(mm) |
660 |
880 |
|
Max.the workpiece length(mm) |
1500,3000,6000 |
||
Main transmission |
Main transmission form |
Three handle to speed ; frequency conversion stepless |
|
Number of spindle speeds |
stepless |
||
Range of spindle speed(r/min) |
18~600 |
||
The form of the spindle head |
C11 |
||
Spindle taper hole |
120 1:20 |
||
Spindle bore(mm) |
Φ130 |
||
Main motor power(kw) |
15kw |
||
Feed system |
Turret maximum stroke(mm) |
X - axis: 530 |
X - axis: 650 |
Z - axis: 1650,3100,6100 | |||
Fast-moving feed(mm/min) |
X - axis:4000 Z - axis:5000 |
||
Repeat positioning accuracy(mm) |
X - axis:0.01 Z - axis:0.015 |
||
Workpiece accuracy |
IT6-IT7 |
||
Workpiece surface roughness |
Ra1.6 |
||
Tailstock |
Dia. of tailstock quill(mm) |
Φ100 |
|
Tailstock quill stroke(mm) |
250 |
||
Taper of tailstock quill |
MT6 |
||
Tool post |
Standard accessories |
4 station electric tool |
|
Opinional accessories |
Horizontal 6 station electric turret |
||
Repeat positioning accuracy(mm) |
0.01 |
||
Section of turning tool(mm) |
30*30 |
||
Size and weight |
The size of the machine (length*width*height)(mm) |
3800/5300/8300*1920*1800 |
|
Net weight of the machine(kg) |
6000,8500,13500 |
||
2. Main features
1) Horizontal flat-bed the whole casting structure
2) Feed of X Z axis are driven by ball screw with servo-motor
3) the guideway use hyperacoustic quenching.
4) Hardended and ground bed guide way coated with Turcite-B
5) high pression ball screw, High rigid precision composite bearing structure
6) ball screw and the guide surface combination use automatic lubrication system.
3. Configuration
(1)the controller system: GSK (Guangzhou), KND (Beijing), Guangtai, Simens (Germany), Fanuc (Japan)
(2) Chuck optional: manual, pneumatic or hydraulic chuck.
(3) Tailstock optional: manual, pneumatic, hydraulic.
(4) Turret optional: Vertical four, horizontal six, horizontal eight,gang-type tool carrier and ect
(5) Lubrication configuration: automatic oil lubrication system.
Production&Workshop for CJK61125B-2 hot sale heavy duty cnc turning lathe machine wholesaler
Packaging&Shipping for CJK61125B-2 hot sale heavy duty cnc turning lathe machine wholesaler
Customer&Expo for CJK61125B-2 hot sale heavy duty cnc turning lathe machine wholesaler
Companny information for CJK61125B-2 hot sale heavy duty cnc turning lathe machine wholesaler
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for CJK61125B-2 hot sale heavy duty cnc turning lathe machine wholesaler
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
