Specifications
Advanced Tech Fingeprint Lock with USB1.Zinc alloy
2.500 Fingerprint Templates
3.EM & Mifare Card Avaliable

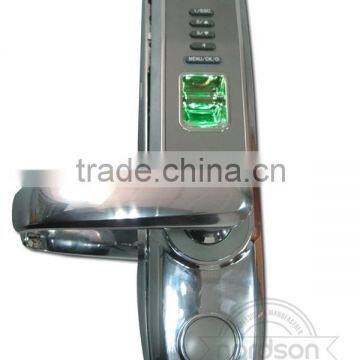

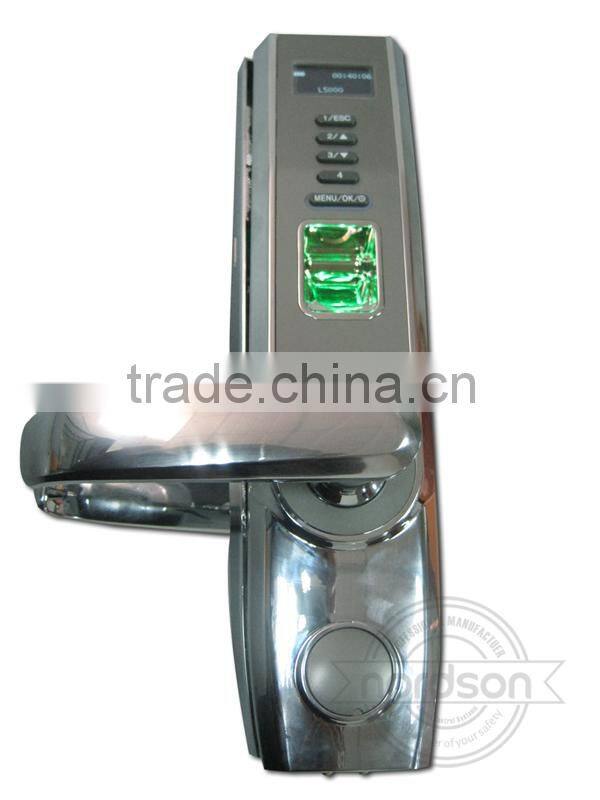

Advanced Intelligent Fingerprint Lock with OLED Display and USB Slot (L5000)
Introduction:
The fingerprint lock offers state-of-the-art single door management solution that provides you with unmatched options that comes with OLED, Standard USB interface. You can verify a person and open the door with fingerprint, password and ID/Mifare cards. The All-in-one fingerprint lock is very convenient to operate.
Enrollment and management of users are done on the OLED display. There are three user levels available to manage the system effectively - administrator, supervisor and user. An administrator or supervisor can do add, delete or change users very easily at the lock.
The USB Port for data transmission is the main feature of the lock which makes it easy to download user transactions from the lock – Professional and Intelligent.
Features:
• MULTI-FACTOR IDENTIFICATION METHODS
Supports four identification mode which includes - fingerprint, password, RFID card and mechanical key or any combination.
• RUGGED SENSOR TECHNOLOGY
Non-coating optical fingerprint sensor and cutting edge fingerprint matching technology.
• VERSATILE APPLICATION AND RELIABLE MECHANISM
Strong stainless steel bar latch - suitable both for the main entrances as well as other doors.
Keep visitor mode in Unlock-status if it is activated.
• ROBUST MECHANICAL STRUCTURE
Pure stainless steel mechanical rotating structure with nanotechnology, which makes it last for many years under normal usage.
• EASY INSTALLATION AND OPERATION
No wiring required – Standalone installation. Data transfer to and from PC can be done using USB flash disk. User registration and various settings can be done directly at the lock using OLED display.
• EXTENDED BATTERY LIFETIME

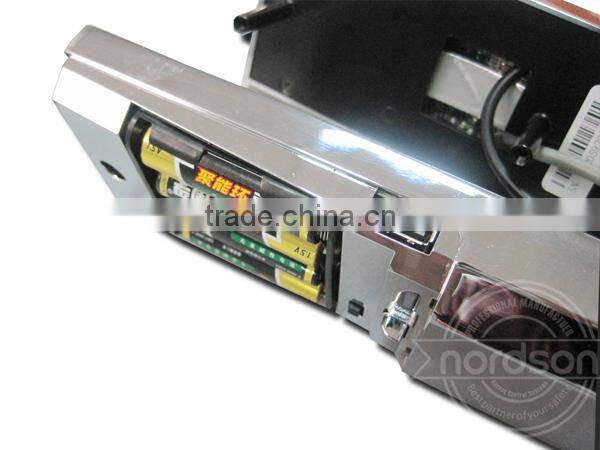

Lock is powered by four standard alkaline 1.5 V batteries which can last up to 5,000 unlocking activities. The OLED display will show the status of the batteries power level.
Specifications:
Model |
L5000 |
Material |
Zinc Alloy |
Front Panel Colors |
Black, Red, Blue |
Display |
OLED |
Fingerprint Sensor |
Optical Sensor |
Resolution |
500 Dpi |
Storage |
|
• Fingerprint Capacity |
500 Templates |
• Password Capacity |
100 |
• Event Capacity |
30,000 |
ENROLLMENT & VERIFICATION |
|
• Methods |
Fingerprint (1:1, 1:N), Password & Card |
• FAR |
< 0.0001% |
• FRR |
< 1% |
• Lenght of Password |
6~10 Digit |
Card Technology |
|
• Proximity: 125KHz |
Optional |
• Mifare: 13.56MHz |
Optional |
Communication Model |
|
• Method |
USB flash disk |
Operating Environment |
|
• Temperature |
0°C ~ 45°C |
• Humidity |
20 %~ 80% |
• Power Input |
4*1.5V AA Battery |
• Low Battery Warning Voltage |
< 4.8V |

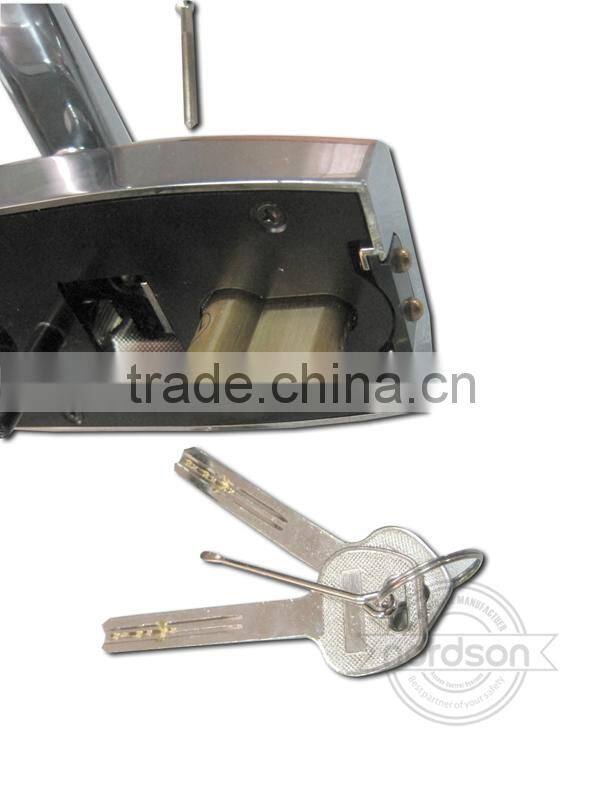

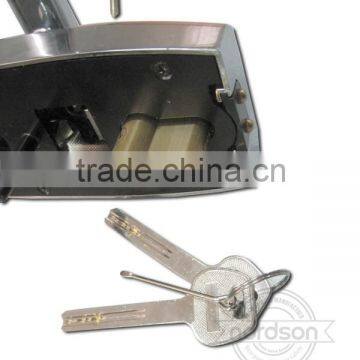

Backup Unlock Mechanism |
Emergency battery & Mechanical key |
Product Dimension |
315*78*38mm (L*W*H) |
