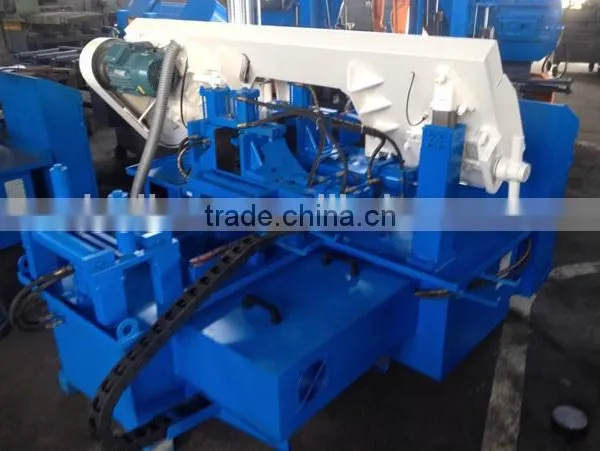

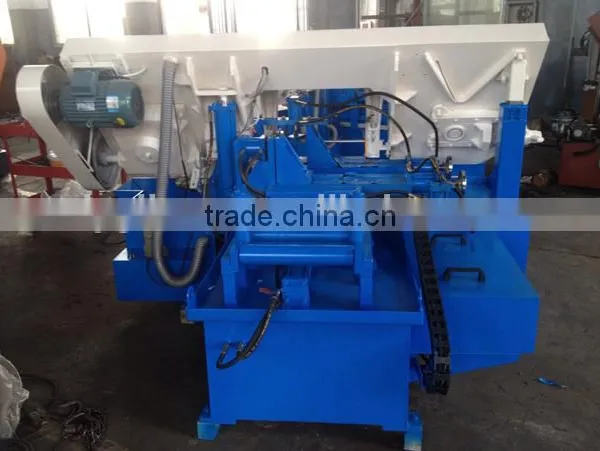

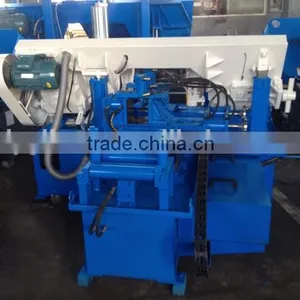

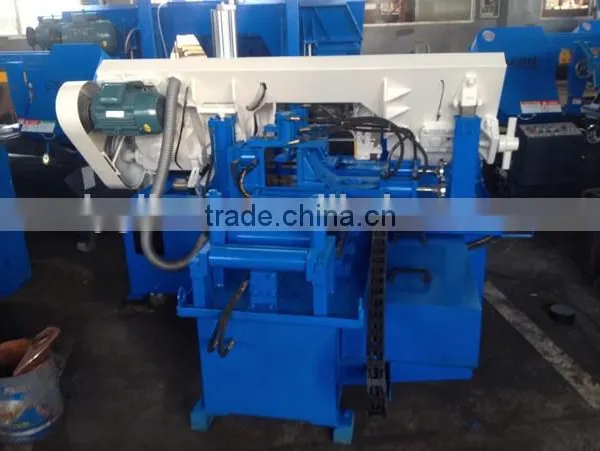

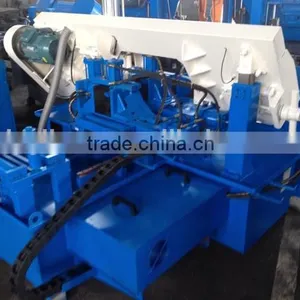

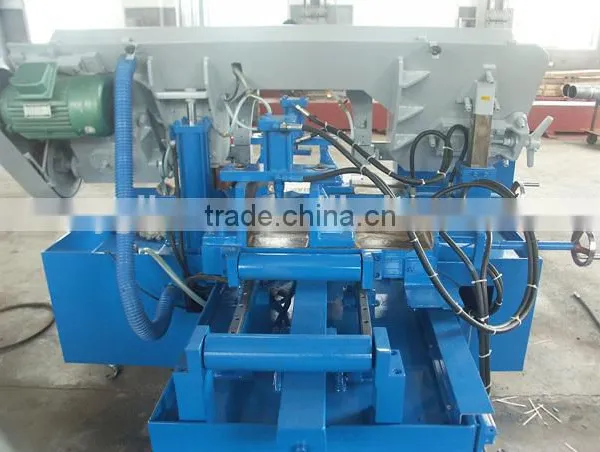

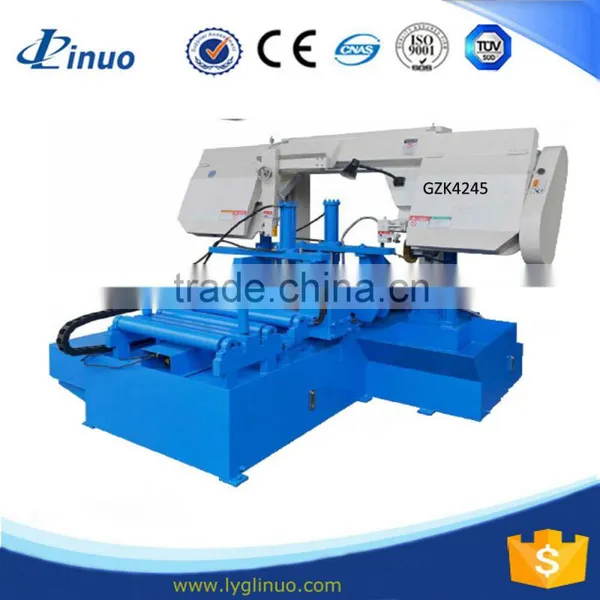

GZK4245 automatic metal cut bandsaw machine
Product Description for GZK4245 automatic metal cut bandsaw machine
1. Human machine interface (HMI) instead of traditional control panel, and sawing parameters are set in figures.
2. PLC (programmable logic controller) for flexible setting and change of sawing modes.
3. CNC Full-automatic Metal Band saw machine Mainly used for cutting various kinds of ferrous metal and non-ferrous metal.With the advantages of narrow saw cut,saving material , energy-saving , the structure of the machine tools is reasonable and reliable performance and high precision .
4. Adjustable method of knife feeding speed: Belt speeding with hydraulic pressure Max.length of one-way
|
Type Specification |
Unit |
GZK4240 |
GZK4245 |
GZK4250 |
Max. Cutting Diameter |
mm |
Round: Φ400 Plate:400*450 |
Round: Φ450 Plate:450*700 |
Round: Φ500 Plate:500*700 |
Blade Speed |
m/min |
20,30,37,53 |
12-60 (Stepless Speed) |
30,45,55,80 |
Blade size |
mm |
1.1*41*4740 |
1.1*41*5500 |
1.3*41*5720 |
Vice clamping |
|
Hydraulic |
||
Feeding cut adjust way |
|
Hydraulic stepless |
||
Feeding way |
|
Automatic |
||
|
Main motor power |
kw |
4 |
4 |
4 |
Hydraulic |
kw |
1.1 |
1.5 |
1.5 |
Coolant pump |
kw |
0.08 |
0.085 |
0.085 |
|
Machine Size (L*W*H) |
mm |
2370*1700*1620 |
2370*2100*1750 |
2800*2300*2030 |
Weight |
kg |
1800 |
1900 |
2000 |
Production&Workshop for GZK4245 automatic metal cut bandsaw machine

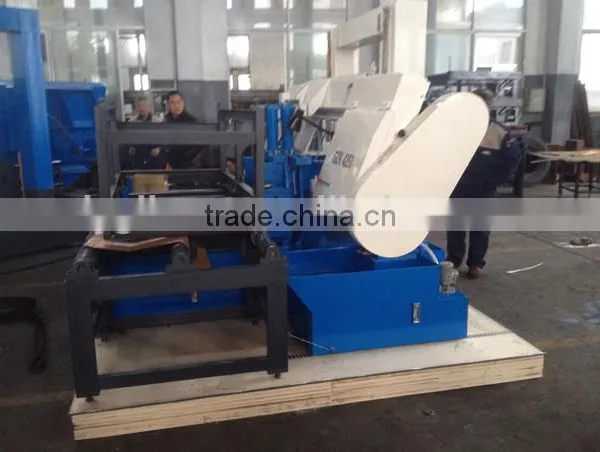

Packaging&Shipping for GZK4245 automatic metal cut bandsaw machine
Customer&Expo for GZK4245 automatic metal cut bandsaw machine
Companny information for GZK4245 automatic metal cut bandsaw machine
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines,bandsaw machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for GZK4245 automatic metal cut bandsaw machine
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
